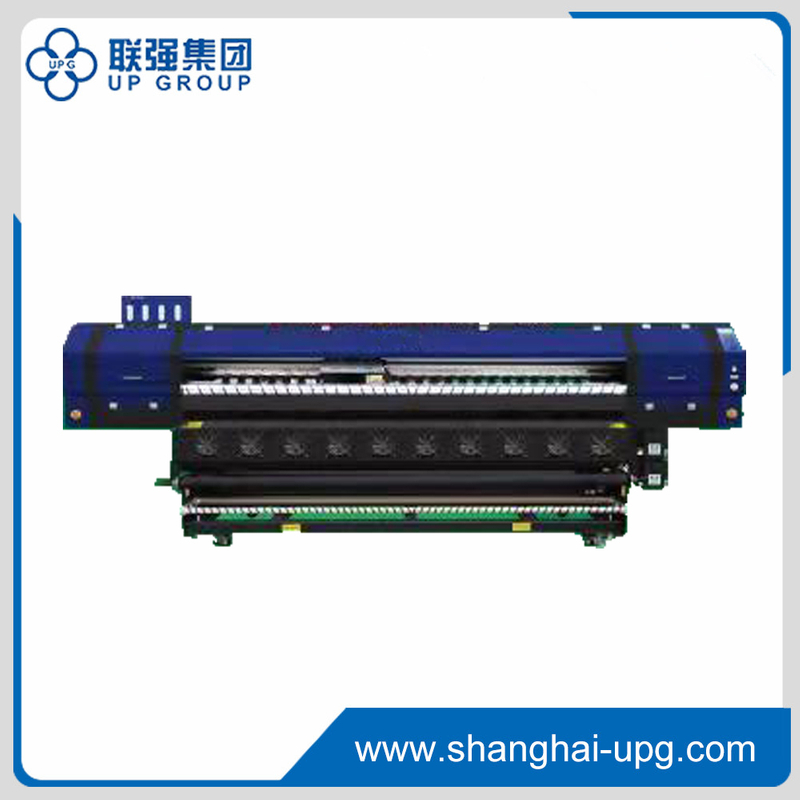

LQ-MD 5328E
UPG
LQ-MD 5328E
· High Precision Printhead:Adopt Epson I3200-A1 with 3200 nozzles,which can improve the printing speed greatly.
· High-end Software: Using international high-end software, the drawing is more realistic.
· Intelligent Ink Starving Alarm:Reduces the tediousness of frequently checking the remaining amount of ink, and at the same
time reminds to add ink in time to ensure the continuity of printing work.
· Intelligent Foggy Printing & VSDT Printing: Unique two-dimension intelligent foggy and wave-foggy function, and VSDT variable
droplet techonology, improve printing quality obviously.
· Using Advanced Capping Station:Equipped with advanced intelligent printhead cleaning and moisturizing device, providing safe
and convenient printhead cleaning and maintenance functions, more convenient operation and maintenance.
· Stable Media Feeding and Take-up System:Convenient and fast, the printing media is quickly stored, equipped with automatic paper
· measurement and anti-rubbing function, the consumables are warped, printing is automatically paused to prevent scratching the printhead
· High Precision Printhead:Adopt Epson I3200-A1 with 3200 nozzles,which can improve the printing speed greatly.
· High-end Software: Using international high-end software, the drawing is more realistic.
· Intelligent Ink Starving Alarm:Reduces the tediousness of frequently checking the remaining amount of ink, and at the same
time reminds to add ink in time to ensure the continuity of printing work.
· Intelligent Foggy Printing & VSDT Printing: Unique two-dimension intelligent foggy and wave-foggy function, and VSDT variable
droplet techonology, improve printing quality obviously.
· Using Advanced Capping Station:Equipped with advanced intelligent printhead cleaning and moisturizing device, providing safe
and convenient printhead cleaning and maintenance functions, more convenient operation and maintenance.
· Stable Media Feeding and Take-up System:Convenient and fast, the printing media is quickly stored, equipped with automatic paper
· measurement and anti-rubbing function, the consumables are warped, printing is automatically paused to prevent scratching the printhead
| Model | LQ-MD 5328E | LQ-MD 53215E |
| Printing Size | 1900mm | |
| Printhead Type and Numbers | 8 EPSON Original I3200-A1 Heads | 15 EPSON Original I3200-A1 Heads |
| Max Resolution | 3200dpi | |
| Max Materials Input Size | 3200mm | |
| Ink Color | Double CMYK | |
| Ink Type | Water-Based Ink, Pigment Ink | |
| Ink Supply Type | BuIk Ink System | |
| RIP Software | MAINTOP 6.0, PHOTOPRINT, ONYX, NEOSTAMPA | |
| Interface | Gigabit Port | |
| Print File Format | BMP, TIF, JPG, PDF Etc. | |
| Drying System | Extra Front Heating System | |
| System Supported | Above Windows 7 | |
| Materials Feeding Method | Roll to Roll, Leaf | |
| Color Management | ICC Based; Density & Curves Adjustable | |
| Power Supply | 50Hz/ 60Hz, 220V, 210-230 VAC | |
| Package Dimension (L×W×H) | 5280×1180×1770mm | 5280×1180×1770mm |
| Machine Dimension (L×M×H) | 5140×1350×1850mm | 5760×1450×1850mm |
| Gross. Weight | 400kgs | |
| Working Environment Temperature | 18-35℃ | |
| Working Environment Humidity | 35-65%Rh | |
| Printing Speed | 1pass: 420 m2/h | 1pass: 720 m2/h |
| 2pass: 210 m2/h | 2pass: 370 m2/h | |
| Transport Package | Wooden Box for Free Fumigation | |
| Rip Software | Maintop 6.0, Photoprint, Onyx, Neostampa | |
