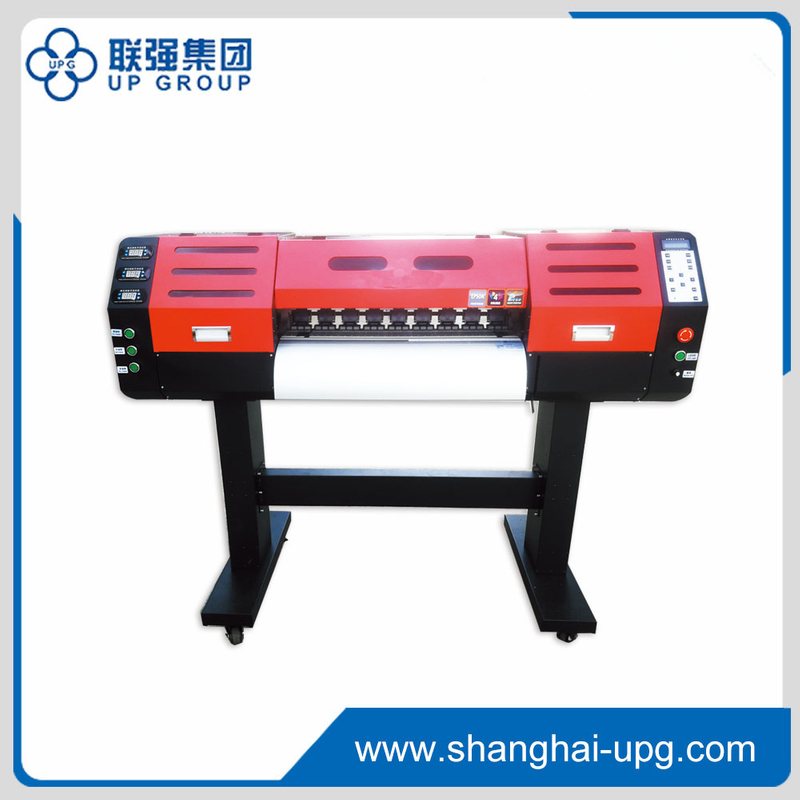

LQ-MD 7020DH
UPG
LQ-MD 7020DH
· LED touch screen, more convenient operation
· Precision milling aluminum beam lifting, beam lifting precision is high
· White ink stirring
· Automatic height measurement
· Automatic lifting and cleaning
· Original maintop software
· Stainless steel ink stack, corrosion resistance, long service life
· Machine working window. Easy to see inside
· There are handles around the machine, user-friendly design, easy for the machine to move
· Free accessory packs
· A small fan is installed on the trolley board card to cool down the board card and prolong the service life of the board card
· Heating function of head, ( head has temperature requirements, such as in extremely cold areas, use this function to facilitate ink fluency)
· All aluminum nozzle bottom plate
Product solution: We have a team of engineers, contact engineers if you have any after sales service
Instructions: We'll send a USB flash drive along with the machine, with all the software and instructional videos
Maintenance: Frequent use of machinery
After-sales service: We will give away a spare parts package for free, which will help customers with after-sales service. Warranty: 13months
· LED touch screen, more convenient operation
· Precision milling aluminum beam lifting, beam lifting precision is high
· White ink stirring
· Automatic height measurement
· Automatic lifting and cleaning
· Original maintop software
· Stainless steel ink stack, corrosion resistance, long service life
· Machine working window. Easy to see inside
· There are handles around the machine, user-friendly design, easy for the machine to move
· Free accessory packs
· A small fan is installed on the trolley board card to cool down the board card and prolong the service life of the board card
· Heating function of head, ( head has temperature requirements, such as in extremely cold areas, use this function to facilitate ink fluency)
· All aluminum nozzle bottom plate
Product solution: We have a team of engineers, contact engineers if you have any after sales service
Instructions: We'll send a USB flash drive along with the machine, with all the software and instructional videos
Maintenance: Frequent use of machinery
After-sales service: We will give away a spare parts package for free, which will help customers with after-sales service. Warranty: 13months
Model | LQ-MD 7020DH |
Printhead | EPS 3200×2PCS |
Ink color | 4 color (K,C,M,Y)+W |
Capping width | Automatic up and down capping system |
Printing width | 70cm |
Resolution | 720×2880dpi |
Speed | High speed: 16㎡/h Product speed: 13㎡/h Precision speed: 10㎡/h |
Data Interface | Gigabit Network Date transfer |
Working Environment | Temperature: 20-25℃ Humidity: 40-60% |
Power | 50-60Hz, AC220V (±10%) |
Computer sys. | Windows7, Windows8, Windows10 |
Machine size | 1630×780×1300mm |
Model | LQ-MD 7020DH |
Printhead | EPS 3200×2PCS |
Ink color | 4 color (K,C,M,Y)+W |
Capping width | Automatic up and down capping system |
Printing width | 70cm |
Resolution | 720×2880dpi |
Speed | High speed: 16㎡/h Product speed: 13㎡/h Precision speed: 10㎡/h |
Data Interface | Gigabit Network Date transfer |
Working Environment | Temperature: 20-25℃ Humidity: 40-60% |
Power | 50-60Hz, AC220V (±10%) |
Computer sys. | Windows7, Windows8, Windows10 |
Machine size | 1630×780×1300mm |
