LQ-MD UV330
Introduction

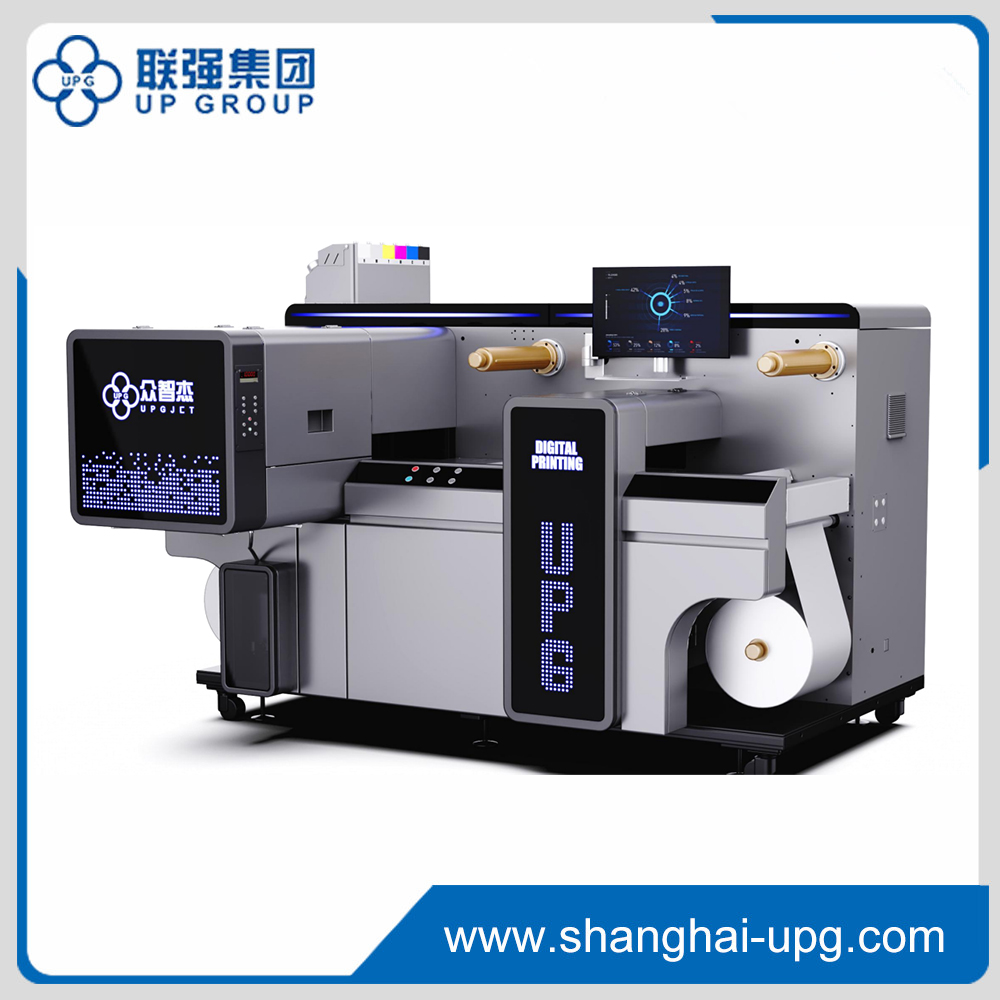

LQ-MD UV330 is an all-in-one UV scan type printer with in-line cutting machine. It offers high-precision printing via scanning, with high color fidelity and robust industrial grade design. The machine can print white, varnish, and colored UV inks on paper, adhesive materials, and flexible packaging plastic films. It also integrates downstream processes like printing, die-cutting, laminating, and slitting. This makes it a cost effective one stand solution for printing cards, small-batch production, and custom labels.

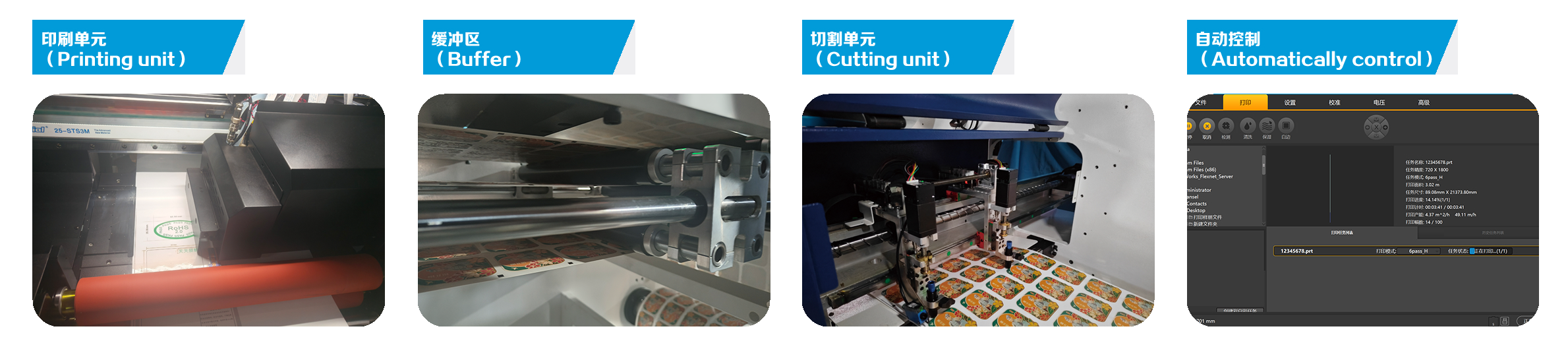

Printing unit
Equipped with 4 EPSON I3200-U1 printheads, it enables high - speed printing of four colors plus white and gloss varnish, enhancing label texture and visual appeal. It handles both small and large orders with ease.
Buffer
The buffer stores label design data in real time and auto compensates for speed differences between printing and cutting, preventing film stretching, deformation, or wrinkle formation.
Cutting unit
The cutting unit uses servo motors controlled pressure, eliminating manual adjustment, reducing downtime, and boosting aproduction efficiency.
Automatically control
Self-developed interface enables color, speed, and database integration, making the entire process easy to learn and operate.
Feature
Integrated Versatility: One Machine, Infinite Possibilities. LQ-MD UV330 combines printing, laminating, cutting, and slitting in one device, simplifying and enhancing your production process.
Excellent Printing Performance: Whether it's white, varnish, or colored UV inks, the LQ-MD UV330 provides excellent printing effects on various media, making your labels stand out on the shelf.
High precision cutting: With ball screws and independent servo motors, it achieves ±0.05mm cutting accuracy for flawless labels.
Wide Range of Applications: From food packaging to electronic product identification, from cosmetic labels to industrial data encoding, the LQ-MD UV330 can easily handle it all.
Application
Company Profile:
Superior:
A trading brand enterprise which is invested by industry and joint industry and trade.
ShangHai UPG International Industry & Trade Group Co., Ltd. is a professional trading company which is invested by UP Group's key branch enterprises together, the company has become the most active and influential brand in the printing and packaging machinery industry in China.
We own high efficiency, high quality, stable and professional trade working team.
In the long-term practice of trading, we foster and establish a multilingual, professional, high diathesis and qualification staff team, which form the biggest and most powerful trading enterprises in this industry. Among our working team, 97% obtain the associate degree and bachelor degree, 40% own intermediate level professional titles, master degree or above.
We adhere the philosophy that "over-value service, pioneering and pragmatic, and Win-win cooperation".
We start from innovation system, improve the institutional mechanism, gradually cultivating and forming a value pursuit, and enterprise culture which specialize in "Honest and trustworthy, Diligent and promising, Pursue excellence and efficiency, over-value service". We always ensure the quality of the products and service, establish long-term and stable relations of cooperation with domestic suppliers as well as our foreign customers for mutual benefits.
Superiority of abundant resource, matching into a line, high optionality.
We centred on printing machinery manufacturing and have established long term strategic collaborations with more than 50 cost-effective, high quality and reputation brand enterprises and factories, which cover printing and packaging, food and pharmaceutical packaging, printing consumables and rubber& plastic machinery, and form a multi-category, multispecies and multilevel integrated superiority and provide a convenient service channel for foreign customers.
Well planned, high input, extensive coverage exhibition publicity.
The huge investment of more than 20 international professional exhibitions and more than one billion sales amount per year make our company known overseas and be of high reputation in domestic and abroad market.
Strengthen channel building, service to global customers, multiple trading strategic pattern.
Through several years' effort, we have exported products to more than 80 countries (not only Asia but also Europe, Africa, South America, North America and Oceania) and have established long term strategic collaborations with distributors and sales channels in more than 40 countries and regions, which play an important role for open foreign market and maintain service terminal clients.
Our Customers:
Exhibitions:
Export Markets:
UP Group's products have been exported to more than 80 countries.
In Southeast Asia, its products cover Thailand, Indonesia, Singapore, Malaysia, Brunei, the Philippines, Japan, Korea, Vietnam, Cambodia, India, Sri Lanka, Nepal, Dubai, Kuwait, Saudi, Syria, Lebanon, Maldives, Bahrain, Jordan, Sudan, Mongolia, Myanmar, Pakistan, Iran, Turkey and Bangladesh.
In European, its products cover Australia, New Zealand, Britain, France, Germany, Italy, Spain, Portugal, Georgians, Slovakia Finland, Poland, the Czech Republic, Russia, Ukraine, Belarus, Kazakhstan, Uzbekistan, Sweden, Bosnia, Herzegovina and Albania
In Africa, its products cover South Africa, Kenya, Ethiopia, Egypt, Morocco, Algeria, Tunisia, Madagascar, Mauritius, Nigeria, Ivory Coast, Ghana, Mali, Liberia and Cameroon.
In America, its products cover The United States, Canada, Mexico, Panama, Costa Rica, Brazil, Argentina, Columbia, Bolivia, Uruguay, Paraguay, Chile, Peru, Ecuador and Honduras.
Among these regions, we have more than 46 stable distributors and partners for many years.
Packaging and Shipping:
Our Services:
Pre-sales Service
We provide all information and materials of our products to the valuable customers and partners so as to support their business and development. We also will give a preferential price for the first few machines, the samples for the printing, packaging and consumables are available, but the freight should be borne by the customers and partners.
In-sales Service
The delivery time of the ordinary equipment is generally 30-45 days after receipt of deposit. The delivery time of the special or large scale equipment is generally 60-90 days after receipt of the payment.
After-sales Service
The quality guarantee period of the product is 13 months after leaving the Chinese port. We can provide customers with free installation and training, but the customer is responsible for round-trip tickets, local meals, accommodation and engineer allowance.
If the product is damaged due to customer's incorrect handing, the customer should bear all the costs including the costs of spare parts and freight charges etc. During the warranty period, if it is damaged caused by our manufacturing failure, we will provide all repair or replacement free of charge.
Other Service
We can design special products according to customer's requirements on various aspects, including style, structure, performance, color etc. In addition, OEM cooperation is also welcome.
Introduction
LQ-MD UV330 is an all-in-one UV scan type printer with in-line cutting machine. It offers high-precision printing via scanning, with high color fidelity and robust industrial grade design. The machine can print white, varnish, and colored UV inks on paper, adhesive materials, and flexible packaging plastic films. It also integrates downstream processes like printing, die-cutting, laminating, and slitting. This makes it a cost effective one stand solution for printing cards, small-batch production, and custom labels.
Printing unit
Equipped with 4 EPSON I3200-U1 printheads, it enables high - speed printing of four colors plus white and gloss varnish, enhancing label texture and visual appeal. It handles both small and large orders with ease.
Buffer
The buffer stores label design data in real time and auto compensates for speed differences between printing and cutting, preventing film stretching, deformation, or wrinkle formation.
Cutting unit
The cutting unit uses servo motors controlled pressure, eliminating manual adjustment, reducing downtime, and boosting aproduction efficiency.
Automatically control
Self-developed interface enables color, speed, and database integration, making the entire process easy to learn and operate.
Feature
Integrated Versatility: One Machine, Infinite Possibilities. LQ-MD UV330 combines printing, laminating, cutting, and slitting in one device, simplifying and enhancing your production process.
Excellent Printing Performance: Whether it's white, varnish, or colored UV inks, the LQ-MD UV330 provides excellent printing effects on various media, making your labels stand out on the shelf.
High precision cutting: With ball screws and independent servo motors, it achieves ±0.05mm cutting accuracy for flawless labels.
Wide Range of Applications: From food packaging to electronic product identification, from cosmetic labels to industrial data encoding, the LQ-MD UV330 can easily handle it all.
Application
Company Profile:
Superior:
A trading brand enterprise which is invested by industry and joint industry and trade.
ShangHai UPG International Industry & Trade Group Co., Ltd. is a professional trading company which is invested by UP Group's key branch enterprises together, the company has become the most active and influential brand in the printing and packaging machinery industry in China.
We own high efficiency, high quality, stable and professional trade working team.
In the long-term practice of trading, we foster and establish a multilingual, professional, high diathesis and qualification staff team, which form the biggest and most powerful trading enterprises in this industry. Among our working team, 97% obtain the associate degree and bachelor degree, 40% own intermediate level professional titles, master degree or above.
We adhere the philosophy that "over-value service, pioneering and pragmatic, and Win-win cooperation".
We start from innovation system, improve the institutional mechanism, gradually cultivating and forming a value pursuit, and enterprise culture which specialize in "Honest and trustworthy, Diligent and promising, Pursue excellence and efficiency, over-value service". We always ensure the quality of the products and service, establish long-term and stable relations of cooperation with domestic suppliers as well as our foreign customers for mutual benefits.
Superiority of abundant resource, matching into a line, high optionality.
We centred on printing machinery manufacturing and have established long term strategic collaborations with more than 50 cost-effective, high quality and reputation brand enterprises and factories, which cover printing and packaging, food and pharmaceutical packaging, printing consumables and rubber& plastic machinery, and form a multi-category, multispecies and multilevel integrated superiority and provide a convenient service channel for foreign customers.
Well planned, high input, extensive coverage exhibition publicity.
The huge investment of more than 20 international professional exhibitions and more than one billion sales amount per year make our company known overseas and be of high reputation in domestic and abroad market.
Strengthen channel building, service to global customers, multiple trading strategic pattern.
Through several years' effort, we have exported products to more than 80 countries (not only Asia but also Europe, Africa, South America, North America and Oceania) and have established long term strategic collaborations with distributors and sales channels in more than 40 countries and regions, which play an important role for open foreign market and maintain service terminal clients.
Our Customers:
Exhibitions:
Export Markets:
UP Group's products have been exported to more than 80 countries.
In Southeast Asia, its products cover Thailand, Indonesia, Singapore, Malaysia, Brunei, the Philippines, Japan, Korea, Vietnam, Cambodia, India, Sri Lanka, Nepal, Dubai, Kuwait, Saudi, Syria, Lebanon, Maldives, Bahrain, Jordan, Sudan, Mongolia, Myanmar, Pakistan, Iran, Turkey and Bangladesh.
In European, its products cover Australia, New Zealand, Britain, France, Germany, Italy, Spain, Portugal, Georgians, Slovakia Finland, Poland, the Czech Republic, Russia, Ukraine, Belarus, Kazakhstan, Uzbekistan, Sweden, Bosnia, Herzegovina and Albania
In Africa, its products cover South Africa, Kenya, Ethiopia, Egypt, Morocco, Algeria, Tunisia, Madagascar, Mauritius, Nigeria, Ivory Coast, Ghana, Mali, Liberia and Cameroon.
In America, its products cover The United States, Canada, Mexico, Panama, Costa Rica, Brazil, Argentina, Columbia, Bolivia, Uruguay, Paraguay, Chile, Peru, Ecuador and Honduras.
Among these regions, we have more than 46 stable distributors and partners for many years.
Packaging and Shipping:
Our Services:
Pre-sales Service
We provide all information and materials of our products to the valuable customers and partners so as to support their business and development. We also will give a preferential price for the first few machines, the samples for the printing, packaging and consumables are available, but the freight should be borne by the customers and partners.
In-sales Service
The delivery time of the ordinary equipment is generally 30-45 days after receipt of deposit. The delivery time of the special or large scale equipment is generally 60-90 days after receipt of the payment.
After-sales Service
The quality guarantee period of the product is 13 months after leaving the Chinese port. We can provide customers with free installation and training, but the customer is responsible for round-trip tickets, local meals, accommodation and engineer allowance.
If the product is damaged due to customer's incorrect handing, the customer should bear all the costs including the costs of spare parts and freight charges etc. During the warranty period, if it is damaged caused by our manufacturing failure, we will provide all repair or replacement free of charge.
Other Service
We can design special products according to customer's requirements on various aspects, including style, structure, performance, color etc. In addition, OEM cooperation is also welcome.
Model | LQ-MD UV330 |
Maximum Roll Diameter | 320 mm |
Maximum Media Width | 330 mm |
Printhead | EPSON i3200-U1×4 |
Ink Type | UV Ink |
Ink Colors | CMYK+W+V, CMYK |
Ink Bottle Capacity | 1000 ml |
Printing Speed | 4 pass: 56 m²/h 6 pass: 40 m²/h 8 pass: 28 m²/h |
File Formats | JPG, PDF |
Cutting Length | 10-300 mm |
Cutting Width | 20-320 mm |
Repeat Die-cutting Accuracy | ±0.05 mm |
Number of Die-cutting Heads | 2 |
Number of Slitting Knives | Standard 4 (optional according to requirements) |
Weight | 1800 Kg |
Power | 4KW AC220V 50HZ/60HZ |
Dimension | 2200×1800×1700 mm |
Model | LQ-MD UV330 |
Maximum Roll Diameter | 320 mm |
Maximum Media Width | 330 mm |
Printhead | EPSON i3200-U1×4 |
Ink Type | UV Ink |
Ink Colors | CMYK+W+V, CMYK |
Ink Bottle Capacity | 1000 ml |
Printing Speed | 4 pass: 56 m²/h 6 pass: 40 m²/h 8 pass: 28 m²/h |
File Formats | JPG, PDF |
Cutting Length | 10-300 mm |
Cutting Width | 20-320 mm |
Repeat Die-cutting Accuracy | ±0.05 mm |
Number of Die-cutting Heads | 2 |
Number of Slitting Knives | Standard 4 (optional according to requirements) |
Weight | 1800 Kg |
Power | 4KW AC220V 50HZ/60HZ |
Dimension | 2200×1800×1700 mm |
A: LQ-MD UV330 Printing and Cutting Intergrated Machine
A: 320mm
3.Q: Number and model of Print:
A: 4 EPSON i3200-U1 print heads
A: UV ink CMYK+W+V six types (cyan, yellow, magenta black and white varnish )
A: 0.8-1 m/s
A: Standard 2 , optional 3-4
7.Q: What is this?
A: This is the ink bottle
A: This is the place for printing.
A: Matching printing and cutting speed increase
10.Q: What is this?
A: This is the place for lamination.
11.Q: What is this?
A: This is where waste is removed
12.Q: What is this?
A: This is the rewinder
13.Q: What is this?
A : This is where the cutting takes place. The floating tension roller inside is one of our selling points. It makes the paper more stable.
14.Q: What is this?
A: This is the waste ink bottle
15.Q: What's in it?
16.Q: What's in it?
A: There is a ball screw inside , which can make it more durable.
17.Q: What is this?
A: This is unwinder.
A: LQ-MD UV330 Printing and Cutting Intergrated Machine
A: 320mm
3.Q: Number and model of Print:
A: 4 EPSON i3200-U1 print heads
A: UV ink CMYK+W+V six types (cyan, yellow, magenta black and white varnish )
A: 0.8-1 m/s
A: Standard 2 , optional 3-4
7.Q: What is this?
A: This is the ink bottle
A: This is the place for printing.
A: Matching printing and cutting speed increase
10.Q: What is this?
A: This is the place for lamination.
11.Q: What is this?
A: This is where waste is removed
12.Q: What is this?
A: This is the rewinder
13.Q: What is this?
A : This is where the cutting takes place. The floating tension roller inside is one of our selling points. It makes the paper more stable.
14.Q: What is this?
A: This is the waste ink bottle
15.Q: What's in it?
16.Q: What's in it?
A: There is a ball screw inside , which can make it more durable.
17.Q: What is this?
A: This is unwinder.
