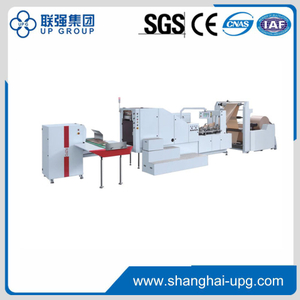

LQ-R330D
LQ
This machine is used for roll raw color paper or printing roll paper such as kraft paper, food paper and other paper rolls by the machine once complete the paper bag process. By automatic paper roll tension, coil correction, Paiqi bag positioning on the glue patch, center on glue, printing bag tracking. Raw materialinto into a barrel, Paiqi bag buckle hand hole, fixed long cut, bottom indentation, bottom folding bottom, bottom on glue. The bottom of the bag is formed, the finished bag is finishing once completed. Native operation is more convenient, more efficient, more stable, is the production of a variety of different paper bags, leisure food bags, bread bags, dry fruit bags and so on environmentally automatic fully automatic paich bag paper bag machine equipment
1.Use France SCHNEIDER touch screen human-computer interface, making the machine easy to operate and control.
2.Adopt Germany original LENZE PC control, integrated with optical fiber. Thus ensure stable and high speed running.
3.Adopt Germany original LENZE servo motor and German original SICK photoelectric eye correction, tracking printing bag accurately.
4.Patch bag function adopts a complete set of German original LENZE servo motor. Through integration with optical fiber, it works with the German original Rexroth motion controller (PC).
5.Automatic hole-punching adopts Germany original LENZE servo motor.
6.Raw material loading adopts hydraulic auto-lifting structure. Unwind unit adopts auto tension control.
7.Raw material unwinding EPC adopts Italy SELECTRA, reducing material alignment time.
Technical parameter
Model | LQ-R330D | |
Cutting length | 270-530m | |
Bag width | 120-330mm | |
Bottom width | 60-180mm | |
Paper thickness | 80-150g/㎡ | |
Machine Speed | 30-220pcs/min | |
Paper bag speed | 30-200pcs/min | |
Patch Bag width | 190-330mm | |
Patch Handle length | 75/85mm | |
Paige bag paper thickness | 80-150g/㎡ | |
Paige bag film thickness | 40-70µm | |
Paige bag roll width | 130mm | |
Paige bag roll straight | 500mm | |
Patch Bag speed | 30-130pcs/min | |
Paper roll width | 450-1050mm | |
Roll paper diameter | φ1200mm | |
Machine power | 3phase, 4 wire, 380V 40.58kw | |
Machine weight | 11800kg | |
Machine size | 16000x2200x2600mm |
