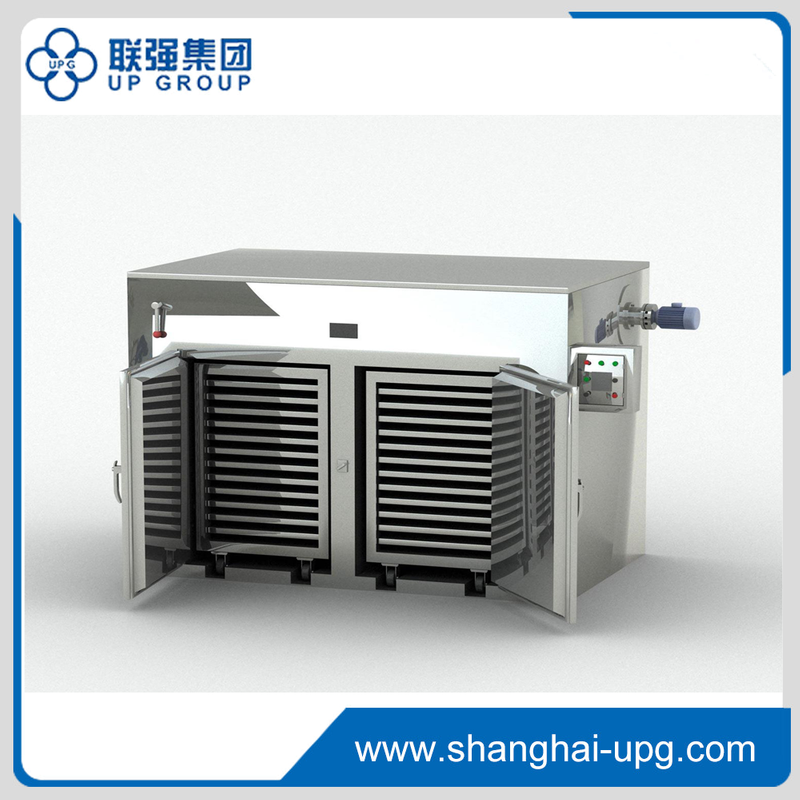

LQ-RXH Series Hot Air Circulating Oven

This equipment is widely applied for the materials drying and dehumidifying in pharmaceutical, chemical, foodstuff, light industry, heavy industry, etc., as well as suitable for the products heating and dehumidifying. The common applications such as crude drug, Chinese herbal slice, powder, granule, electuary, honeyed bolus packing bottles, evaporate vegetables, foodstuff, pigment, colorant, plastic resin, electrical components, baking finish, etc..
Availability:
Quantity:

PDF Export

LQ-RXH Series Hot Air Circulating Oven
  • LQ-RXH

  • UPG

 This equipment is widely applied for the materials drying and dehumidifying in  pharmaceutical, chemical, foodstuff, light industry, heavy industry, etc., as well as suitable for the products heating and dehumidifying. The common applications such as crude drug, Chinese herbal slice, powder, granule, electuary, honeyed bolus packing bottles, evaporate vegetables, foodstuff, pigment, colorant, plastic resin, electrical components, baking finish, etc..

Model  LQ-RXH-B-O  LQ-RXH-B-I LQ-RXH-B-II LQ-RXH-B-III LQ-RXH-B-IV
Drying Capacity
for Each Batch
60kg 120kg 240kg 360kg 480kg
Power 0.45kw 0.45kw 0.9kw  1.35kw 1.8kw
Steam Consumption 10kg/h 20kg/h 45kg/h 71kg/h 90kg/h
Radiating Area 5m2 20m2 40m2 80m2 100m2
Blowing Rate 3450m3/h 3450m3/h 6900m3/h 10350m3/h 13800m3/h
Temperature Range ±2℃ ±2℃ ±2℃ ±2℃ ±2℃
Baking Pans 24 48 96 144 192
Baking Trolleys 1 2 4 6 8
Overall Dimension(mm) 1400*1200*2300 2300*1200*2300 2300*2200*2300 2300*2200*2300 4460*3200*2000
