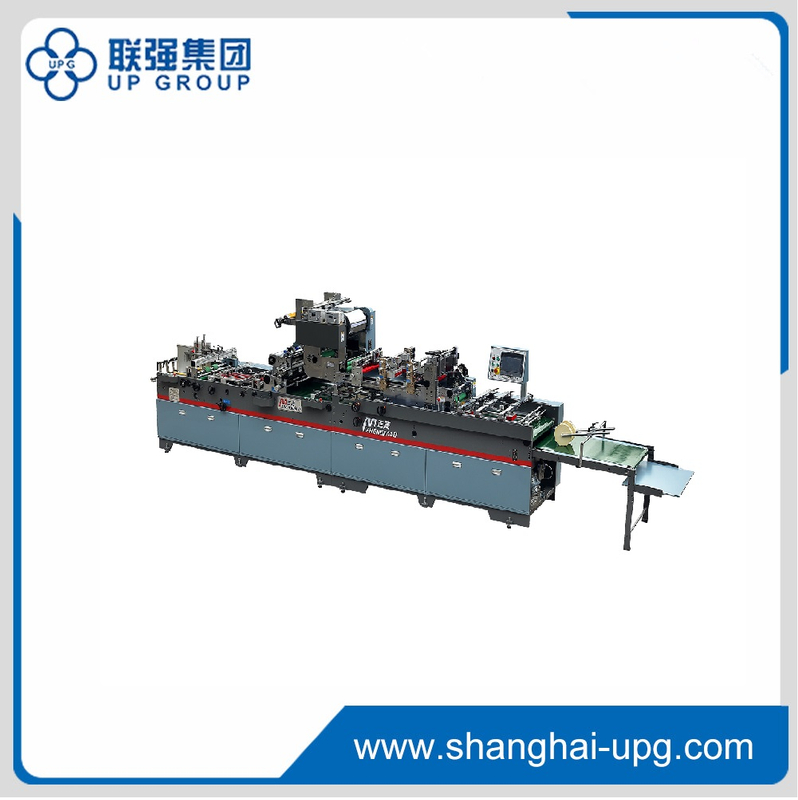

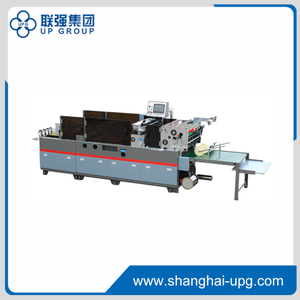

This machine is composed of these six units: feeding units, gluing unit, heater system(Optional), digital corner cutting unit, film patching unit, delivery unit.
| Availability: | |
|---|---|
| Quantity: | |
| PDF Export | |
LQ-TC
UPG
Independent servo control system is adopted for intermittent belt conveying. Intermittent conveying distance can be adjusted as per paper size. Realizing continuous paper feeding without shutting down the machine. The left and right position of the belts can also be adjusted.
Independent servo control system is adopted for intermittent belt conveying. Intermittent conveying distance can be adjusted as per paper size. Realizing continuous paper feeding without shutting down the machine. The left and right position of the belts can also be adjusted.
Model | LQTC-650 | LQTC-880 | LQTC-1050 |
Blank length | 180-650 | 200-650 | 200-720 |
Blank width | 150-650 | 180-880 | 180-1050 |
Film length | 70-300 | 70-350 | 70-350 |
Film width | 30-300 | 30-400 | 30-500 |
Paper weight | 250-450gr/㎡ | 250-450gr/㎡ | 250-450gr/㎡ |
Film thickness | 0.1-0.4mm with heater | 0.1-0.2mm without heater 0.1-0.4mm heater | 0.1-0.2mm without heater 0.1-0.4mm heater |
Mechanical speed | 3000-6000pcs/h | 3000-6000pcs/h | |
Positioning accuracy | ±0.5mm | ±0.5mm | ±0.5mm |
Power voltage | 380v/50Hz | 380v/50Hz | 380v/50Hz |
Machine power | 5.5/17KW | 7.5/19KW | 9.5/21KW |
Machine weight | 3500KG | 4000KG | 4500KG |
Overall dimension | 7200×1300×1850mm | 8000×1500×1850mm | 8000×1700×1850mm |
Model | LQTC-650 | LQTC-880 | LQTC-1050 |
Blank length | 180-650 | 200-650 | 200-720 |
Blank width | 150-650 | 180-880 | 180-1050 |
Film length | 70-300 | 70-350 | 70-350 |
Film width | 30-300 | 30-400 | 30-500 |
Paper weight | 250-450gr/㎡ | 250-450gr/㎡ | 250-450gr/㎡ |
Film thickness | 0.1-0.4mm with heater | 0.1-0.2mm without heater 0.1-0.4mm heater | 0.1-0.2mm without heater 0.1-0.4mm heater |
Mechanical speed | 3000-6000pcs/h | 3000-6000pcs/h | |
Positioning accuracy | ±0.5mm | ±0.5mm | ±0.5mm |
Power voltage | 380v/50Hz | 380v/50Hz | 380v/50Hz |
Machine power | 5.5/17KW | 7.5/19KW | 9.5/21KW |
Machine weight | 3500KG | 4000KG | 4500KG |
Overall dimension | 7200×1300×1850mm | 8000×1500×1850mm | 8000×1700×1850mm |
