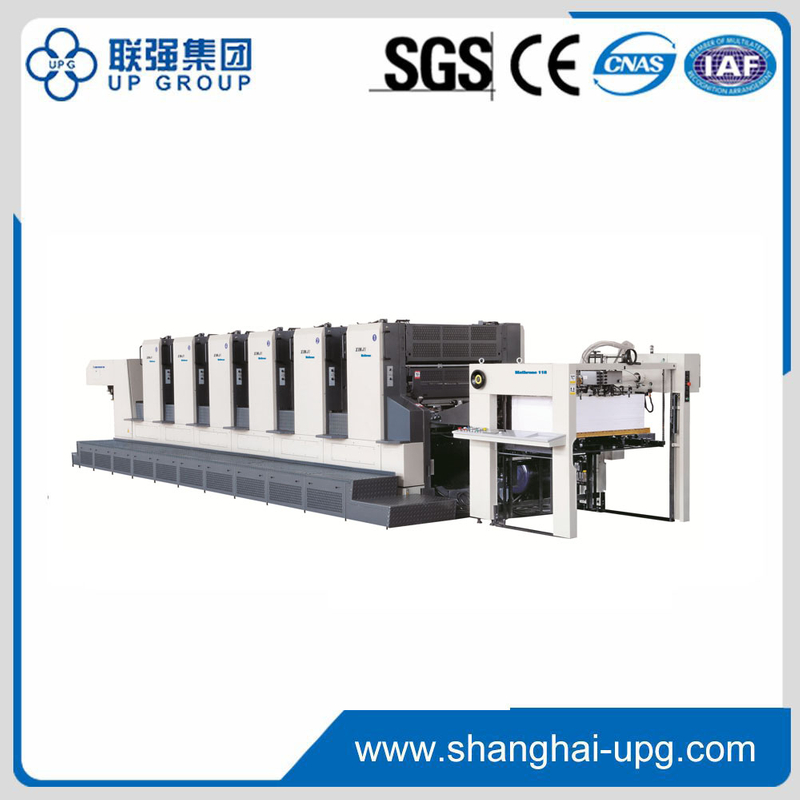

LQ-XJ1030 LARGE FORMAT FIVE-COLOR SHEETFED OFFSET PRINTING PRESS

Unit design Double size impression cylinder and transfer drum (φ600), Ratio of cylinder diameter: P:B:I:T=1:1:2:2

5 O’ clock cylinder arrangement

Quantity:
  • LQ-XJ1030
  • LQ

Feeder

High speed feeder

Direct lift separation suction,linear paper sheet feeding

Feeder table with aluminum alloy plate, 8 feeding belts

Inclination of the paper sheets adjustable at the feeder head

Lift distance adjustable between 0.8-2mm according to sheet thickness

Air volume manually adjustable according to the sheet size, weight and the printing speed

Double sheet sensor


Sheet positioning

Swing arm operating from below

Down-swing compound front lays, longer sheet positioning time

Sensors at the front lay for checking late and skewed paper sheets

Paper sheet size control

Front lays manually adjustable in vertical and longitudinal directions


Printing Unit

Stainless coatings on the impression Cylinder

All cylinders made of anti-friction cast iron

Gripper tips and pads changeable independently

Impression and plate cylinders born in precision taper roller bearings

Blanket cylinders born in special-purpose cylindrical roller bearings

The bearer of the plate cylinder contacts the bearer of blanket cylinder

Blankets with aluminum clippers for fast plate mounting

Height of gripper pads can be easily adjusted manually according the thickness of paper sheets

Impression force manually adjustable according to the thickness of paper sheets

Quick-change plate holder

Front plate holder with positioning pins

Front plate holder with pre-positioning devices

Rear plate holder split into 3sections fro adjusting fanning-out

Axial adjustment for the plate cylinder (+/- 2mm)



Outline pre-stacking device

Static electricity eliminator


Max.   Sheet Size:

720*1030mm

Min.   Sheet Size:

360*520mm

Max.   Printing Size:

705*1020mm

Sheet   Thickness:

004-0.6mm

Blanket   Size:

900×1040*1.95mm

Plate   Size:

800*1030*0.3

Max.   Speed:

12000s/h

Main   Motor

45kw

Net   Weight

41500kg

Overall   Dimension

10440×4110×2408                  mm
