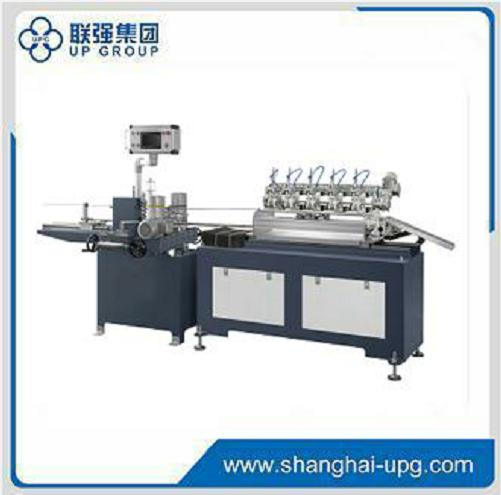

LQ-ZG Paper straw making machine

Suitable for small diameter (5-12 mm) paper tube production, such as paper straw, pen tube
Availability:
Quantity:
  • LQ-ZG


Suitable for small diameter (5-12 mm) paper tube production, such as paper straw, pen tube

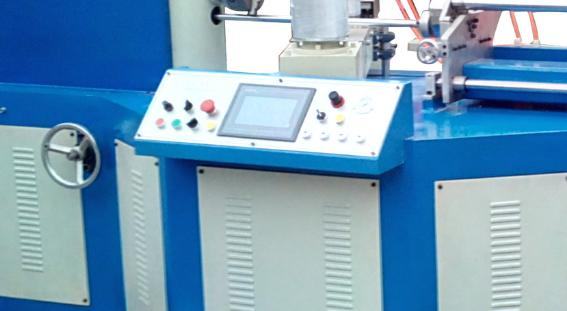

1. Machine adopts Siemens PLC control, all data can be display in the touch screen.

2. Numerical control servo cutter device, high precision cutting;

3. Automatically cut, automatically fall pipe, automatically change speed and revert;

4. Round knife cutting, incision more smooth, performance more stable;

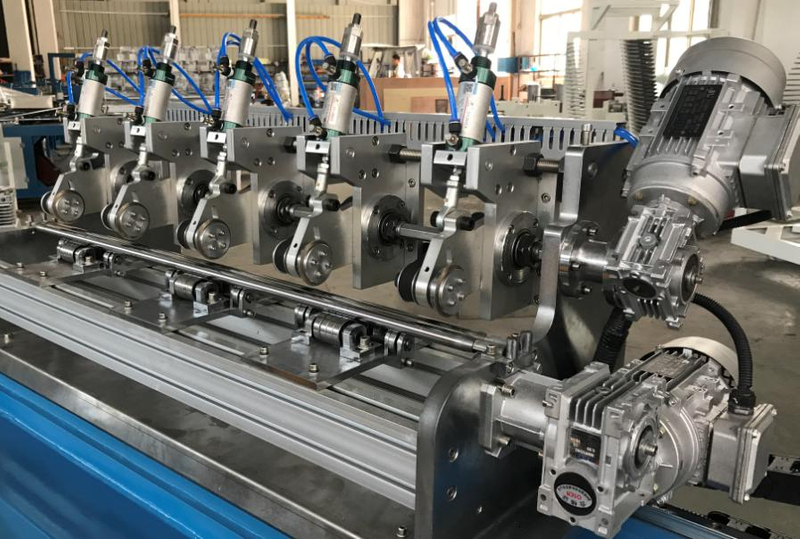

5. With online multi-cut blades, no need secondary cutting, save labor and time.

6. Stainless steel gluing box, with polyurethane scraper and high carbon steel plastic knife, durable in use;

7. Machine adopts Flange for fix the mandrel.

8. Machine supply of lubricant automatically.




Number of roller

1-3 layer

Tube diameter

5-12 mm

Tube wall-thickness

0.3-1 mm

Cutting Length

100-800mm

Winding head

2

Power

7.7KW

(Main motor 3KW;Servo motor 1KW; frequency inerter 3.7KW)

Cutter

5 sets

Operator

1-2 person

Winding speed

0-45 m/min

Speed control

Frequency

Working Air Pressure

0.6Mpa

Power Supply

380V/3Phase/50Hz

Measurement

5600*1600*1750mm

Working Space

11000mm * 6000mm*2000mm

Weight

2000kgs
