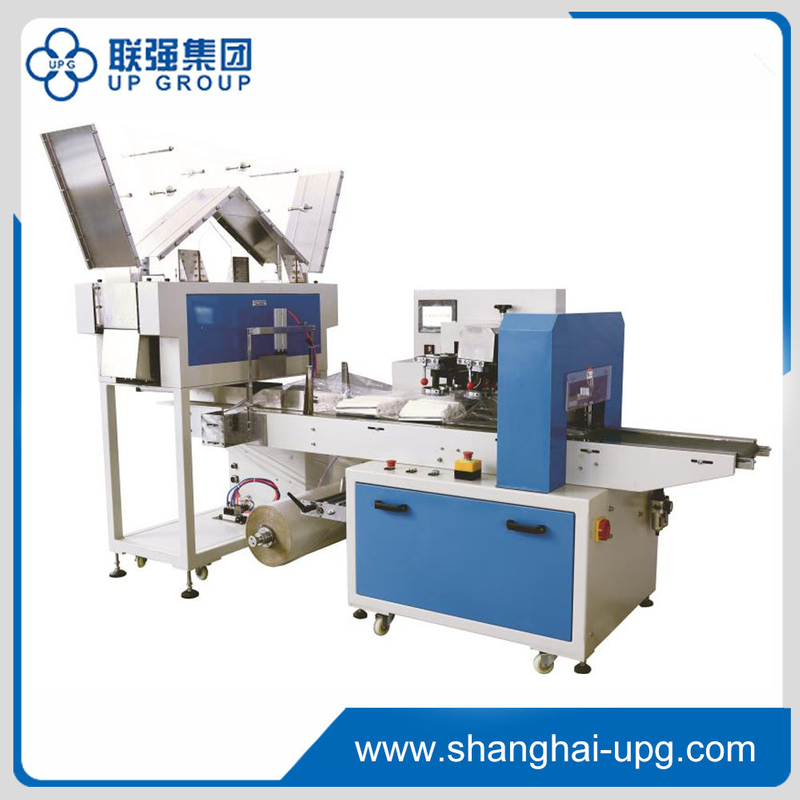

LQAB-600D Multiple straw packing machine

Quantity:
  • LQAB-600D
  • UPG

LQAB-600D Multiple straw packing machine

Features

1. Panasonic PLC control.

2. Touch screen HIM .

3. Machine drive by servo motor and pneumatic

3. Bag length easily change on the touch screen

4. Photocell tracking for printed film, get printing logo registered.

5. Automatic counting function, counting number easily setting.


Technical parameters

Model

LQAB-600D

Max. film width

530 mm

Packing speed

700-1000 pcs per minute

Film thickness

25 - 60 micron

Bag length

150-350mm

Bag width

80-240mm

Packing number

10- 300Pcs  depends on the

Product length

size made by order

Power Supply

220V  50/60 Hz  3 KW  1 Phase

Machine Size

3200x1200x1410 mm

Machine Weight

590 kgs

Air supply

0.8Mpa


Machine main electronic parts

No.

Spare parts

Remark

1

Servo motor

Panasonic

2

Servo motor driver

Panasonic

3

PLC

Panasonic

4

Optical fiber sensor

Panasonic

5

Touch screen

Weinview

6

Breaker switch

Schneider

7

Power supply(24V)

Schneider

8

Relay

Schneider

9

Temperature

XMTG-9081

10

Solid relay

SSR-220D25

11

Photo cell

JULONG

12

Heater

220V 300W
