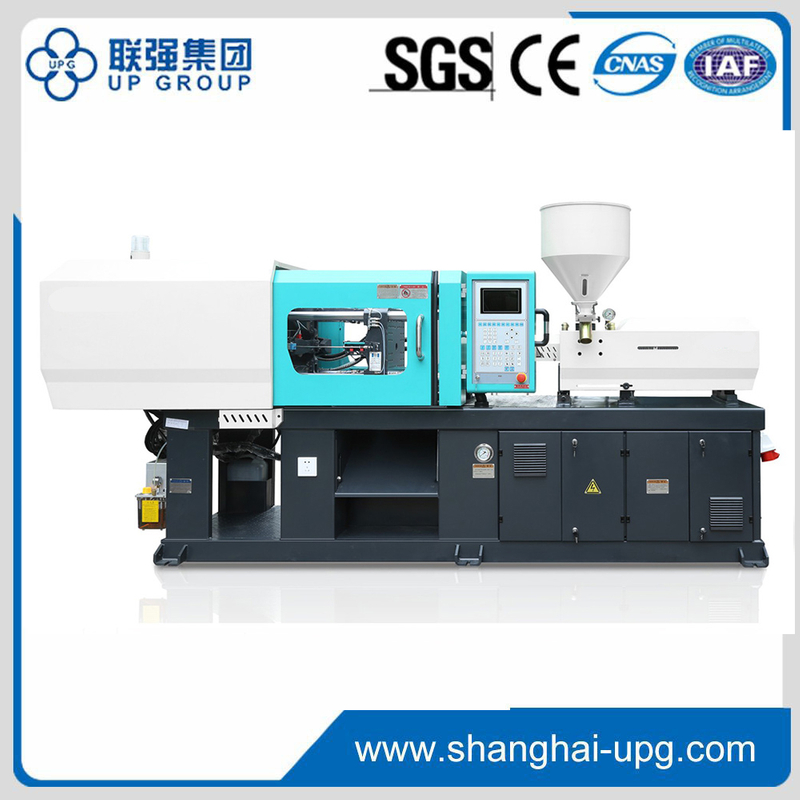

LQHJ Servo Energy-saving Injection Molding Machine

Box-type bracket plate and template conjoined structure.
Quantity:
  • LQHJ
  • UPG

CLAMPING UNIT

Box-type bracket plate and template conjoined structure.

·Using the technology-leading five-point double toggle

oblique clamping

·Adopting mechanically adjustable and moveable plate

support etc. to make sure the clamping rigidity and high

reliability

·European Standard plated layout with both T-shot and tap

holes. It is more convenient for installation and removal of

mold.

·Low voltage mold protection function.

INJECTION UNIT

Optimized design of precision plasticizing system

·Optimized design with superior quality nitrogen alloy

steel screw and barrel

·Dual-cylinder balance injection unit and double guide column

linear guide supporting, forcefully closed type base advance device.

·Multi-stage pressure and multi-stage injection speed adjustment

·Automatic (manual) proportional back pressure regulator

HYDRAULIC SYSTEM

·High response oil circuit design

·The system has employed pressure-flow ratio control

·Oil temperature deviation alarm function

· World-renowned brands oil pump and control valves,

more outstanding performance of pressure supporting.

CONTROL UNIT

·Equipped with high-performance imported controller, The

control panel applies Color large screen LCD display technology,

of which detect production process and display all kinds of

malfunction analysis

·PID temperature control which combined with high precision

electronic ruler and computer controller, regulate motions of

injection, pressure keeping, smelting and backpressure to

ensure the quality of molded products and continuity of

production.



image1image2image3image4image5image6

image7image8

INJECTION UNIT

Unit

LQHJ58S / LQHJ58

LQHJ98S

LQHJ128S

Screw Type

Piece

A B C

A B C

A B C

Screw Diameter

mm

26 28 30

32 36 40

36 40 45

Screw L/D Ratio

L/D

24 22 20.6

23 20.5 18.5

23.2 21 18.6

Theoretical Injection Volume

cm³

61 71 81

138 175 216

195 241 305

Injection Weight (PS)

g

56 65 74

126 159 197

178 220 278

Injection Rate

g/s

42 48 56

67 85 105

93 115 145

Injection Pressure

Mpa

223 192 168

239 189 153

215 174 137

Injection Stroke

mm

116

172

192

Screw Speed

rpm

0-220

0-170

0-190

Sphere Diameter of Nozzle

mm

SR12

SR10

SR10

CLAMPING UNIT

/

/

/

/

Clamping Force

KN

580

980

1280

Max. Mould Opening Stroke

mm

270

320

345

Space Between Tie Bars (WxH)

mm

280x277

360x360

410x410

Mould Height (Min. ~Max.)

mm

120~350

100~350

150~430

Dia. Of Mould Location Hole

mm

Φ100

Φ125

Φ125

Ejector Stroke

mm

55

100

100

Ejector Force

KN

20

34

34

Ejector Number

Piece

1

4+1

4+1

OTHERS

/

/

/

/

Servo Motor Power (SPM)

Mpa

16.0

17.5

17.5

Servo Motor Power (IPM)

KW

8.6

12.0

14.0

Rated Pressure of Oil Pump

KW

/

8.9

13.2

Constant Rate Pump Motor Power

KW

5.5

/

/

Heating Capacity of Screw Cylinder

KW

4.03

7.36

9.40

Heating Section

Piece

4

4

4

Oil Tank Cubage

L

150

135

150

Machine Dimension (LxWxH)

m

3.37(3.5)×1.2×1.7

4.3(4.35)×1.12×1.9

4.35(4.5)×1.2×1.9

Machine Weight

t

2

3

4



LQHJ138S

LQHJ168S

LQHJ208S

LQHJ278S

LQHJ328S/LQHJ328

A B C

A B C

A B C

A B C

A B C

36 40 45

40 45 50

45 50 55

55 60 65

65 70 75

23.2 21 18.6

23 20.5 18.4

23 21 19

23.6 21 19.6

22.6 20.3 19

195 241 305

276 349 431

400 494 598

721 859 1008

1160 1346 1546

178 220 278

252 319 393

364 450 545

655 782 918

1056 1225 1406

93 115 145

107 135 167

145 179 217

207 247 289

247 287 329

215 174 137

234 185 150

217 176 145

192 161 137

192 166 144

192

220

252

304

350

0-190

0-190

0-160

0-165

0-140

SR10

SR10

SR10

SR10

SR10

/

/

/

/

/

1380

1680

2080

2780

3280

400

410

460

520

580

410x410

460x460

510x510

580x580

670x670

150~450

160~500

180~550

195~600

220~655

Φ125

Φ125

Φ160

Φ160

Φ160

130

120

150

160

180

34

41

49

77

77

4+1

4+1

4+1

8+1

8+1

/

/

/

/

/

17.5

17.5

17.5

17.5

17.5

14.0

17.6

28.3

29.0

31.0

13.2

16.4

20.4

26.7

30.2

/

/

/

/

30.0

9.40

12.40

13.01

17.25

26.20

4

5

5

5

5

150

183

200

243

460

4.55(4.7)×1.2×1.9

4.8(5.05)×1.26×1.92

5.41(5.52)×1.34×2.1

5.87(6.24)×1.5×2.3

6.71(6.8)×1.8×2.3

4.3

5

6

8.5

13
