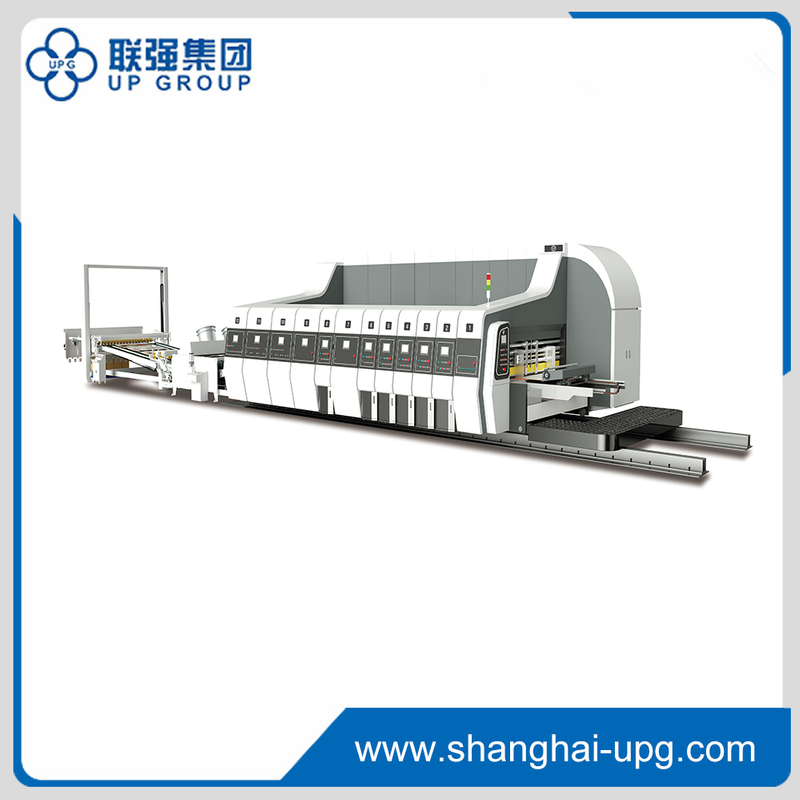

LQKM-1225 High Speed Flexo Printing Slotting Die-cutting Machine

High Speed Flexo Printing Slotting Die-cutting Machine.The machine adopts the whole process vacuum adsorption to transport the paperboard accurately, so as to improve the overprint accuracy and printing effect.
Availability:
Quantity:
  • LQKM-1225
  • UPG

  • The machine adopts the whole process vacuum adsorption to transport the paperboard accurately, so as to improve the overprint accuracy and printing effect.

  • Computer control can store common orders; Faster order change and more convenient operation.

  • All transmission rollers are made of high-quality steel, plated with hard chromium, ground on the surface and tested for dynamic balance.

  • The transmission gear is made of high-quality steel by grinding, and the Rockwell hardness is > 60 degrees after heat treatment.

  • Each unit of the whole machine is automatically or separately separated; Keep ringing the alarm when walking to ensure the safety of operators.

  • Emergency stop pull switch is set in each unit to stop the movement of each unit internally to ensure the safety of internal operators.

Q:What is the printing precision of chromatography?

A:Its vacuum suction auxiliary roller conveying with the embossing roller, to ensure the printing precision of chromatography up to ± 3.5.

Q:What are the advantages of this machine?

A:It has a special aluminum arc scraping ink cavity, so that the bending ability to improve 30%,inkreserves to save 20%.

Q:What are the features of the ORITE-II ?

A:The paper feeding part adopts servo motor to drive double cots conveying, without mechanical transmission error.




Model

920

1224

1425

1628

Max Mechanical Speed

350

280

230

160

Max Feeding Size (LxW)

900x2050

1200x2500

1400x2600

1600x2900

Min Feeding Size (LxW)

280x600

350x600

380x650

450x650

Alternative Sheet Feeding Size

1100x2000

1500x2500

1700x2600

1900x2900

Max Printing Area

900x2000

1200x2400

1400x2500

1600x2800

Standard Plate Thickness

7.2
