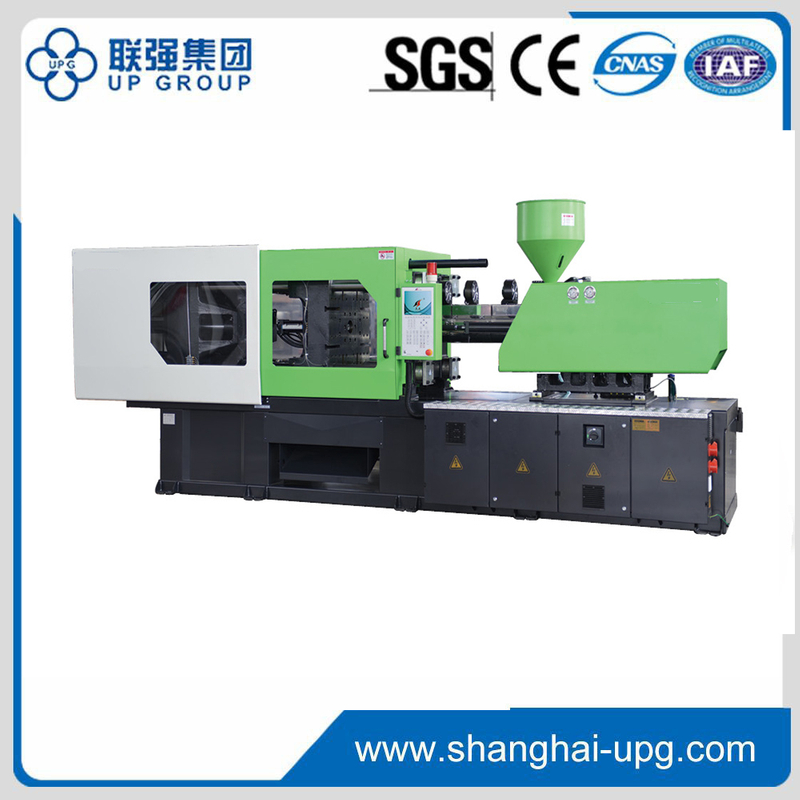

LQS
UPG
Application
For all kind of UPVC pipes and fittings.
Features
Apply integrated screw with chrome plating surface, without backstop ring and thrust ring,plasticizing efficiency will be highly approved, reduce shear heating,get better acid corrosion resistance;
On the barrel equipped with multistage air fan unit to ensure the temperature precise of heating, even heat ventilation.
Double core pulling valve, to meet different product core pull requirements.
Application
For all kind of UPVC pipes and fittings.
Features
Apply integrated screw with chrome plating surface, without backstop ring and thrust ring,plasticizing efficiency will be highly approved, reduce shear heating,get better acid corrosion resistance;
On the barrel equipped with multistage air fan unit to ensure the temperature precise of heating, even heat ventilation.
Double core pulling valve, to meet different product core pull requirements.
Machine model | LQS1500UPVC | LQS1700UPVC | LQS2200UPVC | ||||
Injection Unit | A | B | A | B | A | B | |
Screw diameter | mm | 42 | 45 | 45 | 50 | 50 | 55 |
Screw L/D ratio | L/D | 21.4 | 20 | 22 | 19.8 | 22 | 20 |
Shot volume | cm3 | 277 | 318 | 357 | 441 | 490 | 593 |
Injection weight(PS) | g | 343 | 394 | 442 | 546 | 606 | 733 |
Oz | 12 | 14 | 15.5 | 19.3 | 21.4 | 26 | |
Plasticizing | g/s | 22 | 28 | 27 | 34 | 34 | 40 |
Injection rate | g/s | 170 | 195 | 210 | 250 | 270 | 320 |
Injection pressure | Mpa | 183 | 159 | 188 | 152 | 168 | 139 |
Screw speed | rpm | 200 | 180 | 200 | |||
Clamping Unit | |||||||
Clamping force | KN | 1500 | 1700 | 2200 | |||
Open stroke | mm | 400 | 435 | 485 | |||
Space between tie-bars(WxH) | mm | 430X430 | 480X480 | 530X530 | |||
Max. Mold height | mm | 480 | 535 | 550 | |||
Min. Mold height | mm | 160 | 180 | 200 | |||
Ejector stroke | mm | 130 | 145 | 142 | |||
Ejector force | KN | 53 | 70 | 90 | |||
Ejection number | PC | 5 | 5 | 9 | |||
Mould Align diameter | mm | 125 | 125 | 160 | |||
Others | |||||||
Max.Pump pressure | Mpa | 16 | 16 | 16 | |||
Pump motor power | KW | 18.5 | 23 | 23 | |||
Heater power | KW | 10.3 | 12.3 | 15 | |||
Machine dimension(LXWXH) | m | 4.5X1.35X1.9 | 5.13X1.45X2.12 | 5.5X1.5X2.2 | |||
Oiltank capacity | L | 250 | 300 | 320 | |||
Machine Weight | ton | 4 | 6 | 7 |
Machine model | LQS2700UPVC | LQS3500UPVC | LQS4100UPVC | ||||
Injection Unit | A | B | A | B | A | B | |
Screw diameter | mm | 60 | 64 | 70 | 75 | 75 | 80 |
Screw L/D ratio | L/D | 22 | 20.6 | 21.8 | 20.3 | 22 | 20.6 |
Shot volume | cm3 | 760 | 865 | 1327 | 1524 | 1590 | 1809 |
Injection weight(PS) | g | 940 | 1070 | 1641 | 1885 | 1966 | 2236 |
Oz | 33.2 | 37.8 | 58 | 66.5 | 69.5 | 79 | |
Plasticizing | g/s | 52 | 64 | 65 | 73 | 73 | 80 |
Injection rate | g/s | 350 | 390 | 400 | 450 | 430 | 480 |
Injection pressure | Mpa | 162 | 143 | 168 | 146 | 173 | 152 |
Screw speed | rpm | 180 | 160 | 150 | |||
Clamping Unit | |||||||
Clamping force | KN | 2700 | 3500 | 4100 | |||
Open stroke | mm | 553 | 650 | 715 | |||
Space between tie-bars(WxH) | mm | 580X580 | 720X670 | 770X720 | |||
Max. Mold height | mm | 580 | 740 | 780 | |||
Min. Mold height | mm | 220 | 250 | 250 | |||
Ejector stroke | mm | 150 | 160 | 180 | |||
Ejector force | KN | 90 | 100 | 125 | |||
Ejection number | PC | 9 | 13 | 13 | |||
Mould Align diameter | mm | 160 | 160 | 160 | |||
Others | |||||||
Max.Pump pressure | Mpa | 16 | 16 | 16 | |||
Pump motor power | KW | 31 | 45 | 55 | |||
Heater power | KW | 17 | 20 | 25 | |||
Machine dimension(LXWXH) | m | 5.9X1.6X2.2 | 7.0X1.75X2.2 | 7.3X2.0X2.4 | |||
Oiltank capacity | L | 360 | 600 | 700 | |||
Machine Weight | ton | 8 | 11 | 15 |
