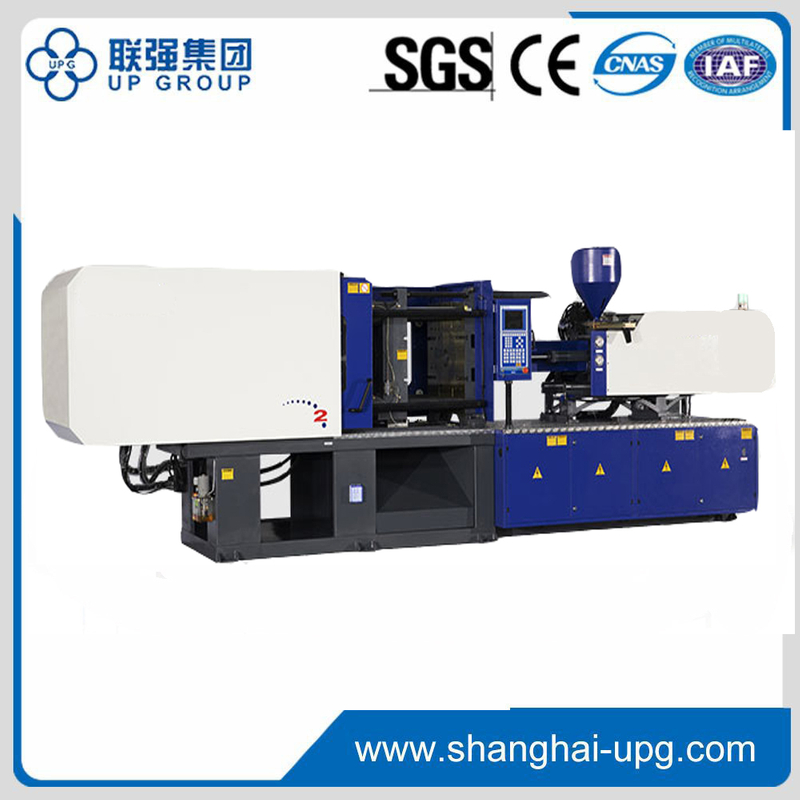

LQYT
UPG
Key Selling Points : Energy Saving
Applicable Industries:Manufacturing Plant
Used For : Plastic Products
After-sales Service Provided : Video Technical Support, Free Spare Parts, Field Installation, Commissioning And Training, Field Maintenance And Repair Service, Online Support
Key Selling Points : Energy Saving
Applicable Industries:Manufacturing Plant
Used For : Plastic Products
After-sales Service Provided : Video Technical Support, Free Spare Parts, Field Installation, Commissioning And Training, Field Maintenance And Repair Service, Online Support
Item | YT-880 | YT-1380 | YT-1580 | YT-2000 | YT-2500 | YT-3000 | YT-3300 | YT-3880 | YT-4200 | |
Injection Unit | ||||||||||
The screw diameter | mm | 30 | 35 | 42 | 45 | 50 | 50 | 60 | 70 | 75 |
Screw length to diameter radio | L/D | 21 | 20 | 20 | 20 | 20.4 | 20 | 20 | 20 | 20 |
Theoretical capacity | cm3 | 88 | 155 | 241 | 362 | 465 | 476 | 847 | 1362 | 1742 |
Actual injection weigh | g | 80 | 140 | 217 | 326 | 419 | 429 | 763 | 1226 | 1568 |
Injection pressure | mpa | 14 | 16 | 16 | 17.5 | 17.5 | 17.5 | 17.5 | 17.5 | 17.5 |
Clamping Unit | ||||||||||
Clamping force | KN | 880 | 1380 | 1580 | 2000 | 2500 | 3000 | 3300 | 3800 | 4200 |
Opening storke | mm | 280 | 345 | 380 | 435 | 465 | 475 | 550 | 660 | 705 |
Space between tie-bars | mm*mm | 310*310 | 370*370 | 420*420 | 470*470 | 520*505 | 58*580 | 620*620 | 660*660 | 720*700 |
Max.mold thickness | mm | 100 | 150 | 160 | 180 | 200 | 200 | 200 | 250 | 250 |
Min.mold thickness | mm | 330 | 380 | 450 | 520 | 500 | 530 | 580 | 68 | 780 |
Oil pressure ejecting stroke | mm | 80 | 100 | 120 | 135 | 145 | 140 | 150 | 160 | 150 |
Oil pressure ejecting force | kn | 28 | 33 | 46 | 46 | 60 | 62 | 62 | 62 | 79 |
Oil pressure system pressure | mpa | 14 | 16 | 16 | 17.5 | 17.5 | 17.5 | 17.5 | 17.5 | 17.5 |
Heating capacity | kw | 5.3 | 6.8 | 8.3 | 13.75 | 13.8 | 17.3 | 25.3 | 27.5 | 36.5 |
Motor capacity | kw | 7.5 | 9 | 13 | 18.5 | 22 | 27 | 30 | 30 | 37 |
Other | ||||||||||
Machine size | m*m*m | 3.6*1.12*1.72 | 4.1*1.1*1.8 | 4.35*1.17*1.9 | 4.93*1.3*1.98 | 5.02*1.43*2.05 | 5.5*1.5*2.15 | 5.8*1.58*2.25 | 6.9*1.85*2.35 | 7.4*1.9*2.3 |
Theoretical weight of machine | t | 2.5 | 3.2 | 4.5 | 5.38 | 7 | 8.5 | 9.5 | 13.5 | 16 |
