MY800E
UPG

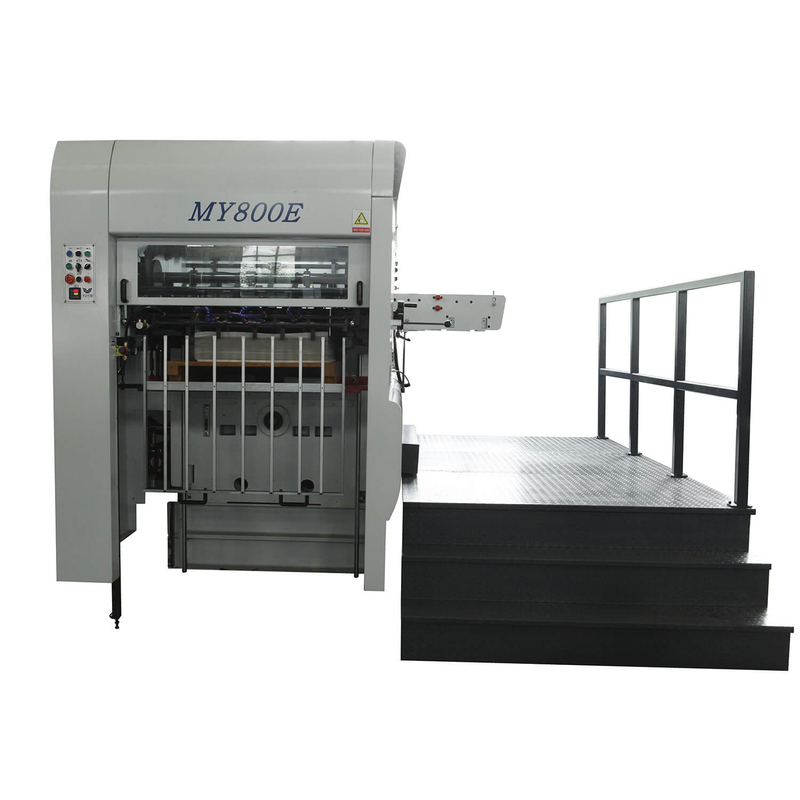

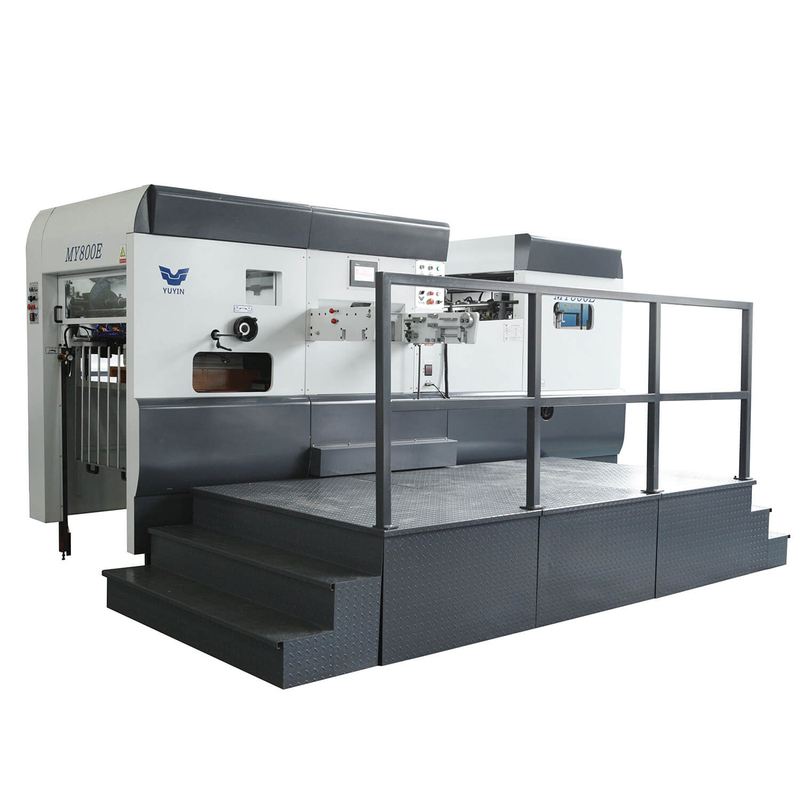

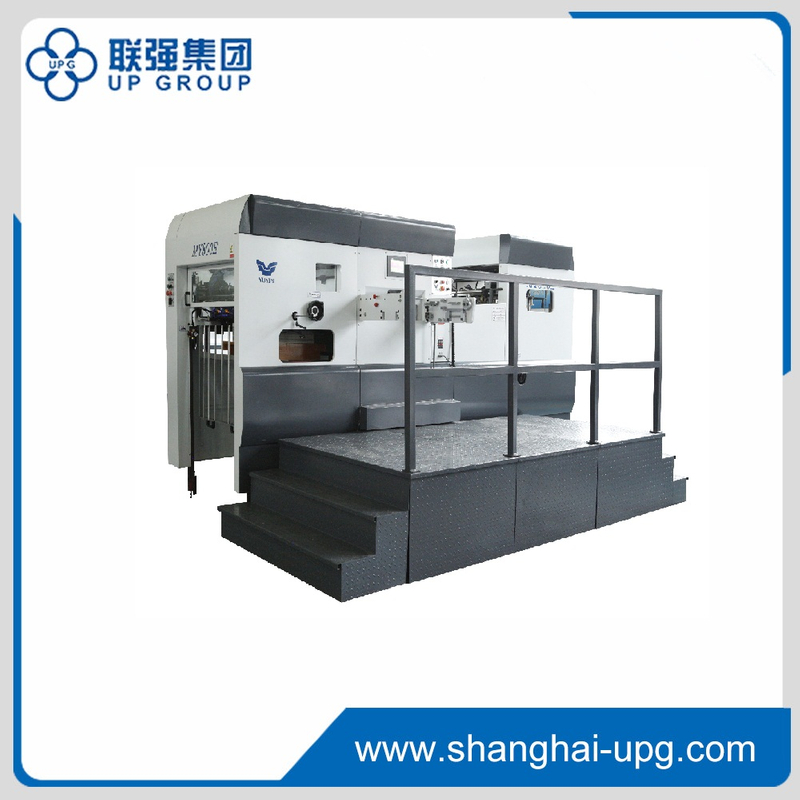

MY800E Automatic Diecutting & Creasing Machine | |
MY800E automatic die-cutting and creasing machine is mainly used for the die-cutting, creasing, cold and hot embossing of cigarette box, drug box, wine box and label in the packing and decorating industries. This kind of machine is incorporated with fully automatic feeding, die-cutting, delivering counting, obstacle indicating, checking and measuring. It has the features of easy operating, reliability, high speed and precision. | |
● Adopt pneumatic clutch, which ensures stable braking. ● Adopt programmable controller, and it is incorporated with fully automatic feeding, die-cutting, delivery, obstacle indicating, checking and measuring. ● Adopt coder in controlling program, which makes the running of the machine coordinately. ● The sheet-conveying unit adopts adjustable construction, ensuring speed and precision, especially fits to the conveying of thin sheet. ● Pneumatic sampling system makes the sample-checking more convenient. ● All the electrical are the products that have got CE certificate, every safeguard coincides with CE standard, safe and reliable. |
Compare with MY800, MY800E has the following advantage: ● Pneumatic Plate Locking Device: easy to lock the plate ● Electric Pressure Adjusting System: easy to adjust the pressure, no need to turn the hand wheel, can adjust the pressure in the Interface. |
MY800E Automatic Diecutting & Creasing Machine | |
MY800E automatic die-cutting and creasing machine is mainly used for the die-cutting, creasing, cold and hot embossing of cigarette box, drug box, wine box and label in the packing and decorating industries. This kind of machine is incorporated with fully automatic feeding, die-cutting, delivering counting, obstacle indicating, checking and measuring. It has the features of easy operating, reliability, high speed and precision. | |
● Adopt pneumatic clutch, which ensures stable braking. ● Adopt programmable controller, and it is incorporated with fully automatic feeding, die-cutting, delivery, obstacle indicating, checking and measuring. ● Adopt coder in controlling program, which makes the running of the machine coordinately. ● The sheet-conveying unit adopts adjustable construction, ensuring speed and precision, especially fits to the conveying of thin sheet. ● Pneumatic sampling system makes the sample-checking more convenient. ● All the electrical are the products that have got CE certificate, every safeguard coincides with CE standard, safe and reliable. |
Compare with MY800, MY800E has the following advantage: ● Pneumatic Plate Locking Device: easy to lock the plate ● Electric Pressure Adjusting System: easy to adjust the pressure, no need to turn the hand wheel, can adjust the pressure in the Interface. |
Model | MY800E |
Max. Paper Size (mm) | 800X620 |
Min. Paper Size (mm) | 360X290 |
Max. Die-cutting Size (mm) | 790X610 |
Max. Cutting Speed (s/h) | 8000 |
Die-cutting Precision (mm) | ≤±0.1 |
Max. Working Pressure (T) | 200 |
Sheet Thickness (mm) | Cardboard: 0.1-1.5 |
Net Weight (T) | 9 T |
Total Power (kw) | 13.55 |
