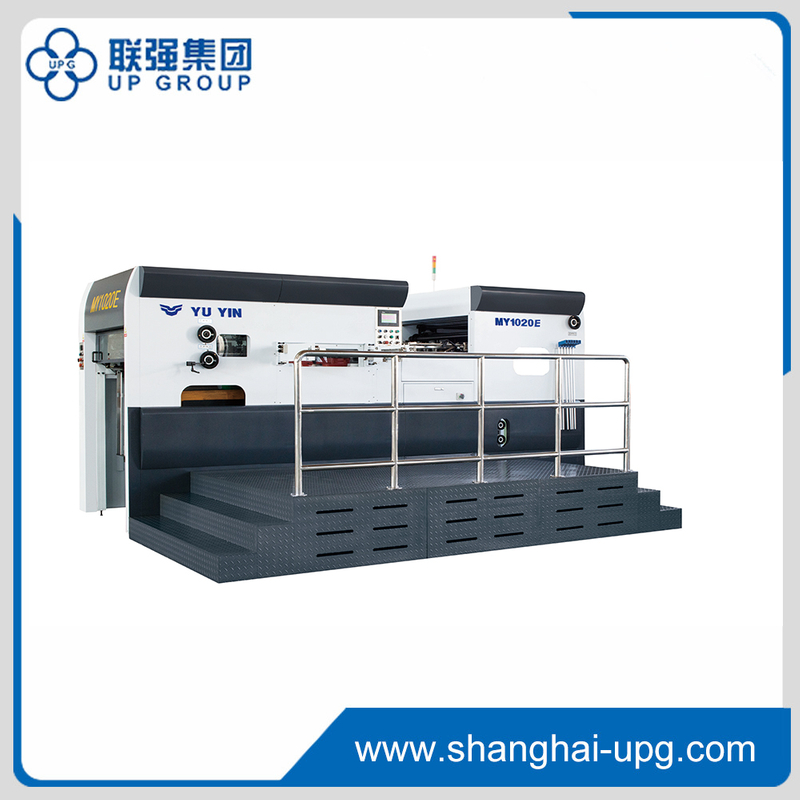

MY1020E Automatic Diecutting & Creasing Machine

Compare with MY1020A, MY1020E has the following advantage:
(1) Pneumatic Plate Locking Device: easy to lock the plate
(2) Electric Pressure Adjusting System: easy to adjust the pressure, no need to turn the hand wheel, can adjust the pressure in the Interface.
MY1020E automatic die-cutting and creasing machine is mainly used for the die-cutting, creasing, cold and hot embossing of cigarette box, drug box, wine box and label in the packing and decorating industries.This kind of machine is incorporated with fully automatic feeding, die-cutting, delivering counting, obstacle indicating, checking and measuring. It has the features of easy operating, reliability, high speed and precision.

Quantity:
  • MY1020E
  • UPG

Compare with MY1020A, MY1020E has the following advantage:

(1) Pneumatic Plate Locking Device: easy to lock the plate

(2) Electric Pressure Adjusting System: easy to adjust the pressure, no need to turn the hand wheel,

can adjust the pressure in the Interface.

MY1020E automatic die-cutting and creasing machine is mainly used for the die-cutting, creasing, cold and hot embossing of cigarette box, drug box, wine box and label in the packing and decorating industries.

This kind of machine is incorporated with fully automatic feeding, die-cutting, delivering counting, obstacle indicating, checking and measuring. It has the features of easy operating, reliability, high speed and precision.

Adopt programmable controller, it is incorporated with fully automatic feeding, die-cutting, delivery, obstacle indicating, checking and measuring.

Using unique cam intermittent construction designed by computer, which ensures die-cutting precision and gripper bar's processing stability.

The main motor is controlled by transducer, which achieves step less speed regulation and smooth operation.

The bearings and chain of main driving, PLC, transducer and all kinds of electric switches are imported ones with good quality.

Many sensors and safe devices are set on the machine to ensure the normal operation and human safety.

Adopt imported pneumatic clutch, long life and low noise, braking stable.

Cooling device for lubricating oil is added which reduces the wear of parts when they are heated, ensures the constant pressure of die-cutting.


Model

MY1020E

Max. Paper Size (mm)

1020X720

Min. Paper Size (mm)

400 X 360

Max. Die-Cutting Size (mm)

1010X710

Max. Die-Cutting Speed (s/h)

6000

Max. Working Pressure (T)

250

Die-Cutting Precision (mm)

±0.1

Max. Feeding Pile (mm)

1300

Max. Delivery Pile (mm)

1240

Sheet Thickness (mm)

Corrugated paper≤4

Cardboard 0.1-1.5

Net Weight (T)

13

Total Power (kw)

16.95
