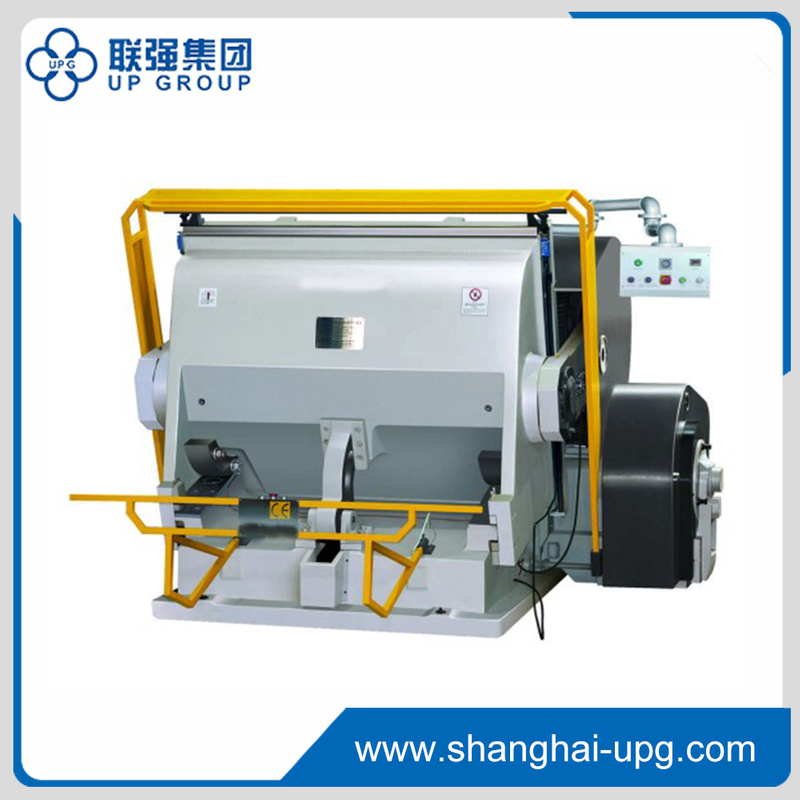

LQML-1600/1800/2000 Type Flat Press Creasing Die Cutting Machine


PDF Export

  • LQML-1600/1800/2000

  • UPG

1.    High strength due to whole body casting with high quality material.
2.    Smooth running, high pressure and low noise with 2-step to 4-step helical gear mechanism.
3.    Single plate electromagnetic clutch is sensitive and reliable.
4.    Operational altitude is reasonably arranged, moving-bed opens to its maximum.
5.    Electrical system is designed in conformity with IEC standard.
6.    Single, continuous operation and opening delay are available, delay range adjustable.
7.    Reliable safety system,

Model LQML1600 LQML1800 LQML2000
Inside Chase Size 1600x1250mm 1800x1300mm 2000x1400mm
Max. Die Cutting Size 1600x1250mm 1800x1300mm 2000x1400mm
Speed 16±2 16±2 16±2
Gross Weight Of Machine 12000kg 14200kg 16500kg
Max. Rule Length 43m <50m 58m
Overall Machine Dimensions 2700x2300x2180mm 2900x2300x2180mm 3500x2200x2180mm
Motor Power 11kw 15kw 15kw
Allotment Of Chase Active Active Active
