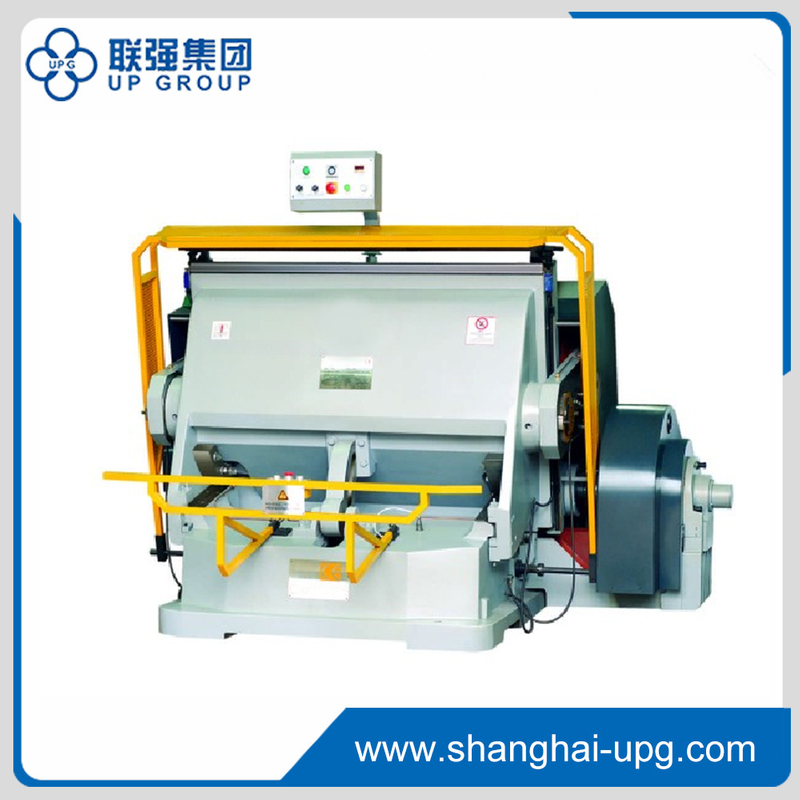

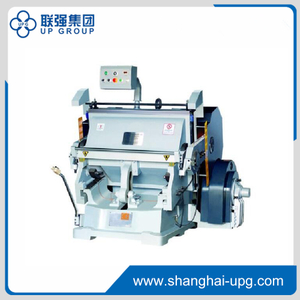

LQML-1300/1400/1500 Type Flat Press Creasing Die Cutting Machine


PDF Export

  • LQML-1300/1400/1500

  • UPG

1.    High strength due to whole body casting with high quality material.
2.    Smooth running, high pressure and low noise with 2-step to 4-step helical gear mechanism.
3.    Single plate electromagnetic clutch is sensitive and reliable.
4.    Operational altitude is reasonably arranged, moving-bed opens to its maximum.
5.    Electrical system is designed in conformity with IEC standard.
6.    Single, continuous operation and opening delay are available, delay range adjustable.
7.    Reliable safety system,

Model LQML1300 LQML1400 LQML1500
Inside Chase Size 1300x920mm 1400x1000mm 1500x1060mm
Max. Die Cutting Size 1300x920mm 1400x1000mm 1500x1060mm
Speed 23±2 23±2 23±2
Gross Weight Of Machine 6000kg 6800kg 7000kg
Max. Rule Length 38m 38m 40m
Overall Machine Dimensions 2350x2050x1900mm 2450x2050x1900mm 2540x2050x1900mm
Motor Power 7.5kw 7.5kw 11kw
Allotment Of Chase Active Active Active
