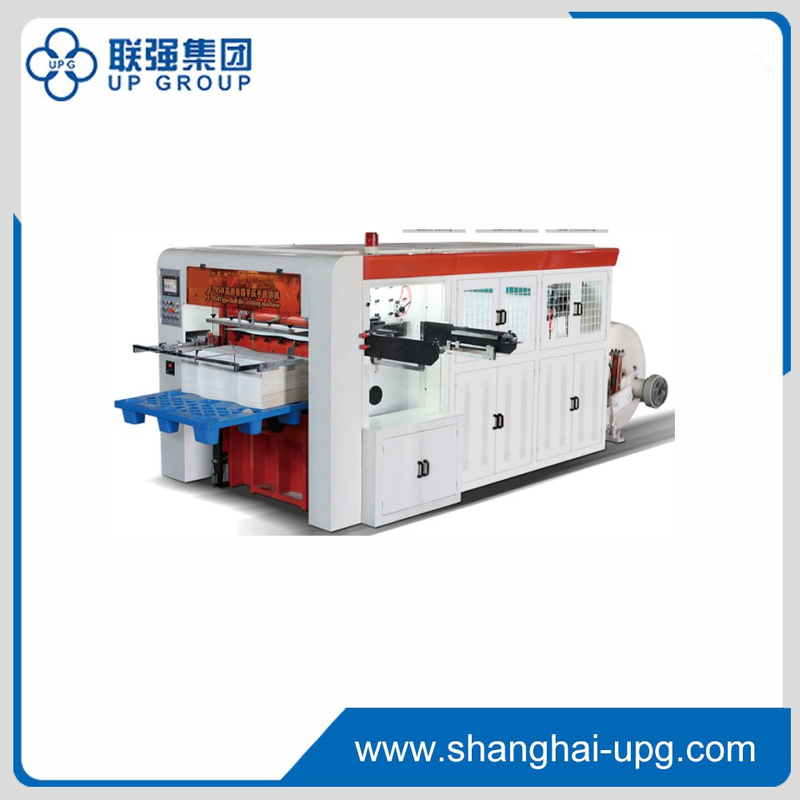

LQ-PY-950/1100/1200/1300 Series High Speed Roll Die-Cutting Machine

This machine use worm gear,worm structure, make the production of products of high quality and low consumption , high safety. This machine have automatic control feeding and the color code tracking, make the die cutting very precision. The pneumatic locking knife mold make the operation and change molds are very convenient . It is suitable for cutting cigarette box, medicine box, envelopes, paper cups, paper bowl, gift bags and all kinds of paper and paper plastic products (this machine also can cut corrugated paper).
Availability:
Quantity:

PDF Export

LQ-PY-950/1100/1200/1300 Series High Speed Roll Die-Cutting Machine
  • LQ-PY-950/1100/1200/1300

  • UPG

This machine use worm gear,worm structure, make the production of products of high quality and low consumption , high safety. This machine have automatic control feeding and the color code tracking, make the die cutting very precision. The pneumatic locking knife mold make the operation and change molds are very convenient . It is suitable for cutting cigarette box, medicine box, envelopes, paper cups, paper bowl, gift bags and all kinds of paper and paper plastic products (this machine also can cut corrugated paper).

type 950
Die-cutting precision ±0.10mm
Working max. speed 90-120times/min
Press mark max. area 950mm *550mm
Applicable paper type 120-600g
Total power 11KW
Main motor power 7.5KW
Dimemsion 4.8m*2.2m*2.3m
Weight 7T
