DFA-31/DFA-21 Double Wire Forming Machine

Share to:

DFA-31/DFA-21 Double Wire Forming Machine

This machine is applied to the mass production of double wire loops, which is widely used in notebooks, workbook, calendars.

Brand:
UPG

This machine is applied to the mass production of double wire loops, which is widely used in notebooks, workbook, calendars.
1)    Applicable to nylon-coated wire, tinned wire and galvanized wire.
2)    High quality products, and no damage to coated layer of the wire.
3)    Different sizes of coils in the same pitch can be produced by replacing the forming mould.
4)    Accurate pitch, standard shape.
5)    Reliable operation, high versatility.

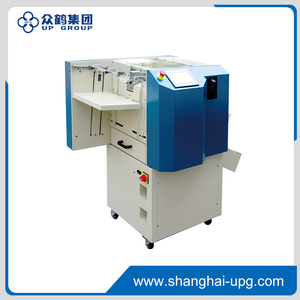

LQ-Digi Automatic Office Paper Punching Machine

LQ-MP-600 Manual Punching Machine

LQ-SSB-420M High Speed Spiral Wire Forming and Binding Machine

LQ-DCB-360 Double Wire Binding Machine for Notebook and Wall Calendar

LQ-DCA-520 Double Wire Binding Machine for Notebook and Wall Calendar

LQ-DCA-520 Double Wire Binding Machine for Notebook and Calendar

LQ-DFA-31/21 Double Wire Forming Machine

LQ-SPB-550 High Speed Punching Machine

LQ-MSB300 Semi-Automatic Soft Ring Binder

LQ-SS360 Soft Spiral Binding Machine

LQ-PS420 Plastic Spiral Forming and Binding Machine

LQ-MF-SDM520 Double Wire Binding Machine

LQ-MF-SDM360 Double Wire Binding Machine (without mold)

LQ-PBW580/580S Double Wire Punching and Binding Machine

LQ-SRB300 Soft Ring Punching and Binding Machine

LQ-PBS420 Spiral Punching and Binding Machine

LQ-DB1500 Double Wire Forming&Binding Machine

Size	pitch	Nylon coated wire (mm)	Tinned wire(mm)	Wire dia(mm)	Binding thickness(mm)	Binding page(page)
1/4	3:1	0.70	0.65	6.4	4.9	45
5/16	3:1	0.80	0.70	7.9	6.3	60
3/8	3:1	0.80	0.75	9.5	7.9	70
7/16	3:1	0.90	0.80	11.1	9.3	85
1/2	3:1	0.90	0.85	12.7	10.9	100
9/16	3:1	1.00	0.90	14.3	12.2	120
5/8	2:1	1.10	1.00	15.9	13.4	130
3/4	2:1	1.20	1.10	19.1	16.6	160
7/8	2:1	1.20	1.20	22.2	19.7	190
1	2:1	1.25	1.20	25.4	22.9	225
1 1/4	2:1	1.50	1.45	31.8	27.8	270

Speed		350~550 loops/min
Total power	Forming machine	0.75Kw
	Spooling machine	0.37Kw
	Paper cutting machine	0.25Kw
power		3PH 380V 50/60 HZ(other voltage on request)
Net weight		500Kg
Machine dimension	Forming machine	2400×650×1700 mm
	Spooling machine	1300×1000×1200mm
	Paper cutting machine	600x500x1400mm
