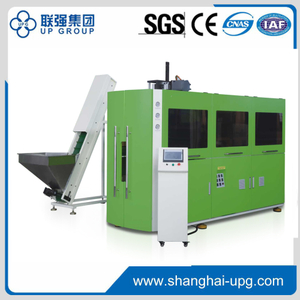

LQ-3S/4S/6S Two-step Multi functional Full-automatic Blow Moulding Machine Product on UP Group

Specially designed PET screw & barrel, highly increases the plasticizing speed and shot weight, lowers the plasticizing temperature and AA value. Also significantly improves the shrinkage of perform, while achieves better transparency.
Availability:
LQ-3S/4S/6S Two-step Multi functional Full-automatic Blow Moulding Machine Product on UP Group
  • LQ-3S/4S/6S

  • LQ

Specially designed PET screw & barrel, highly increases the plasticizing speed and shot weight, lowers the plasticizing temperature and AA value. Also significantly improves the shrinkage of perform, while achieves better transparency.

Variety machine specifications, suitable for different kinds of perform mold.

Stable performance and high productivity.

Increasing ejecting tonnage and ejector stroke, suitable for different kinds of PET perform mold.

With optional synchronous pressure retaining system, can improve 15%~25% more capacity.

Providing full range of PET bottle technology and equipment, including: injection molding machine, blowing machine, perform mold and other relevant equipment.


INJECTION   UNIT



Screw diameter

mm

50

Shot weight(pet)

g

500

Injection pressure

MPa

136

Injection rate

g/s

162

Screw L/D ratio

L/D

24.1

Screw speed

r.p.m

190

CLAMPING   UNIT



Clamp tonnage

KN

1680

Toggle stroke

mm

440

Mould thickness

mm

180-470

Space between tie bars

mm

480X460

Ejector stroke

mm

155

Ejector tonnage

KN

70

Ejector number

Piece

5

Hole diameter

mm

125

Other



Heat power

KW

11

Max.pump pressure

MPa

16

Pump motor power

KW

15

Valve size

mm

16

Machine dimension

m

5.7X1.7X2.0

Machine weight

t

5.5

Oil tank   capacity

L

310
