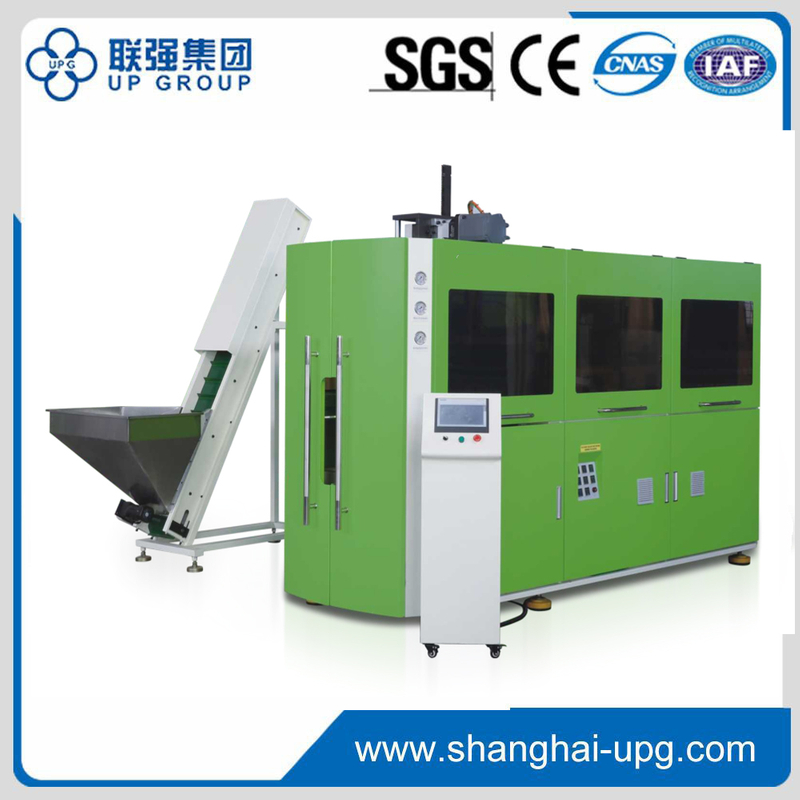

LQB-3
LQ
Features:
1.The machine adopts human-computer interface to control the whole working procedures, auto-loading, auto blowing, auto dropping. Action cylinders are all assembled with magnetic induction switches.Connect with PLC to control every step and test every cylinder. Next action will continue after the former step done, If former step is not finished, alarm automatically and do not work. PLC displays problem position.
2.According to special demand, adopt cross double crank pressed clamping, with strong clamping force. Mould open stroke can be adjustable according
3.Fast speed, accurate position, smooth action.to the bottle size to save the time.group of temperature separately.
4.Far infrared heater lamps have strong penetrations , preforms are heated uniformly while rotating, PLC or electronic pressure adjustor controls each
5.The air supply system consists of slight blow, high pressure blow, low pressure actions, to supply enough air for different products.
6.Particular pre-heater design makes prefrom close while heating. Change space, shorten heating tunnel and reduce energy consumption according to the bottle size while blowing.
7.Automatic lubrication oil device protects the machine well.simple repair, safety etc.
8.Production workmanship process is fully automatic to make best quality and pollution-free. it holds less investment, high efficiency, easy operation.
Features:
1.The machine adopts human-computer interface to control the whole working procedures, auto-loading, auto blowing, auto dropping. Action cylinders are all assembled with magnetic induction switches.Connect with PLC to control every step and test every cylinder. Next action will continue after the former step done, If former step is not finished, alarm automatically and do not work. PLC displays problem position.
2.According to special demand, adopt cross double crank pressed clamping, with strong clamping force. Mould open stroke can be adjustable according
3.Fast speed, accurate position, smooth action.to the bottle size to save the time.group of temperature separately.
4.Far infrared heater lamps have strong penetrations , preforms are heated uniformly while rotating, PLC or electronic pressure adjustor controls each
5.The air supply system consists of slight blow, high pressure blow, low pressure actions, to supply enough air for different products.
6.Particular pre-heater design makes prefrom close while heating. Change space, shorten heating tunnel and reduce energy consumption according to the bottle size while blowing.
7.Automatic lubrication oil device protects the machine well.simple repair, safety etc.
8.Production workmanship process is fully automatic to make best quality and pollution-free. it holds less investment, high efficiency, easy operation.
LQB-3 | ||||
Theoretical Output | Pcs/h | 3300 | ||
PRODUCT | Max. Volume | L | 1.5 | |
Max. Height | mm | 360 | ||
Max. Diameter | mm | 105 | ||
MOULD | Number of cavities | / | 3 | |
Mould plate dimension(LxH) | mm | 430×360 | ||
Mould thickness | mm | 188 | ||
Mould opening stroke | mm | 110 | ||
ELECTRICAL | Power | 220-380V 50-60Hz | ||
Total Power | KW | 18 | ||
Heating Power | KW | 15 | ||
AIR SYSTEM | Operation Pressure | Mpa | 0.8-1.0 | |
Action Air Consuming | M3/min | ≥1.6 | ||
Blowing pressure | Mpa | 2.6-4.0 | ||
Blowing Air Consuming | M3/min | ≥2.4 | ||
MACHINE | Main body dimension(LxWxH) | M | 2.7×1.45×2.5 | |
Main body weight | KG | 2200 | ||
Preform autoloader | M | 1.9×1.9×2.2 | ||
Preform automatic weight | KG | 200 |
