LQ series
LQ

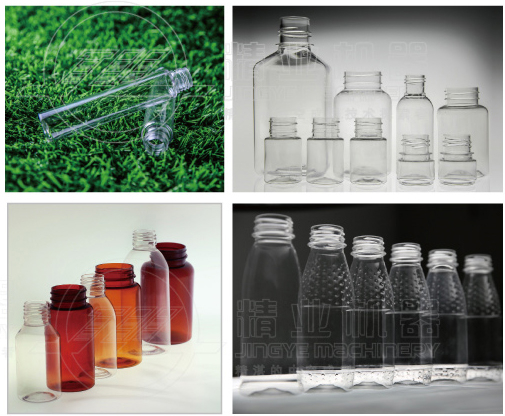

The AS series model uses three-station structure and is suitable for producing plastic containers such as PET, PETG, etc. It is mainly used in packaging containers for cosmetics,
pharmaceutical, etc.
"Injection-stretch-blow molding" technology consists of machines, molds, molding processes, etc. Liuzhou Jingye Machinery Co., Ltd. has been researching and developing this technology for more than ten years.

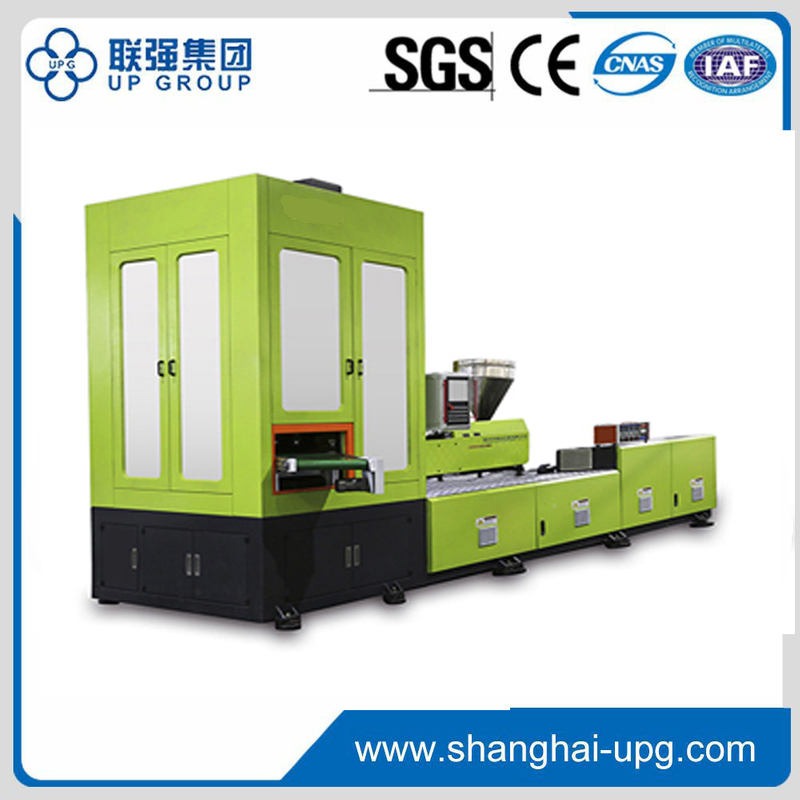

Our "Injection-Stretch-Blow Molding Machine" is three-station: injection preform, strentch & blow, and ejection.
This single stage process can save you much energy becuase you do not have to reheat the preforms.
And can ensure you better bottle appearance, by avoiding preforms scratching against each other.
The AS series model uses three-station structure and is suitable for producing plastic containers such as PET, PETG, etc. It is mainly used in packaging containers for cosmetics,
pharmaceutical, etc.
"Injection-stretch-blow molding" technology consists of machines, molds, molding processes, etc. Liuzhou Jingye Machinery Co., Ltd. has been researching and developing this technology for more than ten years.
Our "Injection-Stretch-Blow Molding Machine" is three-station: injection preform, strentch & blow, and ejection.
This single stage process can save you much energy becuase you do not have to reheat the preforms.
And can ensure you better bottle appearance, by avoiding preforms scratching against each other.
Item | Unit | Data | |||||||||
Type of machine | 75AS | 88AS | 110AS | ||||||||
Suitable Material | PET/PETG | ||||||||||
Screw Diameter | mm | 28 | 35 | 40 | 35 | 40 | 45 | 50 | 50 | 55 | 60 |
Theoretical Injection Capacity | cm³ | 86.1 | 134.6 | 175.8 | 134.6 | 175.8 | 310 | 390 | 431.7 | 522.4 | 621.7 |
Injection Capacity | g | 67 | 105 | 137 | 105 | 137 | 260 | 320 | 336.7 | 407.4 | 484.9 |
Screw Speed | r/min | 0-180 | 0-180 | 0-180 | |||||||
Injection Clamping Force | KN | 151.9 | 406.9 | 785 | |||||||
Blow Clamping Force | KN | 123.1 | 203.4 | 303 | |||||||
Motor Capacity | KW | 26+17 | 26+26 | 26+37 | |||||||
Heater Capacity | KW | 8 | 11 | 17 | |||||||
Operating air pressure | MPa | 2.5-3.0 | 2.5-3.0 | 2.5-3.0 | |||||||
Cooling Water pressure | MPa | 0.2-0.3 | 0.2-0.3 | 0.2-0.3 | |||||||
Dimension of Machine | mm | 4350x1750x2800 | 4850x1850x3300 | 5400x2200x3850 | |||||||
Machine Weight | Kg | 6000 | 10000 | 13500 |
