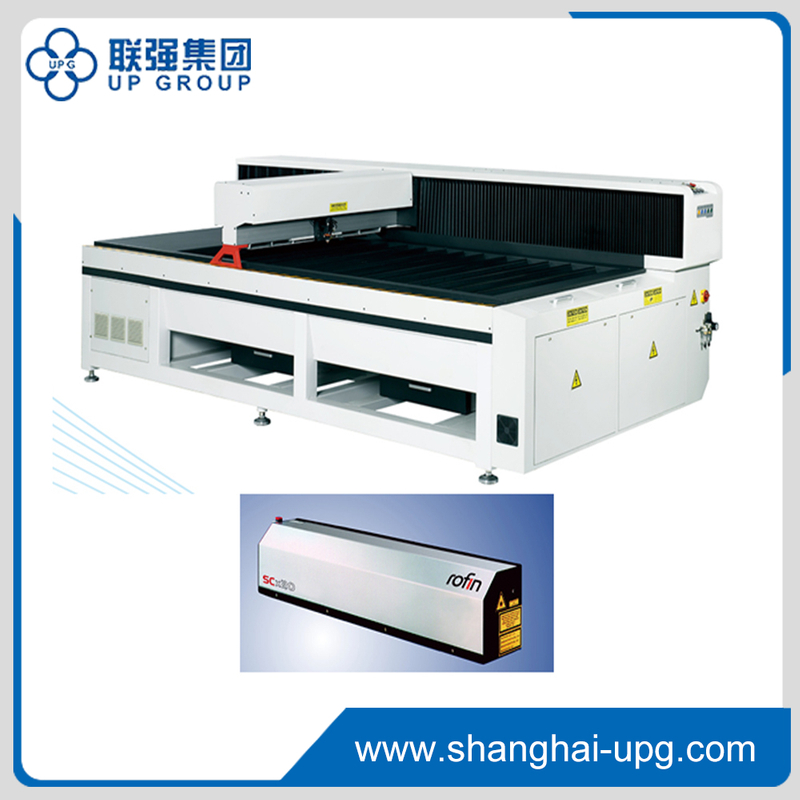

LQ-A1225
UPG
LQ-A1225/A1530 Main Feature
Touch screen control system
Remote controller
Anti-collision following cutting system
Anti-reflection system
Partitioned exhaust system
Red light positioning
Imported high precision ball screw driving system
Japan Mitsubishi servo system
Germany imported RF laser slab, Rofin
LQ-A1225/A1530 Main Feature
Touch screen control system
Remote controller
Anti-collision following cutting system
Anti-reflection system
Partitioned exhaust system
Red light positioning
Imported high precision ball screw driving system
Japan Mitsubishi servo system
Germany imported RF laser slab, Rofin
Model | LQ250 A1225/1530 | LQ350 A1225/1530 | LQ550 A1225/1530 | LQ650 A1225/1530 |
Laser Power | 250W (Imported Laser Tube) | 350W (Imported Laser Tube) | 550W (Imported Laser Tube) | 650W (Imported Laser Tube) |
Working Area | 1250x2500mm | 1250x2500mm | 1250x2500mm | 1250x2500mm |
1500x3000mm | 1500x3000mm | 1500x3000mm | 1500x3000mm | |
Positing Accuracy | ±0.05 | ±0.05 | ±0.05 | ±0.05 |
Positing Speed | 20mm/min | 20mm/min | 20mm/min | 20mm/min |
Power Supply | 380±10% 20A | 380±10% 25A | 380±10% 30A | 380±10% 35A |
Overall Dimension | 2000 x 3900 x 1400mm | 2000 x 3900 x 1400mm | 2000 x 3900 x 1400mm | 2000 x 3900 x 1400mm |
2250 x 4700 x 1400mm | 2250 x 4700 x 1400mm | 2250 x 4700 x 1400mm | 2250 x 4700 x 1400mm |
