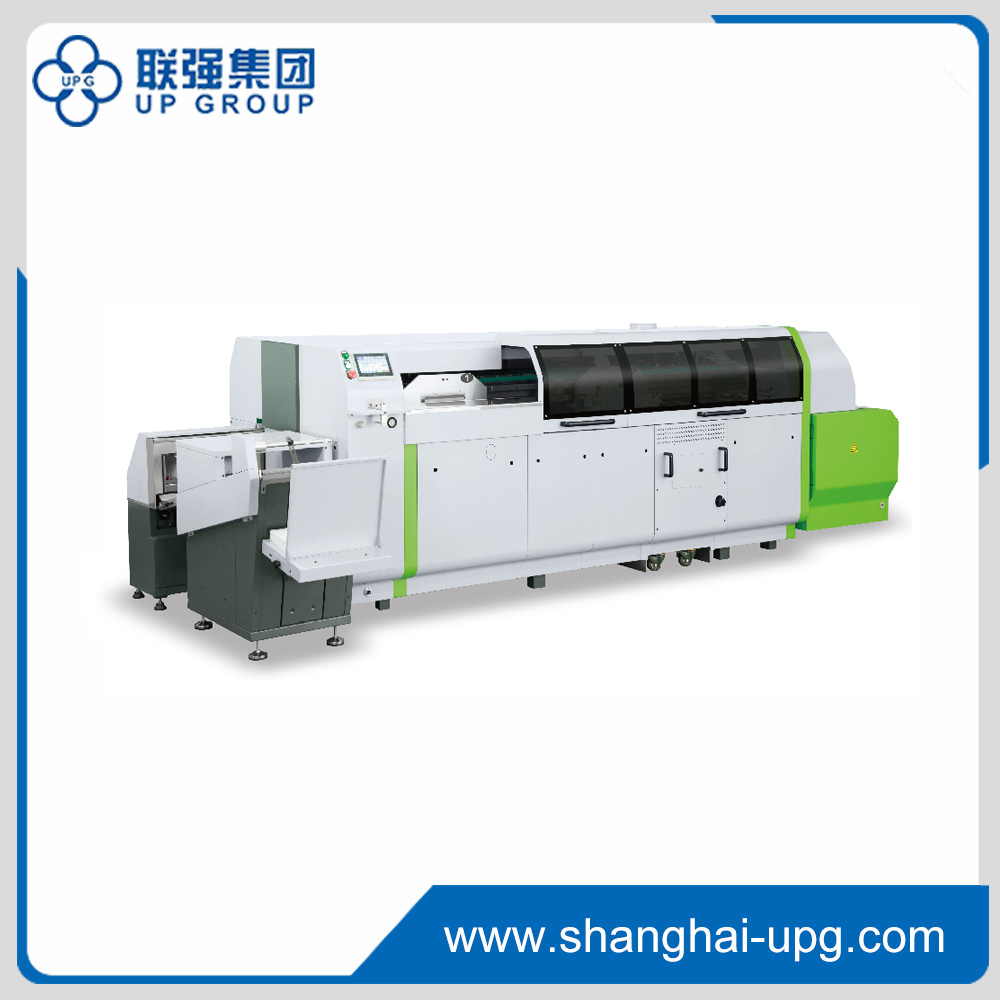

LQ-BT50/5FE
UPG
This machine adopted a computer operation system, a mill chamber construction, side rubber wheel, indentation wheel, book-wrapping table.cover size adjuster, auto computer setter. As a result it can finish all the processes in one minute. lt is controlled by a frequency controller and PLC It is assembled with photoelectric cells, auto tester and touch screen displayer. There is digital display function in the glue breaking function back and forth, mill back, glue breaking glue pot and covering adjustment in gluing in the back. The press track wheel has micro adjustment functions constantly, the book output is using robots vertical collecting way and protects the book back forming in better way. This machine not only uses lock line gluing packaging, but also unwiring gluing packaging, which is the deal equipment for the unwiring gluing packaging and wiring packaging in the printing factories of wide-range universities.
This machine is offered the book core by manpower, and automatically finishes 10 procedures below:
1.Book clamp automatic control
2.Miling and notching(Automatic control)
3 .Back mucus coating.(Gluing pot automatic adjust)
4.Side mucus coating.(Automatic adjust)
5.Cover and book core compossing(Automatic adjust)
6.Cover impressing,(Automatic adjust)
7.Cover packing.(Automatic adjust)
8.Finshed-product output;(Automatic adjust)
9.Book spine pressing;
10.Cooling, till final nice products.
Heavy-duty type: The machine work, the manipulator automatic supply book core, Automatically complete the following process:
1.Strong wearing resistance
2.High precision
3.Great clamp force
4. Steady top down
5.Indeformable front and back clamp plates
At present, it is the most advanced one among the international similar machines, and the upper-sealing clamp mechanism has won several national patents.
This machine adopted a computer operation system, a mill chamber construction, side rubber wheel, indentation wheel, book-wrapping table.cover size adjuster, auto computer setter. As a result it can finish all the processes in one minute. lt is controlled by a frequency controller and PLC It is assembled with photoelectric cells, auto tester and touch screen displayer. There is digital display function in the glue breaking function back and forth, mill back, glue breaking glue pot and covering adjustment in gluing in the back. The press track wheel has micro adjustment functions constantly, the book output is using robots vertical collecting way and protects the book back forming in better way. This machine not only uses lock line gluing packaging, but also unwiring gluing packaging, which is the deal equipment for the unwiring gluing packaging and wiring packaging in the printing factories of wide-range universities.
This machine is offered the book core by manpower, and automatically finishes 10 procedures below:
1.Book clamp automatic control
2.Miling and notching(Automatic control)
3 .Back mucus coating.(Gluing pot automatic adjust)
4.Side mucus coating.(Automatic adjust)
5.Cover and book core compossing(Automatic adjust)
6.Cover impressing,(Automatic adjust)
7.Cover packing.(Automatic adjust)
8.Finshed-product output;(Automatic adjust)
9.Book spine pressing;
10.Cooling, till final nice products.
Heavy-duty type: The machine work, the manipulator automatic supply book core, Automatically complete the following process:
1.Strong wearing resistance
2.High precision
3.Great clamp force
4. Steady top down
5.Indeformable front and back clamp plates
At present, it is the most advanced one among the international similar machines, and the upper-sealing clamp mechanism has won several national patents.
Binding size | Max:450*308mm Min:140*105mm |
Binding thickness | 2-50mm |
Binding speed | Max:2100Books/ Hour |
Power required | 14Kw |
Weight | 2200Kg |
Dimension | 4390*2130*1350mm |
Binding size | Max:450*308mm Min:140*105mm |
Binding thickness | 2-50mm |
Binding speed | Max:2100Books/ Hour |
Power required | 14Kw |
Weight | 2200Kg |
Dimension | 4390*2130*1350mm |
