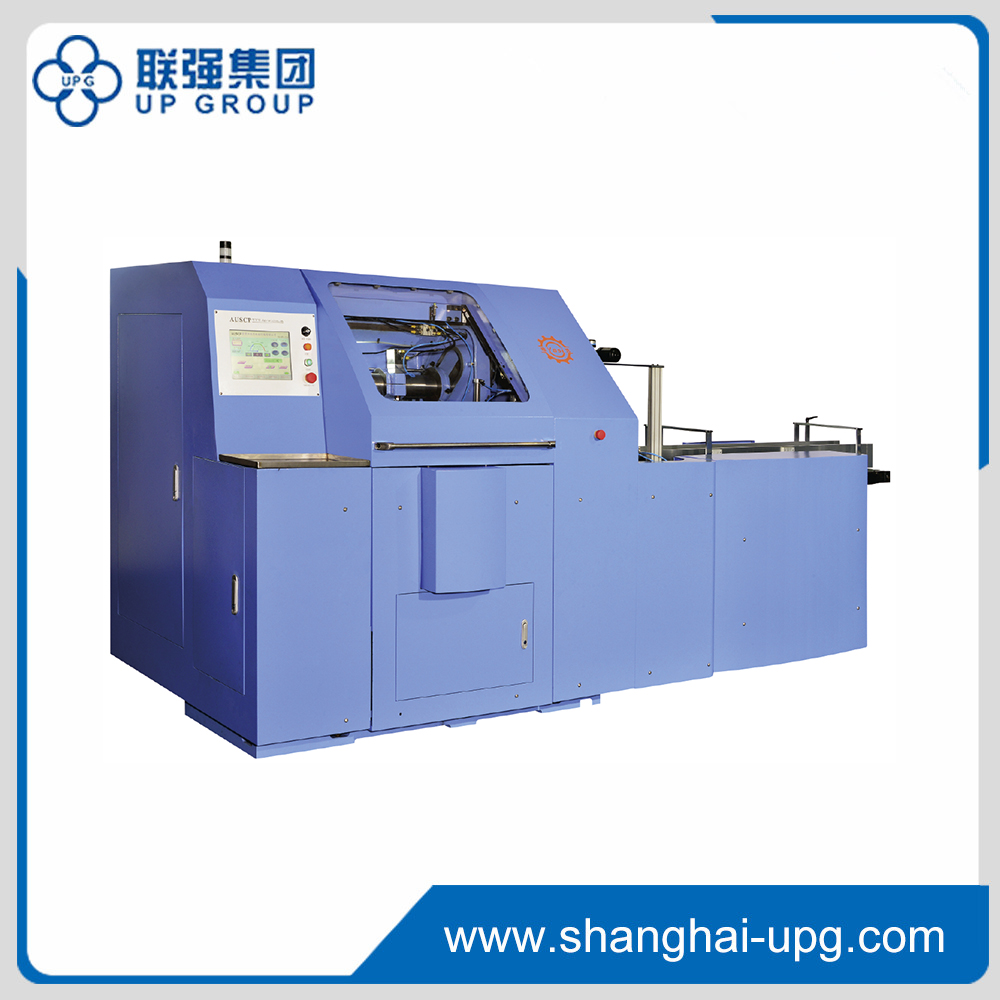

LQ-AUSCP-QS3000
UPG
Functions & features:
· Automatic three-knife book trimming. By adjusting the size of the book pusher, selecting the appropriate cutting table base template, and adjusting the size of side knives, the book is pushed into the cutting table and automatically trim the two sides. Then the book is sent to the conveyor belt to be further trimmed and completed.
· Automatic template adjustment: Simply input the book's length, width, and height into the computer and initiate the adjustment process by pressing the corresponding button. The machine will automatically calibrate itself to the desired size.
· Integrated cutting table base: Choose a base size and change it without changing bases, increasing work efficiency.
· Scratch & fading prevention function: The book is lifted by the top and bottom clamps, preventing contact with the table, reducing friction, and avoiding the cover from dragging or fading.
·Stacking function (optional): Books are sent to the stacking machine and automatically sorted into piles of the same height before being removed.
· Automatic scraps purge function: The dust and paper scraps will be blown into the waste bin by the blower.
· Automatic lubrication function: The centralized oil supply lubrication system has an alarm when oil pressure is low. It is equipped with a lubricant feeding device to ensure timely and adequate lubrication when the machine is running.
· Side blade cleaning function (optional): An automatic silicon oil spraying mechanism is available to lubricate the side blades, preventing books from sticking together.
· Can be connected to the binding assembly line for paperback and hardcover books or used standalone, suitable for trimming various paperback books, hardcover books, book blocks, and thin books.
Technical Data:
Cutting Speed | 15-50 books/min |
Max. Size of Uncut Edge | 440×320 mm |
Finished Size | Max: 420×285 mm Min: 140×105 mm |
Cutting Height | Max: 100 mm Min: 4 mm |
Workbench Height | 900 mm |
Power Consumption | 20 kw |
The Input Power | 15 kw |
Standard Voltage | 380V; 220V; 50Hz |
Operating Current | 30 A |
Air Consumption (external supply) | Volume 970 L/min Operating pressure 6 bar Max. pressure 10 bar |
Net Weight | 4000 kg |
Dimensions | 3800×3400×2100 mm |
