LQ-DTJ-G
UPG

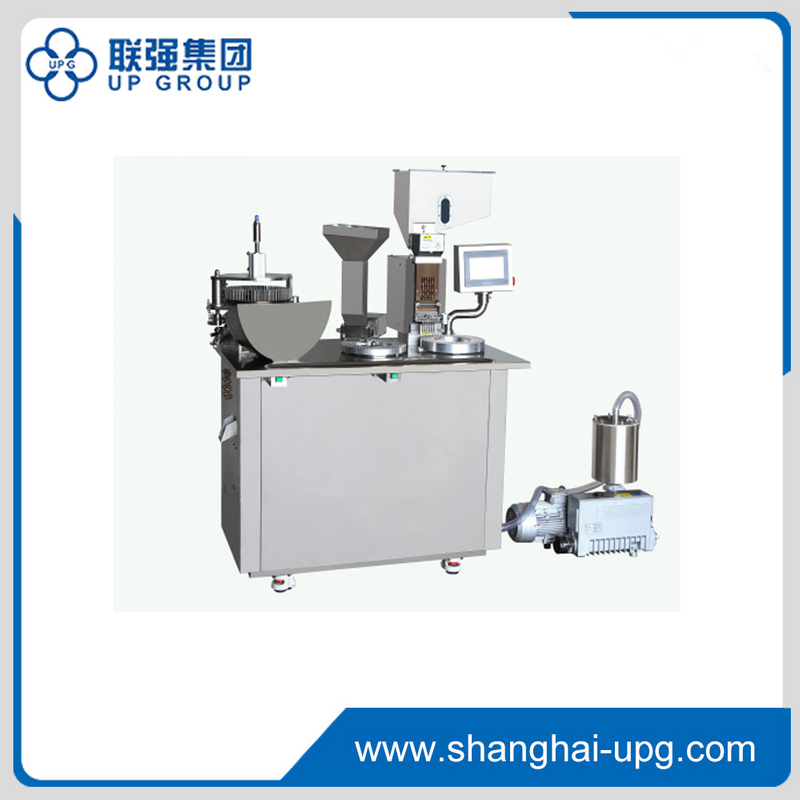

Semi-auto pellet capsule filling machine is a new type of high efficiency capsule filling equipment . The capsule orientating assembly model adopts by all cylindrical shaw positioning design, which can save time of testing mould from 45 minutes to 10 minutes.
This machine adopts touch screen, PLC,frequency control device, the associated control of electricity and gas to replace the manual filling and reduce the labor intensity, which is suitable for the minor enterprises, institutions of drug development and hospital reparation room etc.
Semi-auto pellet capsule filling machine is a new type of high efficiency capsule filling equipment . The capsule orientating assembly model adopts by all cylindrical shaw positioning design, which can save time of testing mould from 45 minutes to 10 minutes.
This machine adopts touch screen, PLC,frequency control device, the associated control of electricity and gas to replace the manual filling and reduce the labor intensity, which is suitable for the minor enterprises, institutions of drug development and hospital reparation room etc.
Model | LQ-DTJ-G |
Mould Changing Time | 5-10mins |
Capacity | 10000-25000pcs/h |
Applicable Capsules | 000#、00L#、00#、0L#、0#、1#、2#、3#、4# |
Reagent Type | Pellets、Powder、Grain |
Power | 4.0kw |
Air Pressure | 0.03m3/min,0.7Mpa |
Vacuum Pump | 40m3/h |
Overall Dimension (L*W*H) | 1140×700×1630mm |
Net Weight | 430kg |
Model | LQ-DTJ-G |
Mould Changing Time | 5-10mins |
Capacity | 10000-25000pcs/h |
Applicable Capsules | 000#、00L#、00#、0L#、0#、1#、2#、3#、4# |
Reagent Type | Pellets、Powder、Grain |
Power | 4.0kw |
Air Pressure | 0.03m3/min,0.7Mpa |
Vacuum Pump | 40m3/h |
Overall Dimension (L*W*H) | 1140×700×1630mm |
Net Weight | 430kg |
