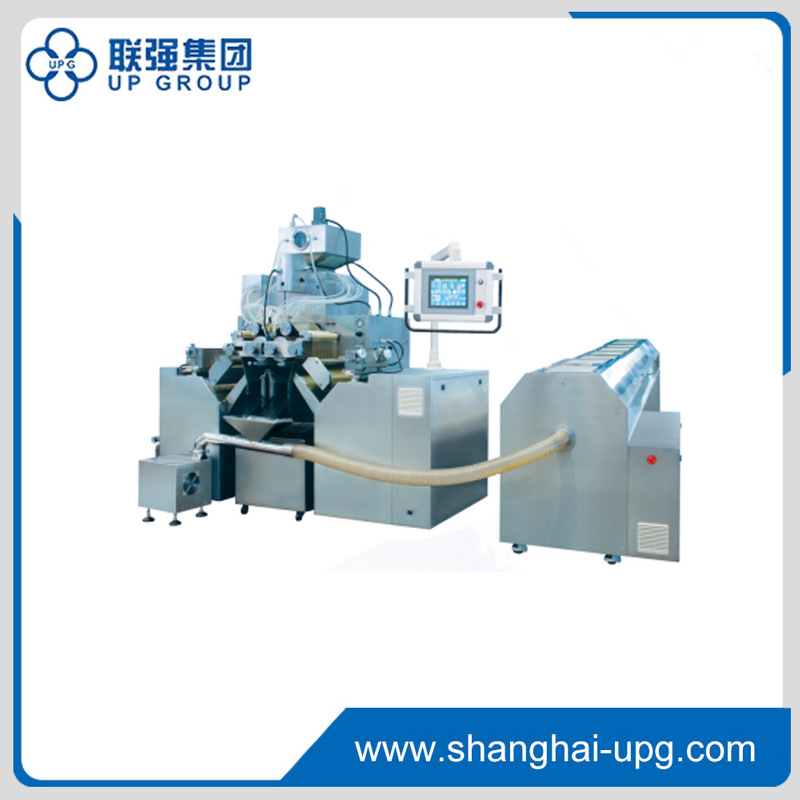

LQ-YWJ Automatic Soft Gelatin Encapsulation Machine

Share to:

LQ-YWJ Automatic Soft Gelatin Encapsulation Machine

Integrated the latest global encapsulation technology with our gelatin encapsulation experience,YWJ fully automatic soft gelatin encapsulation manufacturing facility features leading technology,simple but beautiful appearance,and it is another excellent product by our company for soft gelatin capsule clients around the globe.

Availability:

Quantity:



Inquire Add to Basket PDF Export

Model:
LQ-YWJ
Brand:
UPG

LQ-YPJ Capsule Polisher

LQ-NJP Automatic Hard Capsule Filling Machine For Powder, Pallet

LQ-DTJ Semi-auto Capsule Filling Machine

LQ-DTJ-G Semi-auto Pellet Capsule Filling Machine

Model	LQ-YWJ100-II	LQ-YWJ200-II	LQ-YWJ250-II	YWJ250-IIIA	YWJ315-II
Dimension of Rolling Mould	Φ80×100	Φ113×200	Φ150×250	Φ150×250	Φ157×315
Mould Cavity（8#OV）	90	260	504	504	629
Rotating Speed of Rolling Mould	0～5rpm	0～5rpm	0～5rpm	0～8rpm	0～5rpm
Single Plunger Feeding Volume	0～1.5ml	0～2ml	0～2ml	0～2ml	0～2ml
Plunger Number	6	14	20	20	24
Loading Accuracy	±1.5%	±0.5%	±0.5%	±0.5%	±0.5%
Capacity	21,800pcs/h	62,400pcs/h	115,440pcs/h	205,800pcs/h	150960pcs/h
Power	1.8kw	12kw	12kw	12kw	12kw
Overall Dimension(LWH)	1440×620×1350mm	2000×910×1900mm	2100×960×1900mm	2200×1000×1900mm	2100×1130×1900mm
Weight	400kg	1300kg	1500kg	1500kg	1500kg

Model	LQ-YWJ100-II	LQ-YWJ200-II	LQ-YWJ250-II	YWJ250-IIIA	YWJ315-II
Dimension of Rolling Mould	Φ80×100	Φ113×200	Φ150×250	Φ150×250	Φ157×315
Mould Cavity（8#OV）	90	260	504	504	629
Rotating Speed of Rolling Mould	0～5rpm	0～5rpm	0～5rpm	0～8rpm	0～5rpm
Single Plunger Feeding Volume	0～1.5ml	0～2ml	0～2ml	0～2ml	0～2ml
Plunger Number	6	14	20	20	24
Loading Accuracy	±1.5%	±0.5%	±0.5%	±0.5%	±0.5%
Capacity	21,800pcs/h	62,400pcs/h	115,440pcs/h	205,800pcs/h	150960pcs/h
Power	1.8kw	12kw	12kw	12kw	12kw
Overall Dimension(LWH)	1440×620×1350mm	2000×910×1900mm	2100×960×1900mm	2200×1000×1900mm	2100×1130×1900mm
Weight	400kg	1300kg	1500kg	1500kg	1500kg
