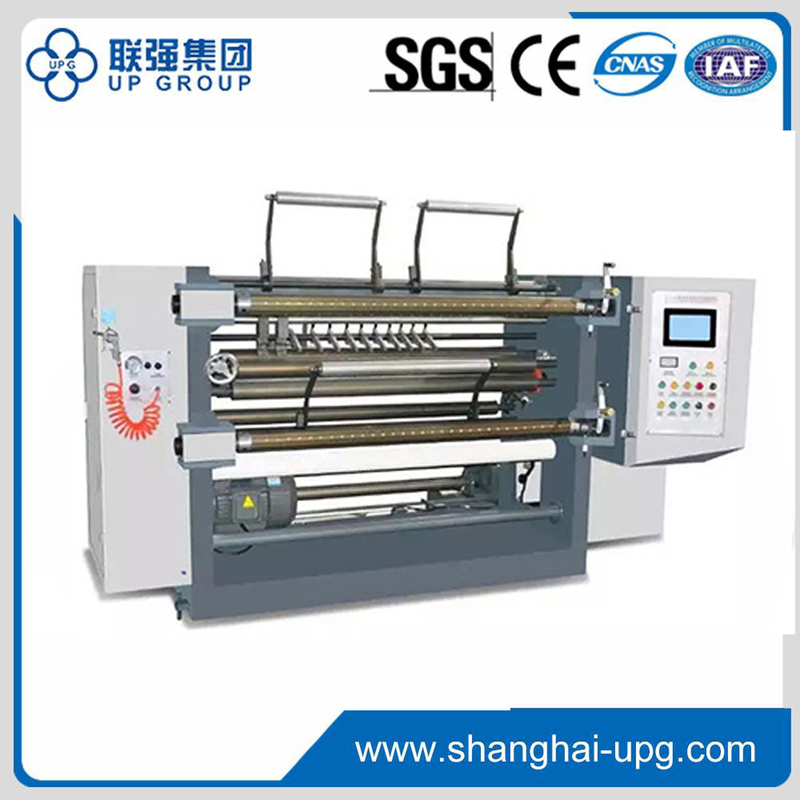

LQ-L-1300 PLC slitting machine

1. Machine component

A. Control way: Independent control box or Control panel on Machine

   B. Unwinding unit:

     1. Unwinding tension control: 5kg magnetic powder brakes

     2. Load/unload way: Air shaft

     3. Edge correction: Automatically

     4. Unwind and Rewind unit in different side

   C. Rewinding unit:

     1. Rewinding tension control: 5kg magnetic powder clutch (2 set)

     2. Tension display: Automatic

     3. Load/unload way: Air shaft

     4. Rewind and press way: Sectional type press roller

   D. Slitting unit:

     1. Blade control way: Manual

     2. Razor blade 10 sets

   E: Main Driver:

    1. Structure: Steel and soft roller

    2. Driving method: Motor traction

    3. Belt synchronism

    4. Convey roller: Aluminum guide roller

   F. Other unit:

 1. Waste material blowing device

 2. Working prevention device
