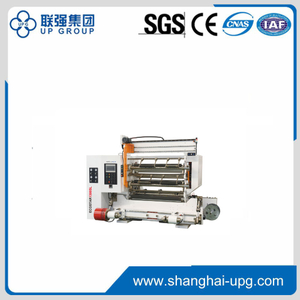

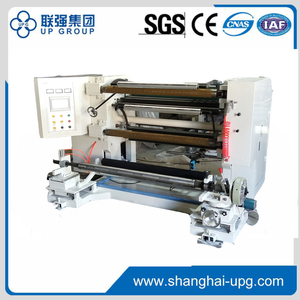

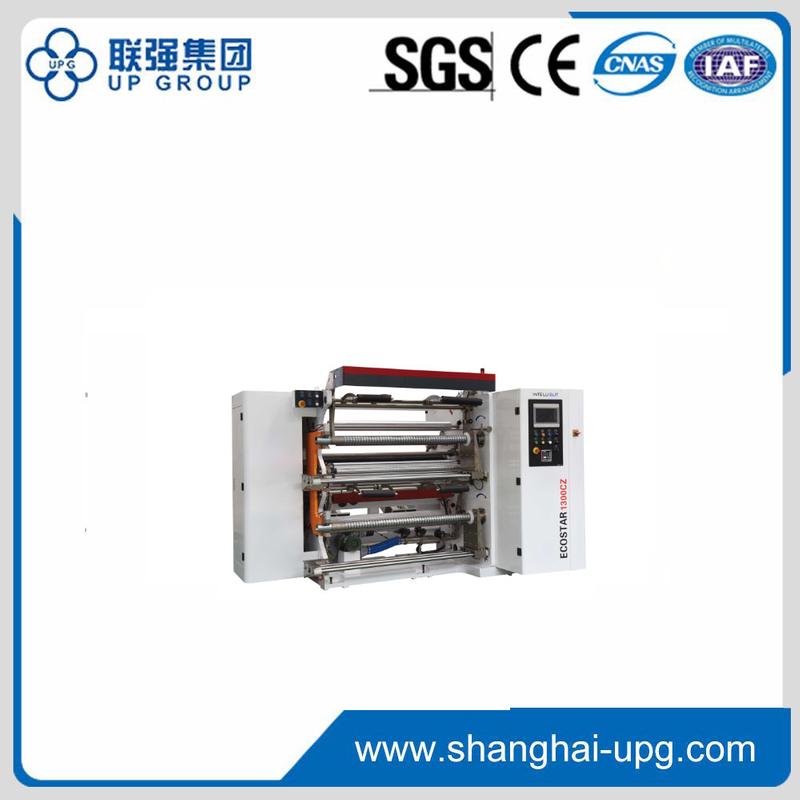

LQ-ST1300
LQ
Kinds of web BOPP, CPP, PET, PE, Paper, laminated film, aluminizing film,Web width:50 – 1250 mm
Plastic film:Plain, Printed, coated or metalized from 20 to 250 micron
Kinds of web BOPP, CPP, PET, PE, Paper, laminated film, aluminizing film,Web width:50 – 1250 mm
Plastic film:Plain, Printed, coated or metalized from 20 to 250 micron
MAJOR FEATURE
Kinds of web | BOPP, CPP, PET, PE, Paper, laminated film, aluminizing film |
Web width | 50 – 1250 mm |
Plastic film | Plain, Printed, coated or metalized from 20 to 250 micron |
Laminates | Various materials from 20 to 250 micron |
Paper & Board | Paper from 40 - 250 gsm |
Rewinding diameter | Max. Φ 580 mm |
Unwinding diameter | Max. Φ 800 mm |
Width of web | Min. 25mm |
Quantity of slit web | Max.12 |
Weight of web | 500 kg |
Slitting speed | Max. 500m/min |
Core diameter | 3 inch & 6 inch |
Power | 380 V, 50 HZ, 3-phase |
Electricity consumption | 15 KW |
Air source | Compressed air 0.6Mpa |
MAJOR FEATURE
Kinds of web | BOPP, CPP, PET, PE, Paper, laminated film, aluminizing film |
Web width | 50 – 1250 mm |
Plastic film | Plain, Printed, coated or metalized from 20 to 250 micron |
Laminates | Various materials from 20 to 250 micron |
Paper & Board | Paper from 40 - 250 gsm |
Rewinding diameter | Max. Φ 580 mm |
Unwinding diameter | Max. Φ 800 mm |
Width of web | Min. 25mm |
Quantity of slit web | Max.12 |
Weight of web | 500 kg |
Slitting speed | Max. 500m/min |
Core diameter | 3 inch & 6 inch |
Power | 380 V, 50 HZ, 3-phase |
Electricity consumption | 15 KW |
Air source | Compressed air 0.6Mpa |
