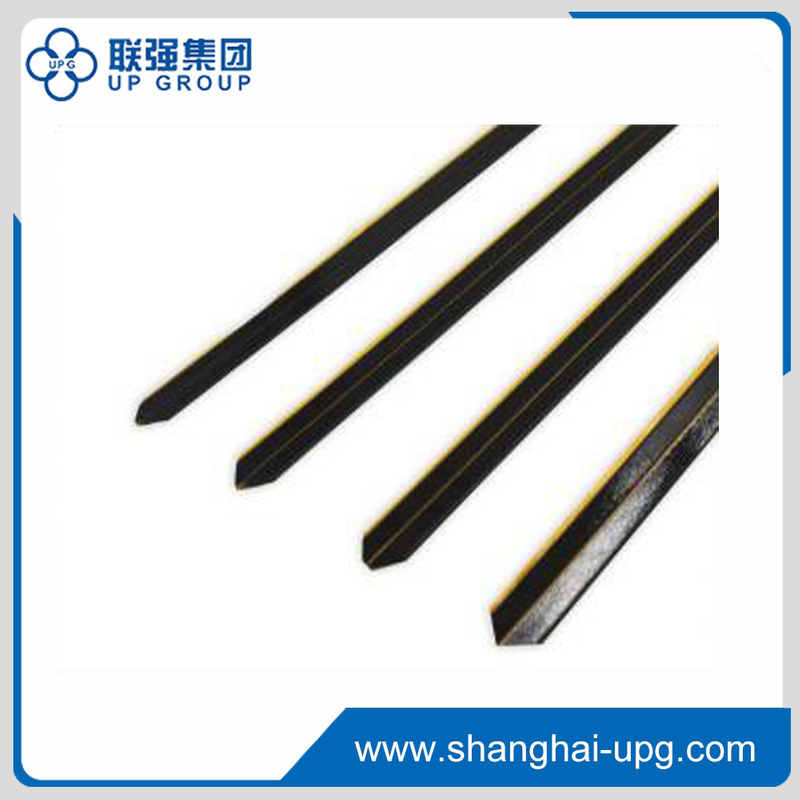

LQ-M
UPG
Imported high density fiber pressboard material for based
High hardness，high temperature resistance ，wear resistance， easy to repair plate，no delamination；
Die-cutting indentation about 50000~80000 times
high die-cutting precision and is suitable for long die plate working.
Scope of application
These creasing matrix are suitable for paper jam.corrugated packaging box and other box products. eg:medicines box,wine box,cosmetics box,toothpaste box and other long plate packaging box.
Standard
Available for 0.6~6mm channel
each pcs length is 70cm，packed in 50pcs/box
13mm base
Off centre
Enabling two creases very close together
Ultra-narrow
Available for 0.6~6mm channel
each pcs length is 70cm，packed in 50pcs/box
9mm base
Double Crease
For job requiring 2 creases close together，special locator fits both creasing rules.
-------------------------------------------------------------------------------------------------------------------------------
Structure of creasing matrix
a. Creasing Matrix Base Board
b. Open protective adhesive tape paper
c. Strong bottom film
d. Creasing Matrix Positing Strip
A. Creasing Matrix Thickness
B. Creasing Matrix Groove Width
The instruction of Creasing matrix
1. First Measure the creasing rule length of the die making boarding.
2. Cut the creasing matrix according to the measuring length，and cut the two ends naturally into 90 degrees sharp angle.
3. Fix the elastic opening of the positioning strip of the creasing matrix to the creasing rules.
4.After the creasing matrix is all clamped，tear off the bottom protective adhesive tape.
5. The die-cutting machine will be installed to start the die-cutting machine once，the creasing matrix is located on the bottom die plate.
6.Tear off the creasing matrix positioning strip，creasing matrix indentation die positioning completed.
How to choose the correct creasing matrix style？
In the process of die-cutting，different types of paper should choose different specifications of creasing matrix，which Paper jam and corrugated cardboard have different selection methods.
Comparison Table for Paper Jam Selection
Paper gram | Paper thickness | Steel creasing rule height | chosen creasing matrix style 0.71mm creasing rule thickness | chosen creasing matrix style 1.05mm creasing rule thickness |
150.00 | 0.21 | 23.60 | 0.2*0.8 | - |
200.00 | 0.28 | 23.50 | 0.3*1.0 | - |
230.00 | 0.32 | 23.50 | 0.3*1.2 | - |
250.00 | 0.35 | 23.50 | 0.3*1.3 | - |
300.00 | 0.42 | 23.40 | 0.4*1.3 | - |
350.00 | 0.50 | 23.30 | 0.5*1.5 | - |
400.00 | 0.56 | 23.30 | 0.5*1.6 | - |
450.00 | 0.63 | 23.20 | 0.5*1.6 | - |
500.00 | 0.70 | 23.10 | 0.6*1.7 | 0.6*1.9 |
500.00 | 0.70 | 23.10 | 0.7*1.7 | 0.7*2.1 |
550.00 | 0.77 | 23.00 | 0.8*1.9 | 0.8*2.3 |
a=creasing matrix thickness
b=groove width of the creasing matrix
c=paper jam thickness
d=creasing rule thickness
e=the flatten corrugated cardboard thickness
a=c b=(c×2)+d
