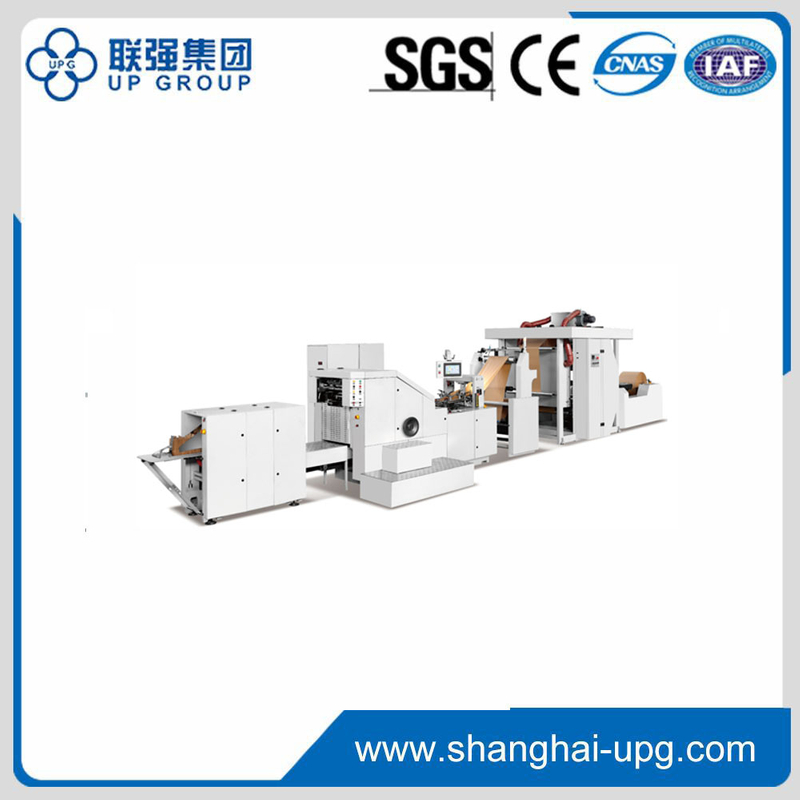

LQ-R190P
LQ
Performance
Rolling feed square bottom paper bag making machine, it uses paper rolling blank or printed asraw materialconsists of automatic centre forward glue, printing tracking, fixed Length andcutting, bottom indentation, folding bottom, bottom glue. Bag bottom forming, finished bagcollecting one time,The machine is more convenient, more efficient, more stab[e, can producea variety of different paper bags, Leisure food bags, bread bags, dried fruit bags and so onenvironmentally friendly paper bag machine equipment.
1.Use France Schneider Touch Screen Human-computer Interface, operate and controleasily.
2.Adopt Germany Original REXROTH PE control, integrated with opticalfiber, ensure high
speed running steadily.
3. Germany Original REXROTH Servo Motor and Germany OriginalSIEK Photoelectric Eye
correction, tracking printing bag accurately.
4.Raw materialLoad adopt Hydraulic pressure cylinder up and down structure, unwinding
adopt auto tension control
5.Raw materialunwinding EPE adopt Italy SELECTRA, Reduce adjustment time.
Specification
Model | LQ-R190P |
Paper bag length | 190-370mm |
Paper bag width | 80-200 mm |
Paper bag bottom width | 50-105mm |
Paper thickness | 50-130g/m² |
Machine speed | 30-260pcs/min |
Paper bag speed | 30-200mm |
Paper roll width | 280-640mm |
Paper Bag diameter | 1200mm |
Machine power | 380V3 phase 4 wire 14kw |
Machine weight | 6000kg |
Machine size | 8500x2100x1600mm |
