LQ-R330/450
LQ

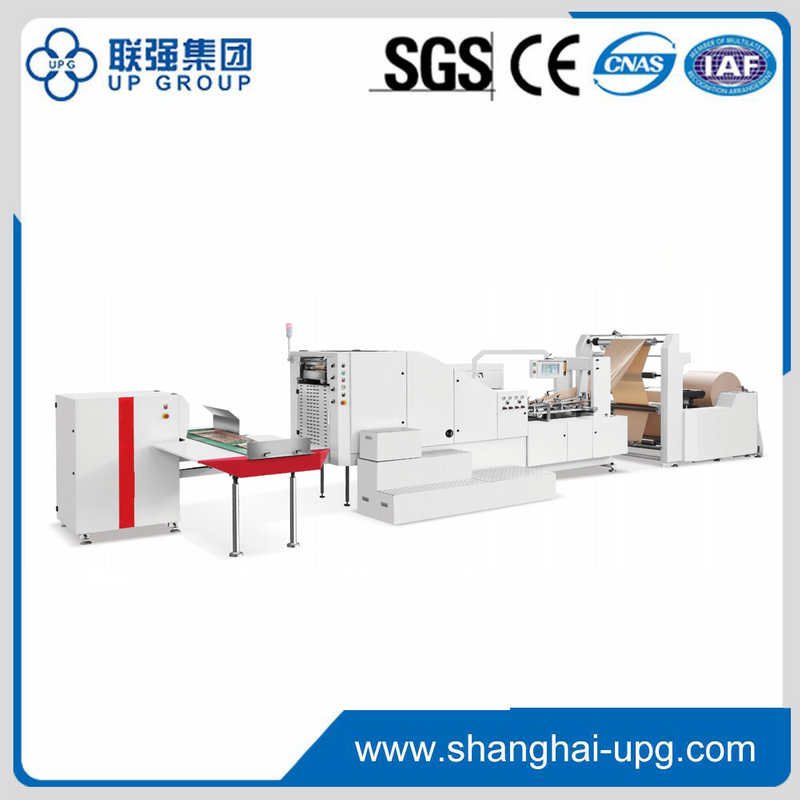

Rolling feed square bottom paper bag making machine, it uses paper roll in blank or printed as raw material. consists of automatic centre forward glue, printing tracking, fixed length and cutting, bottom indentation, folding bottom, bottom glue. Bag bottom forming, finished bag collecting one time,The machine is more convenient, more efficient, more stable, can produce a variety of different paper bags, leisure food bags, bread bags, dried fruit bags and so on environmentally friendly paper bag machine equipment.
√ Use France Schneider Touch Screen Human-Computer Interface, operate and control easily.
√ Adopt Germany Original REXROTH PC Control, integrated with optical fiber, ensure high speed running steadily.
√ Germany Original REXROTH Servo Motor and Germany Original SICK Photoelectric Eye Correction, tracking printing bag accurately.
√ Raw material load adopt hydraulic pressure up and down structure, unwinding adopt auto tension control.
√ Raw material unwinding EPC adopt Italy SELECTRA, Reduce adjustment time.
Rolling feed square bottom paper bag making machine, it uses paper roll in blank or printed as raw material. consists of automatic centre forward glue, printing tracking, fixed length and cutting, bottom indentation, folding bottom, bottom glue. Bag bottom forming, finished bag collecting one time,The machine is more convenient, more efficient, more stable, can produce a variety of different paper bags, leisure food bags, bread bags, dried fruit bags and so on environmentally friendly paper bag machine equipment.
√ Use France Schneider Touch Screen Human-Computer Interface, operate and control easily.
√ Adopt Germany Original REXROTH PC Control, integrated with optical fiber, ensure high speed running steadily.
√ Germany Original REXROTH Servo Motor and Germany Original SICK Photoelectric Eye Correction, tracking printing bag accurately.
√ Raw material load adopt hydraulic pressure up and down structure, unwinding adopt auto tension control.
√ Raw material unwinding EPC adopt Italy SELECTRA, Reduce adjustment time.
Model | LQ-R330 |
Paper bag length | 270-530mm |
Paper bag width | 120-330 mm |
Paper bag bottom width | 60-150mm |
Paper thickness | 60-150 g/m² |
Machine speed | 30-220pcs/min |
Paper bag speed | 200pcs/min |
Paper roll width | 450-970mm |
Paper Bag diameter | 1200mm |
Machine power | 380V3 phase 4 wire 18.5kw |
Machine weight | 8500kg |
Machine size | 9000x3450x1900mm |
Model | LQ-R450 |
Paper bag length | 270-530mm |
Paper bag width | 240-450mm |
Paper bag bottom width | 60-180mm |
Paper thickness | 60-160 g/m² |
Machine speed | 200pcs/min |
Paper bag speed | 180pcs/min |
Paper roll width | 660-1230mm |
Paper Bag diameter | 1200mm |
Machine power | 380V3 phase 4 wire 19kw |
Machine weight | 8800kg |
Machine size | 9000x3500x1900mm |
