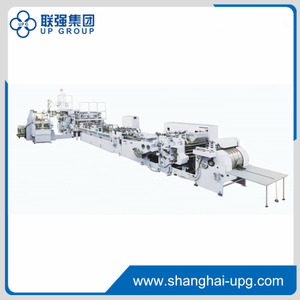

LQ-R250J
LQ
Performance
The Machine for reel original colored paper or drum paper printing, such as Kraft paper, Glossy paper, Medical paper roll consists of a paper bag process by puncture, center glue, color code length, raw material into a tube, set off long retreat, bottom fold bottom, bottom glue. Pocket bottom forming, complete finished bag finishing a. The machine operation more convenient, more efficient, more stable is in the production of a variety of different paper bags, fenestration bread bags, leisure food bag, bag of bread, dried fruit bags and so on environmental paper bag paper bag machine equipment.
Performance
The Machine for reel original colored paper or drum paper printing, such as Kraft paper, Glossy paper, Medical paper roll consists of a paper bag process by puncture, center glue, color code length, raw material into a tube, set off long retreat, bottom fold bottom, bottom glue. Pocket bottom forming, complete finished bag finishing a. The machine operation more convenient, more efficient, more stable is in the production of a variety of different paper bags, fenestration bread bags, leisure food bag, bag of bread, dried fruit bags and so on environmental paper bag paper bag machine equipment.
Model | LQ-R250J |
Length Of Cutting Bag | 110-460mm |
Bag Length | 100-450mm |
Bag Width | 70-250mm |
Insert Size | 20-120mm |
Bag Mouth Height | 15/20mm |
Bag Speed | 50-350pcs/min |
Paper Feed Width | 100-750mm |
Paper Material Diameter | 200-1000mm |
Paper Material Thickness | 35-80g/m² |
Working Air Current | More than 0.12m3/ minutes, 0.6-1.2 MPa |
Electric Power | 380V3 phase 4 wire 15kw |
Total Weight | 4500kg |
Machine Dimension | 7600x1800x1700mm |
