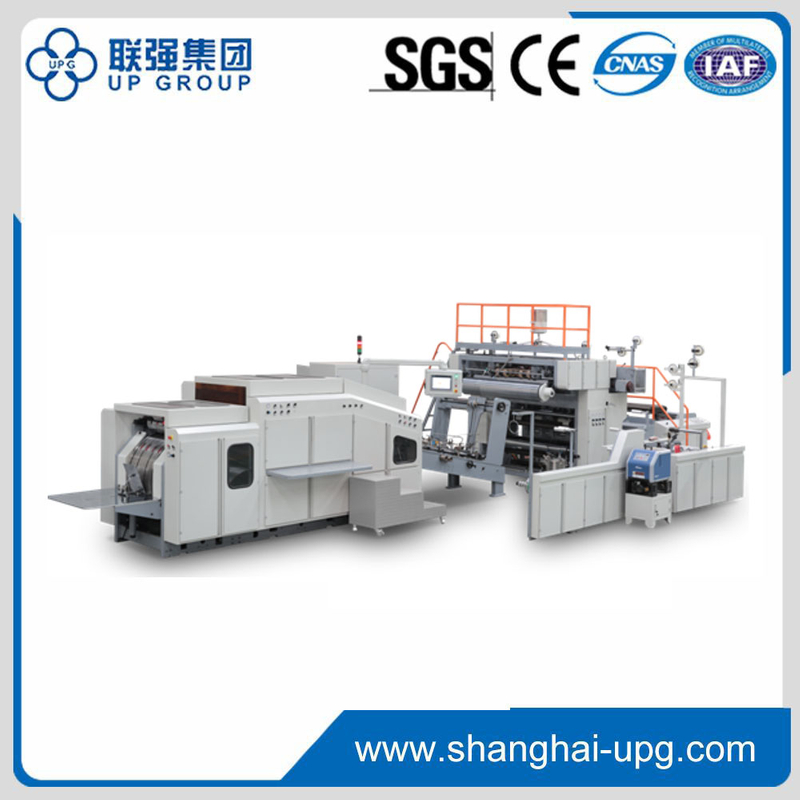

This machine is designed to manufacture square bottom paper bags with twisted-rope handles from paper roll,paper patch roll and twisted paper rope, and it is an ideal equipment for producing paper handbags fast.By implementing steps including handle making, handle application, tube forming,tube cutting and bottom forming within a fully automatic process
Availability: | |
---|---|
Quantity: | |
PDF Export | |
LQ-F21T
LQ
Performance
this machine can effectively save labor costs.Special bags collection platform and counting function, improve packing efficiency of finished paper bags.Thanks to perfect technologies and fast production speed,this machine can produce paper handbags with high quality in many different forms,which are especially suitable for food and clothing industries.
Performance
this machine can effectively save labor costs.Special bags collection platform and counting function, improve packing efficiency of finished paper bags.Thanks to perfect technologies and fast production speed,this machine can produce paper handbags with high quality in many different forms,which are especially suitable for food and clothing industries.
Model | LQ-F21T |
Paper Roll Width | 630~1510mm |
Max. Paper Roll Diameter | Ф1200mm |
Material Core Diameter | Ф76mm(3'') |
Paper Thickness | 90~170g/m 2 |
Bag Body Width | 220~540mm |
Paper Tube Length | 400~650mm(400~770mm) |
Bag Bottom Size | 80~200mm |
Handle Rope Height | 110~120mm |
Handle Rope Diameter | Ф4~6mm |
Handle Patch Length | 190.5mm |
Handle Patch Width | 40~50mm |
Paper Patch Roll Diameter | Ф1200mm |
Paper Patch Roll Width | 80~100mm |
Paper Patch Thickness | 100~250g/m 2 |
Max. Production Speed | 120bags/min |
Total Power | 39kw |
Total Weight | Approx. 20000kg |
Overall Dimension | L14000×W6000×H3100mm |
