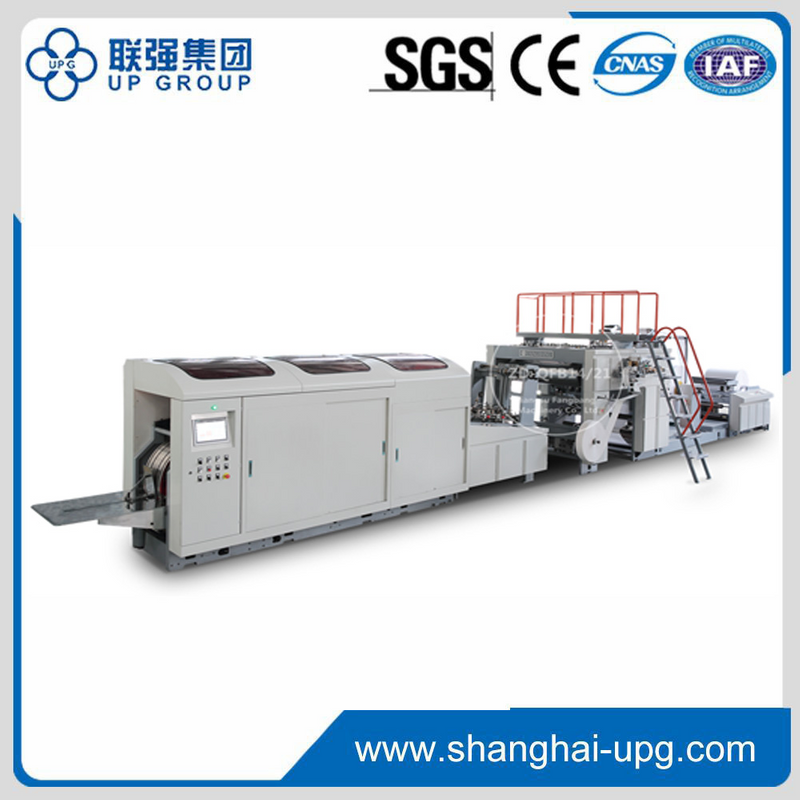

LQ-F14F/21F Fully Auto Roll-fed Paper Bag Machine (Flat Handle)

This machine is designed to manufacture square bottom paper bags with flat-rope handles from paper roll, paper patch roll and flat paper rope, and it is an ideal equipment for producing paper handbags fast. By implementing steps including handle making, handle application, tube forming, tube cutting and bottom forming within a fully automatic process.
Availability:
Quantity:

PDF Export

LQ-F14F/21F Fully Auto Roll-fed Paper Bag Machine (Flat Handle)
  • LQ-F14F/21F

  • LQ

Fully Auto Roll-fed Paper Bag Machine (Flat Handle)


1. The bottom forming hub of LQ-F14F/21F makes 5 paper bags by 1 round, which brings apparently higher speed than other similar traditional models.

2. By directly making flat-rope handles on paper web, customers can not only no longer rely on the traditional external hand making machine, but also be able to save 50% patch paper. What’s more, this design brings more efficient packaging and shipping for the finished paper bags.

this machine can effectively save labor costs. Distinct flat-rope handle making process and special bag counting function, greatly improve packing efficiency of finished paper bags. Thanks to perfect technologies and fast production speed, this machine can produce paper handbags with high quality in many different forms, which are especially suitable for food and clothing industries


db981199888258c311f29f0071e4f1d


Model

LQ-F14F

LQ-F21F

Paper roll width

570~1170mm

630~1510mm

Max. Paper roll diameter

Ф1200mm

Ф1200mm

Material core diameter

Ф76mm(3'')

Ф76mm(3'')

Paper thickness

80~150g/m 2

90~150g/m 2

Bag body width

200~360mm

220~540mm

Paper tube length

350~650mm

400~770mm

Bag bottom size

80~200mm

80~200mm

Flat handle rope height

75mm

100mm

Flat handle rope width

13mm

16mm

Paper rope roll width

101mm

93mm

Paper rope roll diameter

Ф800mm

Ф800mm

Paper rope thickness

70~100g/m 2

80~110g/m 2

Handle patch length

160mm

170mm

Handle patch width

52mm

52mm

Paper patch roll diameter

Ф800mm

Ф800mm

Paper patch roll width

160mm

170mm

Paper patch thickness

80~110g/m 2

80~110g/m 2

Max. Production speed

140bags/min

120bags/min

Total power

20kw

20kw

Total weight

Approx. 20000kg

Approx. 21000kg

Overall dimension

L16000×W3000×H2500mm

L16000×W3000×H2500mm
