LQ-MD Fully Automatic Square Bottom Paper Bag Machine With Twisted Rope Handle Inline

Availability:
Quantity:

PDF Export

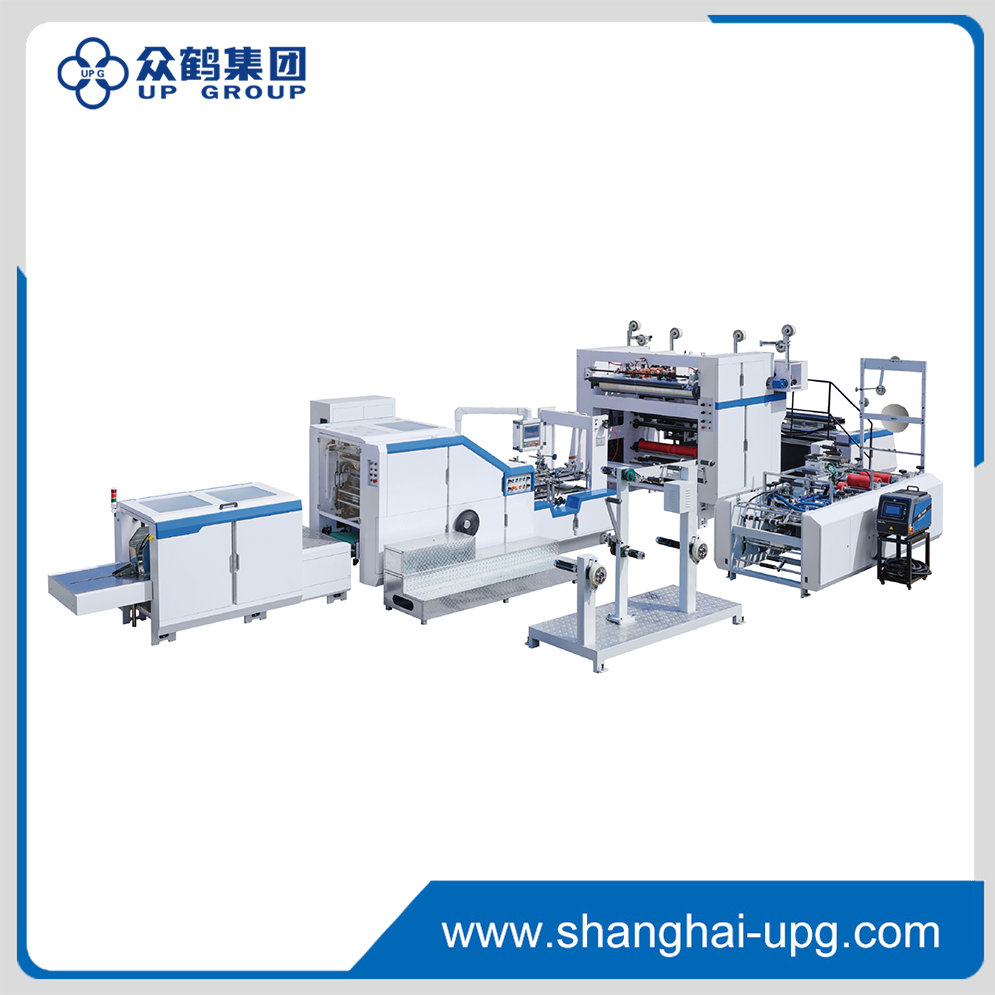

LQ-MD Fully Automatic Square Bottom Paper Bag Machine With Twisted Rope Handle Inline
  • LQ-MD 220T/330T/330BT/450T/450BT/450CT/540T

  • UPG

LQ-MD 220T/330T/330BT/450T/450BT/450CT/540T

Fully Automatic Square Bottom Paper Bag Machine With Twisted Rope Handle Inline


Specification:

Model

LQ-MD 220T

LQ-MD 330T

LQ-MD 330BT

Cutting Length

190*370mm
190-270mm

270*530mm
270-430mm

320*630mm
320-540mm

Bag Width

80x220mm
120-220mm(with handle)

120x330mm
220-330mm(with handle)

160x370mm
220-370mm(with handle)

Bag Length

150x320mm
150-250mm(with handle)

225x470mm
225-370mm(with handle)

240x550mm
240-450mm(with handle)

Paper Thickness

50-150g/m2
80-130g/m2(with handle)

60-160g/m2
80-160g/m2(with handle)

80-160g/m2
80-160g/m2(with handle)

Paper Roll Width

280x710mm
450x710mm(with handle)

385x1050mm
585x1050mm(with handle)

590x1170mm
630x1170mm(with handle)

Production Speed

30-180bags/min

30-160bags/min

30-150bags/min

Production Speed for Bags With Handles

30-120bags/min

30-120bags/min

30-100bags/min

Power supply

380V.3Phase,25.5KW

380V.3Phase.29.5KW

380V.3Phase.32KW

Machine Weight

1000kg

1350kg

1400kg

Machine size

10800x5500x3050mm

12600x5880x3150mm

12700x5880x3150mm


Model

LQ-MD 450T

LQ-MD 450BT

LQ-MD 450CT

LQ-MD 540T

Cutting Length

285-530mm
285-430mm

420-760mm
420-660mm

420-760mm
420-660mm

420-760mm
420-660mm

Bag Width

220-450mm
250-450mm

200-450mm
250-450mm

230-450mm
320-640mm

420-760mm
420-660mm

Bag Length

225-470mm
225-370mm

320-680mm
320-600mm

320-640mm
320-580mm

340-680mm
340-580mm

Bottom Width

80-200mm

80-240mm

120-260mm

120-260mm

Paper Thickness

80-160g/m2
80-160g/m2

80-160g/m2
80-160g/m2

80-160g/m2
80-160g/m2

90-160g/m2
90-160g/m2

Paper Roll Width

630-1370mm
690-1370mm

590-1410mm
690-1410mm

590-1450mm
730-1450mm

770-1640mm
770-1640mm

Production Speed

30-150bags/min

30-150bags/min

30-120bags/min

30-120bags/min

Production Speed for Bags With Handles

30-100bags/min

30-100bags/min

30-80bags/min

30-80bags/min

Power supply

380V,3Phase,32KW

380V,3Phase,32KW

380V,3Phase,32KW

380V,3Phase,32KW

Machine Weight

16000kg

17000kg

17500kg

18000kg

Machine Size

12800x6250x3350mm

13500x5300x2550mm

14000x6000x3250mm

14000x6500x3250mm


Company Profile:

众鹤详情页_01众鹤详情页_02

Superior:

A trading brand enterprise which is invested by industry and joint industry and trade.
ShangHai UPG International Industry & Trade Group Co., Ltd. is a professional trading company which is invested by UP Group's key branch enterprises together, the company has become the most active and influential brand in the printing and packaging machinery industry in China.

We own high efficiency, high quality, stable and professional trade working team.
In the long-term practice of trading, we foster and establish a multilingual, professional, high diathesis and qualification staff team, which form the biggest and most powerful trading enterprises in this industry. Among our working team, 97% obtain the associate degree and bachelor degree, 40% own intermediate level professional titles, master degree or above.

We adhere the philosophy that "over-value service, pioneering and pragmatic, and Win-win cooperation".
We start from innovation system, improve the institutional mechanism, gradually cultivating and forming a value pursuit, and enterprise culture which specialize in "Honest and trustworthy, Diligent and promising, Pursue excellence and efficiency, over-value service". We always ensure the quality of the products and service, establish long-term and stable relations of cooperation with domestic suppliers as well as our foreign customers for mutual benefits.

Superiority of abundant resource, matching into a line, high optionality.
We centred on printing machinery manufacturing and have established long term strategic collaborations with more than 50 cost-effective, high quality and reputation brand enterprises and factories, which cover printing and packaging, food and pharmaceutical packaging, printing  consumables and rubber& plastic machinery, and form a multi-category, multispecies and multilevel integrated superiority and provide a convenient service channel for foreign customers.

Well planned, high input, extensive coverage exhibition publicity.
The huge investment of more than 20 international professional exhibitions and more than one billion sales amount per year make our company known overseas and be of high reputation in domestic and abroad market.

Strengthen channel building, service to global customers, multiple trading strategic pattern.
Through several years' effort, we have exported products to more than 80 countries (not only Asia but also Europe, Africa, South America, North America and Oceania) and have established long term strategic collaborations with distributors and sales channels in more than 40 countries and regions, which play an important role for open foreign market and maintain service terminal clients.


Our Customers:

众鹤详情页_04裁

Exhibitions:

众鹤详情页_05

Export Markets:

UP Group's products have been exported to more than 80 countries.

In Southeast Asia, its products cover Thailand, Indonesia, Singapore, Malaysia, Brunei, the Philippines, Japan, Korea, Vietnam, Cambodia, India, Sri Lanka, Nepal, Dubai, Kuwait, Saudi, Syria, Lebanon, Maldives, Bahrain, Jordan, Sudan, Mongolia, Myanmar, Pakistan, Iran, Turkey and Bangladesh.

In European, its products cover Australia, New Zealand, Britain, France, Germany, Italy, Spain, Portugal, Georgians, Slovakia Finland, Poland, the Czech Republic, Russia, Ukraine, Belarus, Kazakhstan, Uzbekistan, Sweden, Bosnia, Herzegovina and Albania

In Africa, its products cover South Africa, Kenya, Ethiopia, Egypt, Morocco, Algeria, Tunisia, Madagascar, Mauritius, Nigeria, Ivory Coast, Ghana, Mali, Liberia and Cameroon.

In America, its products cover The United States, Canada, Mexico, Panama, Costa Rica, Brazil, Argentina, Columbia, Bolivia, Uruguay, Paraguay, Chile, Peru, Ecuador and Honduras.

Among these regions, we have more than 46 stable distributors and partners for many years.


Packaging and Shipping:

众鹤详情页_07

Our Services:

Pre-sales Service
We provide all information and materials of our products to the valuable customers and partners so as to support their business and development. We also will give a preferential price for the first few machines, the samples for the printing, packaging and consumables are available, but the freight should be borne by the customers and partners.

In-sales Service
The delivery time of the ordinary equipment is generally 30-45 days after receipt of deposit. The delivery time of the special or large scale equipment is generally 60-90 days after receipt of the payment.

After-sales Service
The quality guarantee period of the product is 13 months after leaving the Chinese port. We can provide customers with free installation and training, but the customer is responsible for round-trip tickets, local meals, accommodation and engineer allowance.
If the product is damaged due to customer's incorrect handing, the customer should bear all the costs including the costs of spare parts and freight charges etc. During the warranty period, if it is damaged caused by our manufacturing failure, we will provide all repair or replacement free of charge.

Other Service
We can design special products according to customer's requirements on various aspects, including style, structure, performance, color etc. In addition, OEM cooperation is also welcome.
