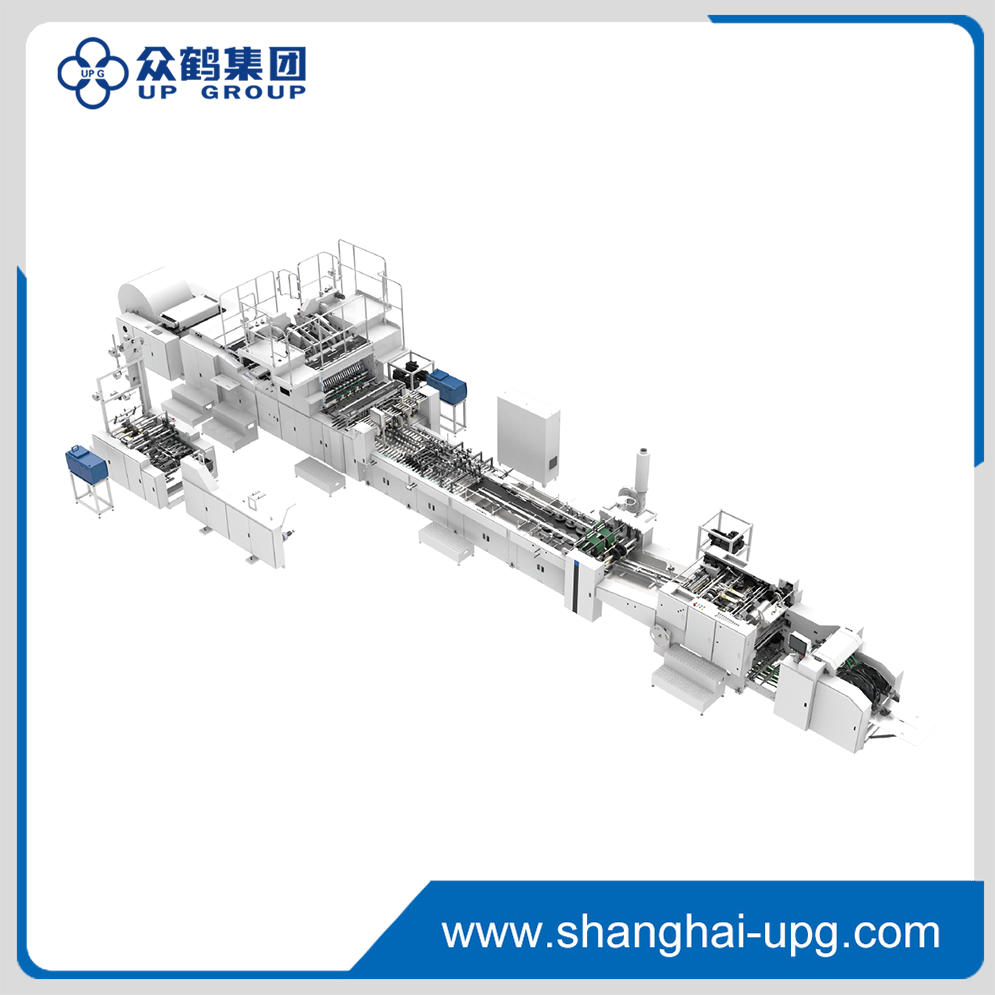

LQ-MD 22/35/45/55R
UPG
Inline Handle Application Technology - handle feed in line with paper feed direction
Faster, Smarter, Cheaper
NEWPACK’s high-speed machine features an exclusive Inline Handle Application Technology that simplifies the structure while significantly improving handle pasting speed and accuracy. This innovation effectively reduces handle rope waste, greatly increases yield rates, and truly delivers cost reduction and efficiency gains.
3x Diameter Draw Roll Rack + 4x Diameter Bottom Folding Drum
High-Output Structural Design
With an innovative large-diameter draw roll rack and bottom folding drum design, each rotation produces one more bag at the same speed. This significantly increases output per unit time and maximizes the machine’s production potential.
Specification:
| Model | LQ-MD 22R/133 | LQ-MD 22R/114 | LQ-MD 35R | LQ-MD 45R | LQ-MD 55R |
| Bag Width | 150-260 mm | 130-260 mm | 180-350 mm | 210-450 mm | 350-550 mm |
| Bottom Width | 60-130 mm | 70-160 mm | 70-170 mm | 100-230 mm | |
| Tube Length | 215-395 mm | 280-540 mm 300-540 mm | 280-560 mm 300-560 mm | 400-740 mm 460-740 mm | |
| Sheet Width | 490-770 mm | 530-1050 mm | 610-1260 mm | 930-1580 mm | |
| Sheet Length | 265-445 mm, 215-395 mm | 340-600 mm | 340-620 mm | 460-800 mm | |
| Top Folding Depth | 40-50 mm | 40-60 mm | 40-60 mm | 40-60 mm | |
| Handle Patch Length | 133.4 mm | 114.3 mm | 152.4 mm | 190.5 mm | 228.6 mm |
| Handle Patch Width | 40 mm | 40 mm | 40 mm | 40 mm | 40 mm |
| String Distance | 66.7 mm | 57.2 mm | 76.2 mm | 95.3 mm | 114.3 mm |
| String Height | 160-180 mm | 140-165 mm | 140-165 mm | 140-165 mm | 170-190 mm |
| Patch Paper Thickness | 120-200 g/m² | 120-200 g/m² | 120-200 g/m² | 120-200 g/m² | 120-200 g/m² |
| Patch Paper Roll Diameter | Φ1000 mm | Φ1000 mm | Φ1000 mm | Φ1000 mm | Φ1000 mm |
| String Diameter | Φ4-6 mm | Φ4-6 mm | Φ4-6 mm | Φ4-6 mm | Φ4-6 mm |
| Installed Power | 51 kW | 51 kW | 53 kW | 54 kW | |
| Operating Power | 35 kW | 35 kW | 35 kW | 35 kW | |
| Machine Weight | 28,000 kg | 28,500 kg | 29,500 kg | 32,500 kg | |
| Speed | 75-120 pcs/min | 75-120 pcs/min | 75-120 pcs/min | 40-65 pcs/min | |
| Sheet Thickness | 100-200 g/m² | 100-250 g/m² | 100-250 g/m² | 100-200 g/m² | |
| Overall Dimension (L×W×H) | 6575×19045×2950mm | 6575×19045×2950mm | 6575×20045×2950mm | 6575×22545×2950mm | |
| Machine Size (W×L×H) | 1340×5410×2690 mm | 1360×4820×2660 mm | 1420×6400×2690 mm | 1520×7200×2760 mm | |
