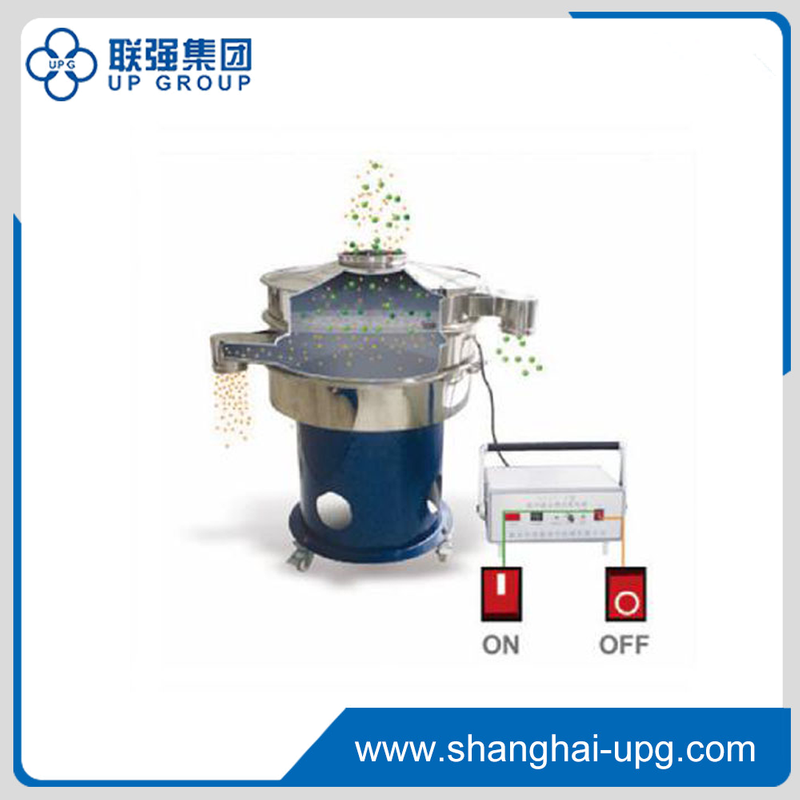

LQ-S49-AC Series Ultrasonic Wave Vibrating Sieve

LQ-S49-AC series ultrasonic wave vibrating sieve can convert electric energy of 220V, 50Hz or 110V, 60Hz to high frequency of 18K Hz, Then enter into ultrasonic energy exchanger to make it change to mechanical vibration of 18K Hz. Thus achieves the purpose of high-performance sieving and mesh cleaning. This equipment applies a low amplitude, high frequency ultrasonic vibrating wave(mechanical wave) on the sieve mesh by the traditional vibrating sieve to improve the sieving abilities of micro-powder. It is suitable for the users who demand the high additional value and fine powder.
Availability:
Quantity:
  • LQ-S49-AC

  • UPG

LQ-S49-AC series ultrasonic wave vibrating sieve can convert electric energy of 220V, 50Hz or 110V, 60Hz to high frequency of 18K Hz, Then enter into ultrasonic energy exchanger to make it change to mechanical vibration of 18K Hz. Thus achieves the purpose of high-performance sieving and mesh cleaning.
This equipment applies a low amplitude, high frequency ultrasonic vibrating wave(mechanical wave) on the sieve mesh by the traditional vibrating sieve to improve the sieving abilities of micro-powder. It is suitable for the users who demand the high additional value and fine powder.
This machine can efficiently resolve adhering material on the sieving screen. In general, the rate of screen passing can add 5-20 times than uninstalled ultrasonic wave vibrating sieve.
It efficiently solve the sieving problems of special materials such as powerful adsorbability, easily uniting, high electronic-static, high fine, high density, gently proportion etc..
It can reduce or prevent the time of screen cleaning.
The powder material can avoid pollution from bounder or other assistants.
It can keep the mesh size and steady the sieving accuracy.
It can reduce the times of repeat sifting.

Model LQ-S49-600 LQ-S49-800 LQ-S49-1000 LQ-S49-1200 LQ-S49-1500 LQ-S49-1800 LQ-S49-2000
A 530 680 800 975 1190 1600 1800
B 480 630 750 920 1120 1500 1720
C 246 246 246 400 400 400 400
D 600 800 1000 1200 1500 1800 2000
E 100 125 150 180 180 200 200
F 80 100 100 105 138 155 194
G 391 514 615 712 930 1020 1260
I 606 682 714 845 1116 1127 1039
Height For Single Layer 956 1107 1140 1310 1441 1693 1630
Height For Double Layer 1064 1257 1278 1462 1635 1863 1796
Height For three Layer 1170 1406 1418 1373 1830 2033 1961
