LQ-S49
UPG

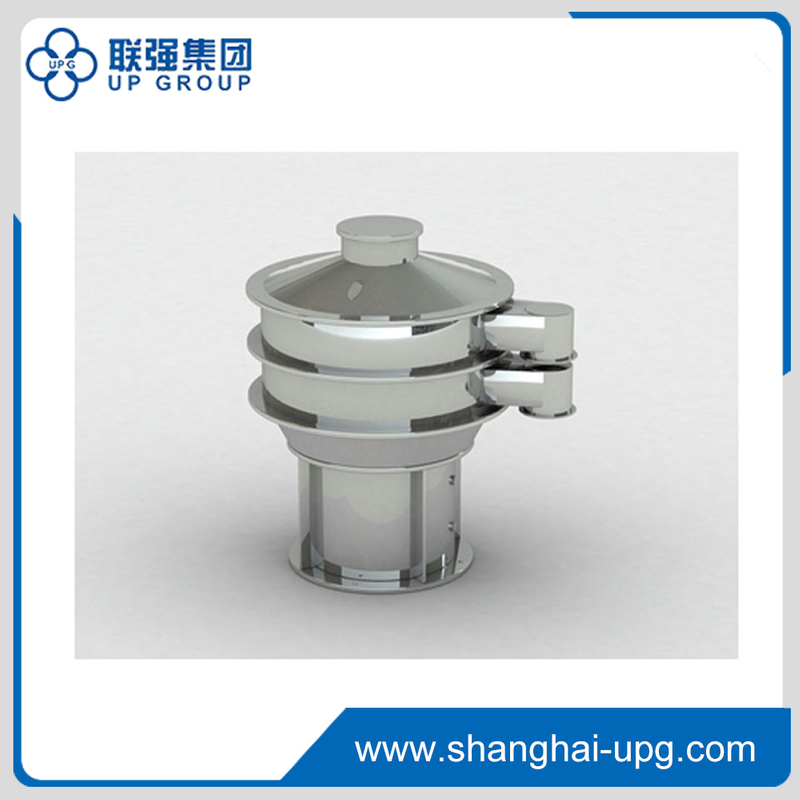

LQ-S49 series three-D rotary vibrating sieve is one of precise powder sieving machine, it has low noise and high efficiency, need only 3-5minutes to rapidly replace the screen, all closed structure. It can be used to sieving, grading and sizing particles, powder and mucilage.
Applicable materials: Resin, Coating, Industrial Pharmacy, Cosmetics, Paint, Chinese Medicine Powder, Icing sugar, Starch, Salt, Rice flour, Milk powder, Soyabean milk, Egg powder, Soy sauce, Fruit juice, Metal-powder, Assistant, Active carbon, etc..
LQ-S49 series three-D rotary vibrating sieve is one of precise powder sieving machine, it has low noise and high efficiency, need only 3-5minutes to rapidly replace the screen, all closed structure. It can be used to sieving, grading and sizing particles, powder and mucilage.
Applicable materials: Resin, Coating, Industrial Pharmacy, Cosmetics, Paint, Chinese Medicine Powder, Icing sugar, Starch, Salt, Rice flour, Milk powder, Soyabean milk, Egg powder, Soy sauce, Fruit juice, Metal-powder, Assistant, Active carbon, etc..
Model | LQ-S49-600 | LQ-S49-800 | LQ-S49-1000 | LQ-S49-1200 | LQ-S49-1500 | LQ-S49-1800 | LQ-S49-2000 |
Effective Dia. for Sieving Surface (mm) | φ540 | φ730 | φ900 | φ1100 | φ1400 | φ1700 | φ1900 |
Effective Sieving Area (m2) | 0.2289 | 0.4183 | 0.6359 | 0.9499 | 1.5386 | 2.2687 | 2.792 |
Sieving Mesh Specification | 2~500 mesh | ||||||
Layer(S) | 1~4 | 1~4 | 1~4 | 1~4 | 1~4 | 1~3 | 1~3 |
Vibration Motor(kw) | 0.25 | 0.55 | 1.1 | 1.1 | 1.5 | 4 | 4 |
Common Motor(kw) | 0.75 | 1.1 | 1.5 | 1.5 | 2.2 | 3 | 3 |
Model | LQ-S49-600 | LQ-S49-800 | LQ-S49-1000 | LQ-S49-1200 | LQ-S49-1500 | LQ-S49-1800 | LQ-S49-2000 |
Effective Dia. for Sieving Surface (mm) | φ540 | φ730 | φ900 | φ1100 | φ1400 | φ1700 | φ1900 |
Effective Sieving Area (m2) | 0.2289 | 0.4183 | 0.6359 | 0.9499 | 1.5386 | 2.2687 | 2.792 |
Sieving Mesh Specification | 2~500 mesh | ||||||
Layer(S) | 1~4 | 1~4 | 1~4 | 1~4 | 1~4 | 1~3 | 1~3 |
Vibration Motor(kw) | 0.25 | 0.55 | 1.1 | 1.1 | 1.5 | 4 | 4 |
Common Motor(kw) | 0.75 | 1.1 | 1.5 | 1.5 | 2.2 | 3 | 3 |
