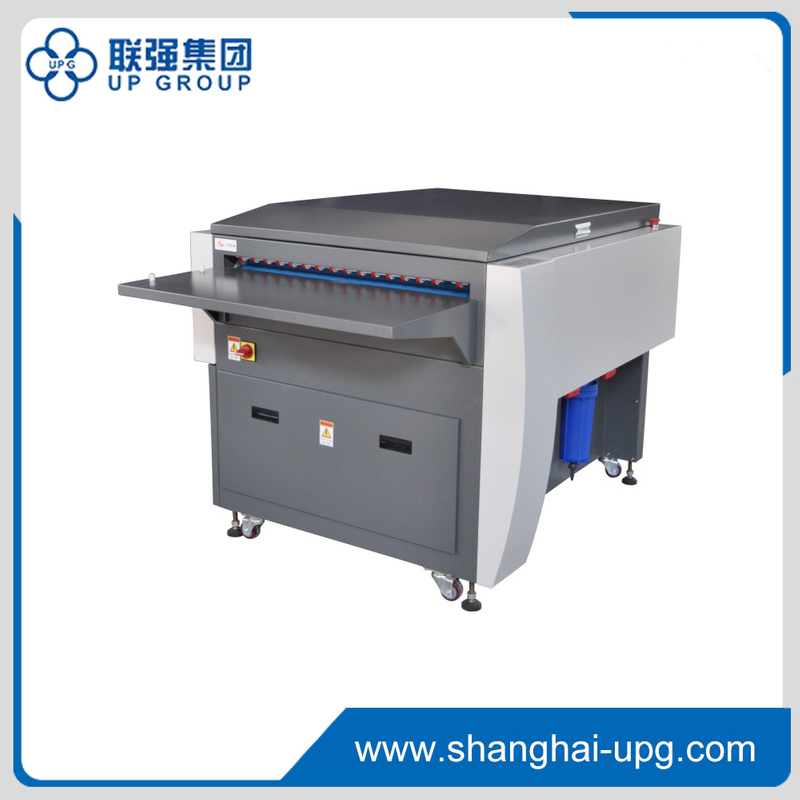

LQ Series Thermal CTP Plate Processor


PDF Export

  • UPG

1. Computer-controlled process, suitable for 0.15-0.4mm all kinds of CTP plate.

2. Developing, washing, gumming and drying complete in one machine. Unique solution cycle ways and accurate temperature control, guarantee accurate and uniform dot reproduction.
3. Developing speed, brush rotate speed is all digitally processed, step-less gear is also available.

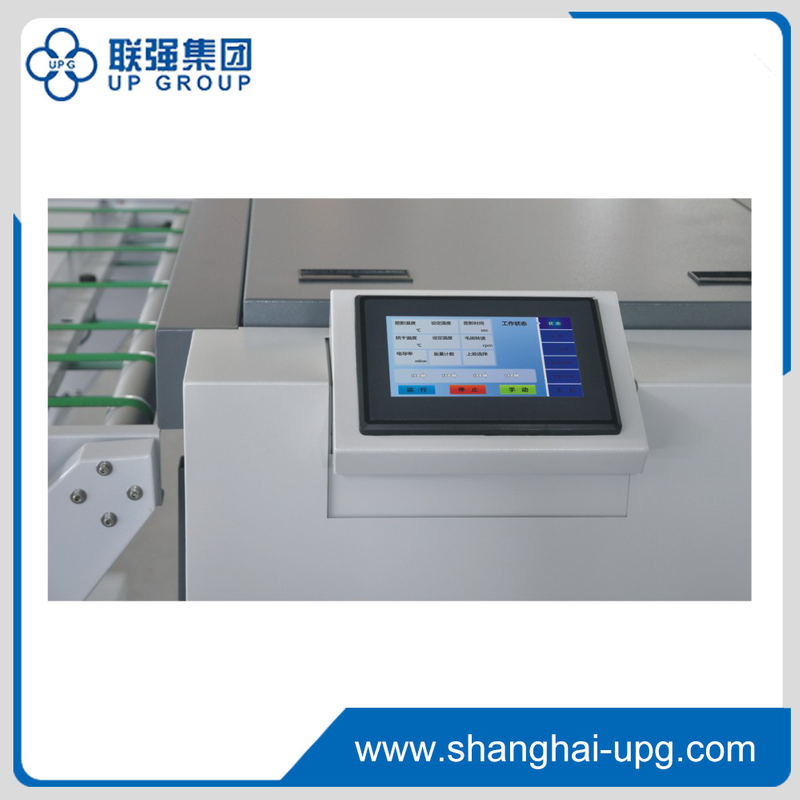

4. Digital temperature control, temperature setting and actual temperature clearly displayed, alarming and error-displaying also available.
5. Developing liquid filtering system, liquid guaranteed clear and developing guaranteed stable. Plus usage-period is extended and cleaning load is reduced.
6. Accurate developing liquid supply system, liquid guaranteed stable
7. Special water-saving design, water running only when plate is moving, no more whole-process water consuming.
8. Automatic rubber roller smoothing, avoiding rubber roller drying out after long-time standing by.

9. Automatic rubber roller cleaning, avoiding rubber roller harden after long-time break.
10. Automatic alarm to remind the replacement filter system to ensure the quality of developing.
11. Personal computer connecting to control the machine is available. (optional)
12. Smart automatic developer (conductivity) replenishment system with accurate calculation based on PH value, temperature compensation and dissolved saturation level. (optional)

Max. plate width860mm1100mm1300mm1450mm
Min. plate length300mm
Developer capacity40L60L60L80L
Plate thickness0.15-0.40mm
Diameter of roller40mm50mm60mm70mm
Developer temperature15-40
Dry temperature30-60
Developing time20-60 seconds
Brush speed20-150rpm
Power1PH, AC220V, 30A
