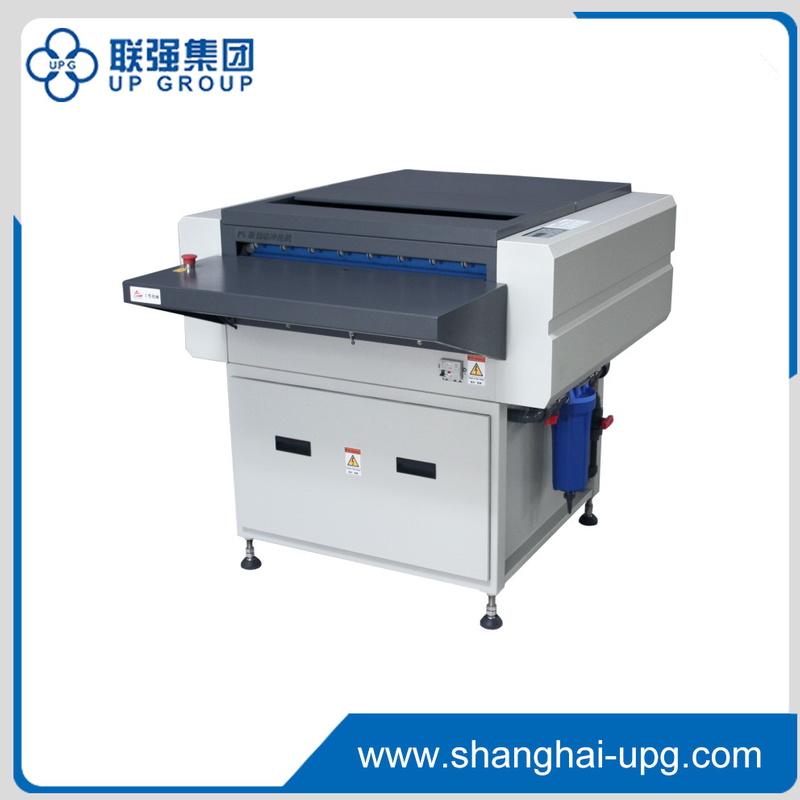

LQ Series UV CTP Plate Processor


PDF Export

  • UPG

1. Computer-controlled process, suitable for 0.15-0.4mm all kinds of UV CTP, positive and negative PS plate.
2. Developing, washing, gumming and drying complete in one machine. Unique solution cycle ways and digital techniques for developing and brush speed independent speed CVT.
3. Digital temperature control, temperature setting and actual temperature clearly displayed, alarming and error-displaying also available.
5. Developing liquid filtering system, liquid guaranteed clear and developing guaranteed stable. Plus usage-period is extended and cleaning load is reduced.
6. Accurate developing liquid supply system, liquid guaranteed stable.
7. Special water-saving design, water running only when plate is moving, no more whole-process water consuming.
8. Twice washing with optional glue control, which makes convenience of second washing and gluing after plate repair operation.
9. Automatic rubber roller smoothing, avoiding rubber roller drying out after long-time standing by.
10. Automatic rubber roller cleaning, avoiding rubber roller harden after long-time break.

Max. plate width700mm880mm1150mm1300mm1500mm
Min. plate length300mm
Developer capacity24L30L35L45L60L
Plate thickness0.15-0.40mm
Developer temperature15-40
Developing time20-60 seconds
Dry temperature30-60
Brush speed20-150rpm
Power1PH, AC220V, 15A1PH, AC220V, 25A
Dimensions (mm)2440x1060x10502440x1240x10502440x1420x10502440x1570x10502440x1720x1050
