LQ-TYM 1050-H
UPG
Q:How to ensure the accuracy of stamping of TYM1050H? A:It has four sets of servo motors,which can control the foil roll in and out of the machine respectively , so as to make the foil roll in and out synchronous and consistent,and ensure the stamping accuracy. Q:How about the safety and stability of the TYM1050H ? A:Its main drive uses a large pitch chain ,which can reduce the rotation inertia and improve the stability of accuracy; the torque controller is installed to improve the safety protection. Q:How about the production efficiency of TMY1050H? A:It uses manual foil stringing device to improve working efficiency.Its highest die cutting speed is 6500s / h.Its highest stamping speed is 5000S / h. | |

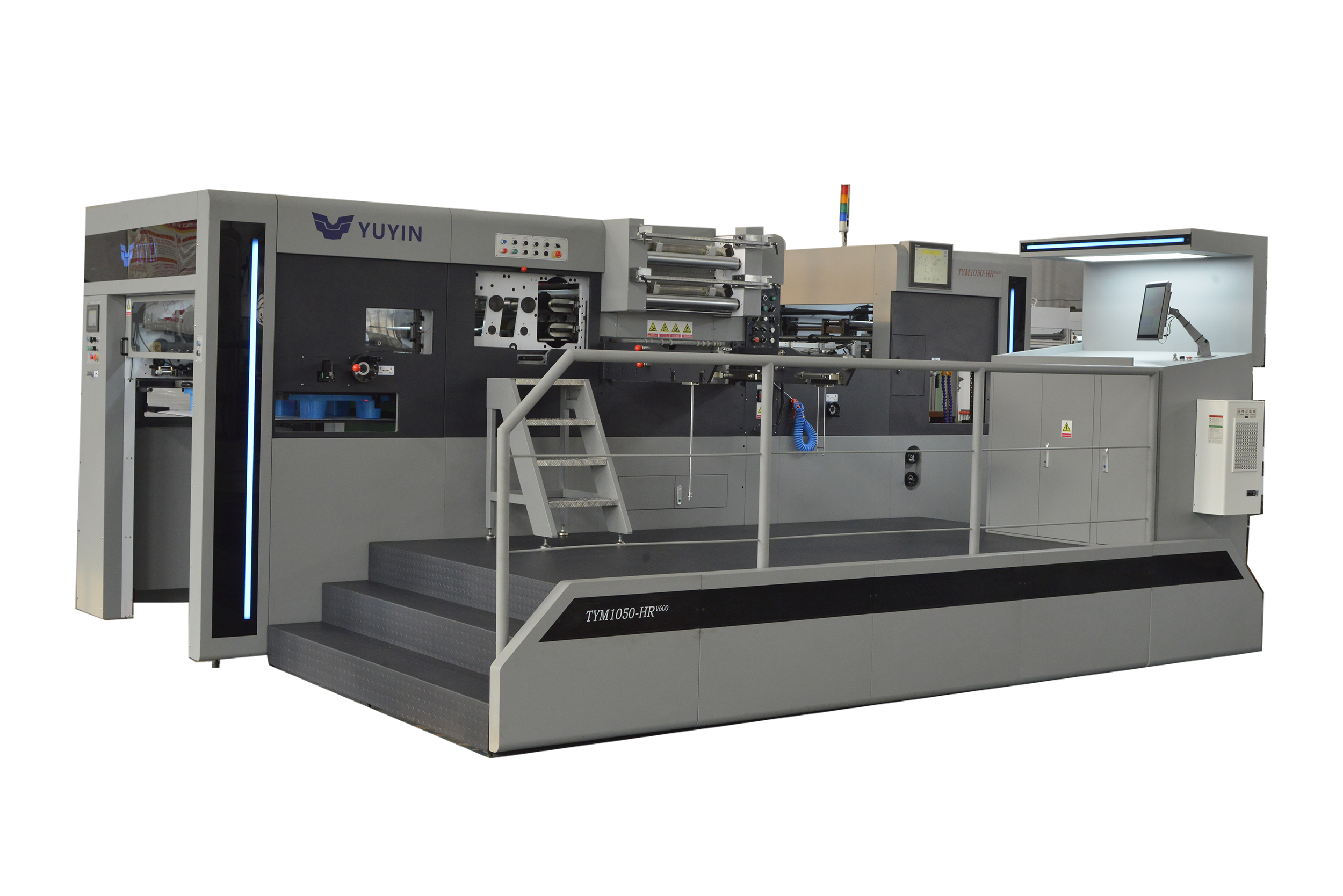

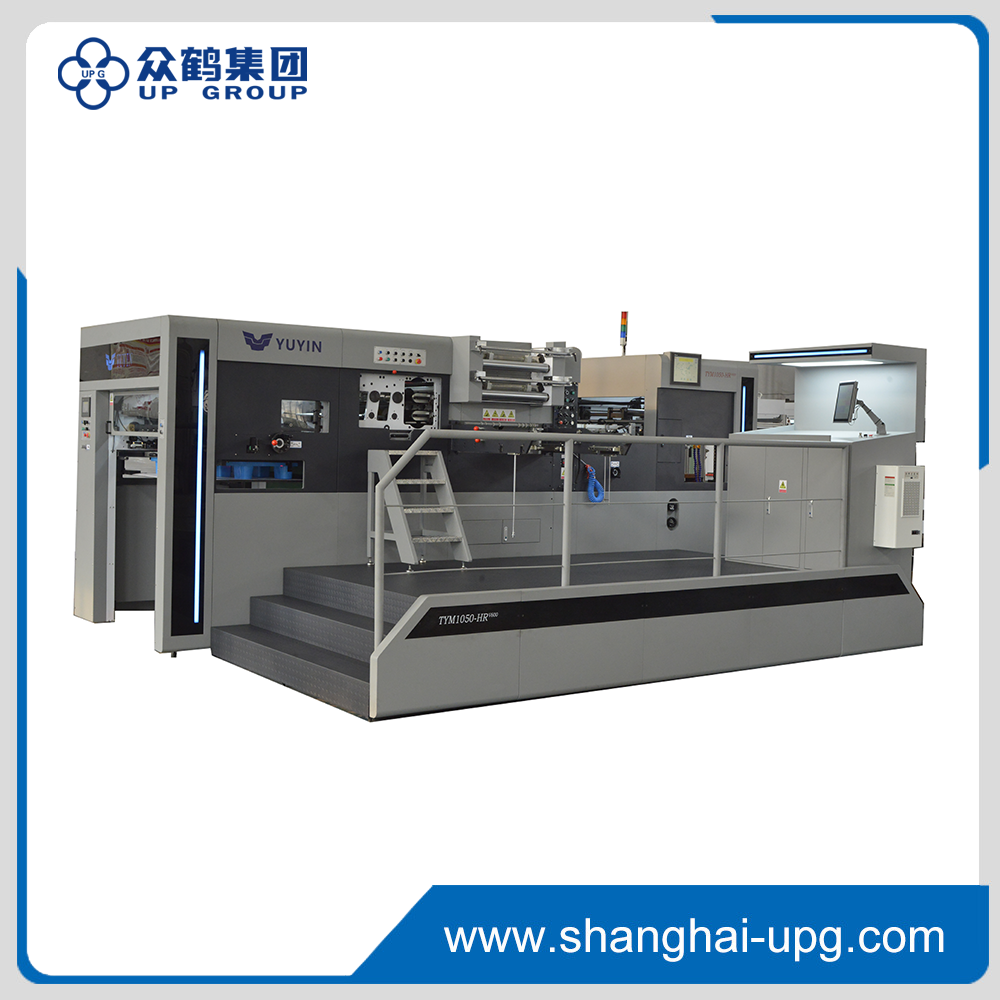

TYM1050-H automatic foil stamping and diecutting machine is mainly used for the diecutting, creasing, foil stamping, cold and hot embossing of cigarette box, drug box, wine box and label in the packing and decorating industries. This kind of machine is a new generation of foil stamping series on the basis of TYM1020-H, it’s incorporated with fully automatic feeding, diecutting, stamping, delivering foil, delivering sheet, up-press, down-press, leap step, counting, heating, pre-heating, obstacle indicating, checking and measuring. It has the features of easy operating, reliablity, high speed, press and precision. | |
● Cooling device for lubricating oil is added which reduces the wear of parts when they are heated, ensures the constant pressure of diecutting and foil stamping. Air blow and gripper barBecker pumpDouble sheet deviceclutchClutch and main motorelectrical cabinet |
 Feeder |  Feeder |  servo controller |
 Front lay |  Front lay and side lay handle wheel control |  intermittent mechanism |
 Servo motor |  Timing belt transfer |  Worm shaft |
●Safety system
The machine with four degree safety class, equipped with protection modules and SIEMENS PLC has got CE certificate of high-speed and stable performance.
●Electrical unit
Imported electronic elements and panels with humanization control layout to ensure easy operation. Equipped constant temperature devices to ensure reliable working and prolong service life. A color screen with 5.7 inch area newly added in delivery unit for more reliable and visualized operation.
●Feeding unit
Parallel move mechanism adopted ensures more reliable and steadier paper transfer at high speed. Feeder with collision-prevention device. Adopt high-speed feeder with adjustable strong type suckers to guarantee stable and smooth paper feeding. Newly added ventilated function guarantees reliable high-speed paper transfer.
●Movable Platform
Unique cast structure and specific working process ensure evenness and flatness and pressure-regulating time. Oil cooling system ensures constant pressure. Improved servo motor and ball screw pressure regulating system ensures convenient and efficient pressure regulating. Pressure-regulating can be achieved only by entering value.
●Pneumatic clutch
Imported components to lower noise and pneumatic impact for stable and safe running.
●Front Lay
The front lay can be individually adjusted by four site for different paper processing requirement. Unique electrically pressure-regulating device realizes plate regulating in delivery unit, ensuring convenient and efficient front lay regulating. Values visually displayed on man-machine interface.
●Delivering unit
Add foot-pressing preventer for further safety. Unique deceleration hairbrush ensures paper stopping stably. Tension device for drive chain of gripper bar prolongs the gripper bar’s service life. Pneumatic sampling device for convenient sampling at any time with the machine running. Automatic auxiliary delivery device newly added for more convenient operation.
●Feeding unit
Broadened paper feeding tape matching with negative-pressure feeding to make feeding steadier; Drive chain adopted in feeding unit to ensure stable run and reliable paper feeding; Gas spring for easy and convenient operation; Adjustable reduction unit for paper to front lay, helps to thinner paper positioning at high speed. Side lay with dual purpose for side positioning can be easily switched.
●Foil stamping unit
Worm shaft, worm wheel and crankshaft with unique working process greatly improve the service life of core components. Pneumatic platelocking for convenient operation. Single gripper bar can be fine adjusted to achieve processing requirement. The honeycomb plate also adopts high heatproof material through a specific working process with optimized hole-layout, convenient for the installation of foil-stamping block.
●Foil-sending and rewinding system
Three longitudinal and two lateral foil stamping shafts are equipped to meet the demand for different products. Its 12 heating zones can be controlled separately. Longitudinal hairbrush foil-rewinding and tension system for steadier foil rewinding. The longitudinal foil-stringing unit can be pulled out when you install the foil, convenient for operation. Foil-step is controlled by motion controller adopting optimized accelerating and decelerating curves, for more steady and accurate foil-controlling.
●Gripper bar chain
Synchronous belt adopted for steadier drive; Torsion controller equipped to make gripper bar run safely; The gripper bar of special structure and material to guarantee low moment of inertia and impact; Ten grippers structure to ensure stronger gripper force and working accuracy at high speed; Adopt optimized motion trail and improved motion curve to ensure stable and accurate running of gripper bars. Imported chain to prolong service life.
