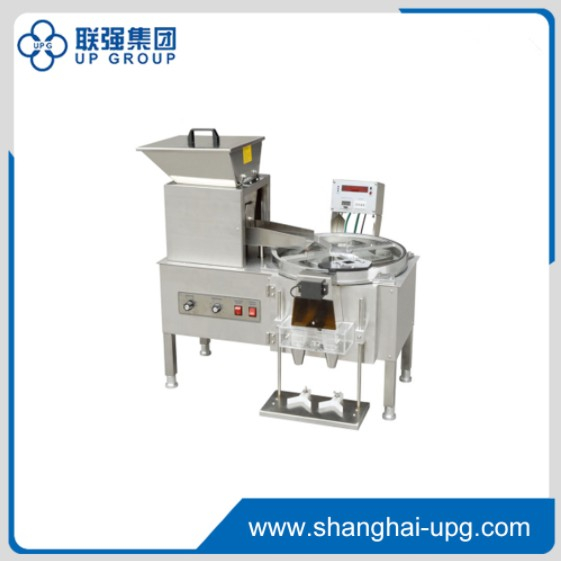

LQ-YL
Introduction:
1.The number of counting pellet can be arbitrarily set from 0-9999.
2. Stainless steel material for whole machine body can meet with GMP specification.
3. Easy to operate and no special training required.
4. Precision pellet count with special electrical eye protection device.
5. Rotary counting design with fast and smooth operation.
6. The rotary pellet counting speed can be adjusted steplessly according to putting speed of the bottle manually.
7. The machine is quipped with dust cleaner to avoid the dust effect on the machine.
8. Vibration feeding design, the vibration frequency of the particle hopper can be adjusted with step-less based on the needs of the medical pellet,
9. LQ-YL-2 : once start with one bottle and automatically to count the next when finished, easy to pick up and put down the bottle by hand.
10. LQ-YL-4 : once start with two bottles and automatically to count the next two bottles when finished, easy to pick up and put down the bottle by two hands and the speed is one time faster.
Drawing of LQ-YL-2 Counter:
1 | Hopper | 2 | Baffle |
3 | Groove of vibrating feeder | 4 | Vibrator |
5 | Indicator | 6 | Display |
7 | Bottle counter | 8 | Return to zero |
9 | Tablet number set | 10 | Spiral |
11 | Glass disc | 12 | Orbit |
13 | Vibration governor | 14 | Rotation governor |
15 | Vibrator switch | 16 | Main switch |
17 | Electric eye | 18 | Acrylic powder collector |
19 | Material outlet | 20 | Y locator |
21 | Bottle height modulator |
Introduction:
1.The number of counting pellet can be arbitrarily set from 0-9999.
2. Stainless steel material for whole machine body can meet with GMP specification.
3. Easy to operate and no special training required.
4. Precision pellet count with special electrical eye protection device.
5. Rotary counting design with fast and smooth operation.
6. The rotary pellet counting speed can be adjusted steplessly according to putting speed of the bottle manually.
7. The machine is quipped with dust cleaner to avoid the dust effect on the machine.
8. Vibration feeding design, the vibration frequency of the particle hopper can be adjusted with step-less based on the needs of the medical pellet,
9. LQ-YL-2 : once start with one bottle and automatically to count the next when finished, easy to pick up and put down the bottle by hand.
10. LQ-YL-4 : once start with two bottles and automatically to count the next two bottles when finished, easy to pick up and put down the bottle by two hands and the speed is one time faster.
Drawing of LQ-YL-2 Counter:
1 | Hopper | 2 | Baffle |
3 | Groove of vibrating feeder | 4 | Vibrator |
5 | Indicator | 6 | Display |
7 | Bottle counter | 8 | Return to zero |
9 | Tablet number set | 10 | Spiral |
11 | Glass disc | 12 | Orbit |
13 | Vibration governor | 14 | Rotation governor |
15 | Vibrator switch | 16 | Main switch |
17 | Electric eye | 18 | Acrylic powder collector |
19 | Material outlet | 20 | Y locator |
21 | Bottle height modulator |
Model | LQ-YL-2A | LQ-YL-2 | LQ-YL-4 |
Capacity | 500-1500pcs/min | 1000-1800pcs/min | 2000-3500pcs/min |
Overall Dimension (L*W *H) | 427mm*327mm*525mm | 760mm*660mm*700mm | 920mm*750mm*810mm |
Voltage | 110-220V,50Hz-60Hz,1Ph | 110-220V,50Hz-60Hz,1Ph | 110-220V,50Hz-60Hz,1Ph |
Net Weight | 35kg | 50kg | 85kg |
