LQ-SLJS Electronic Counter

This machine is used to count capsule ,tablet, candy as required quantity.

Quantity:
  • LQ-SLJS

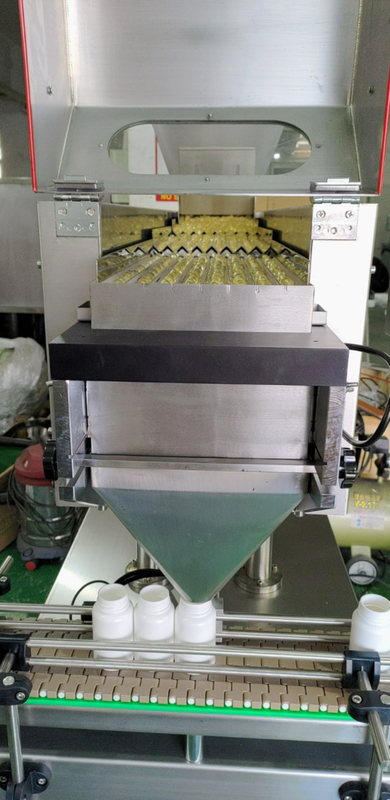

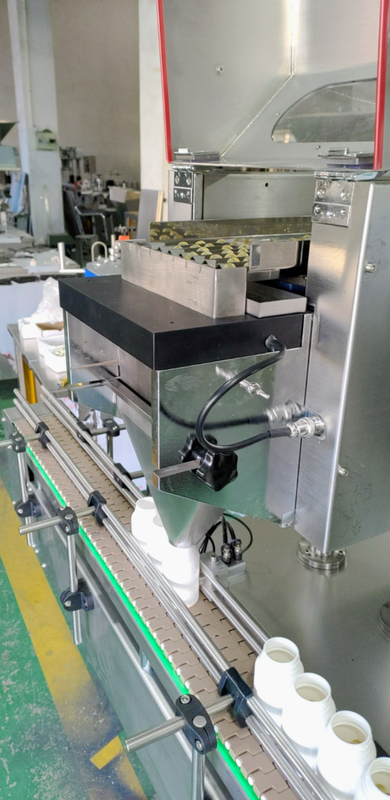

The block bottle device on the passing bottle-track of the conveying bottle system make the bottles which came from the previous equipment stay in the bottling position, waiting to be filled in. The medicine goes into the medicine container in order by the vibration of the feeding corrugated plate. There’s a counting photoelectric sensor installed on the medicine container, after counting of the medicine in the medicine container by the counting photoelectric sensor, the medicine goes into the bottle in the bottling position.


Model

SLJS 4-HEAD ELECTRONIC COUNTER

SLJS 8-HEAD ELECTRONIC COUNTER

Capacity

About 20-25 bottles/min

About 30-35 bottles/min

Loading range

1-9999 granules/tablets adjustable

1-9999 granules/tablets adjustable

Voltage

220V,50Hz,1Ph

220V,50Hz,1Ph

Power

0.6kw

0.6kw

Bottle size

10~500ml round/flat bottle

10~500ml round/flat bottle

Counting accuracy

More than 99.5%

More than 99.5%

Air source

0.6 Mpa

0.6 Mpa
