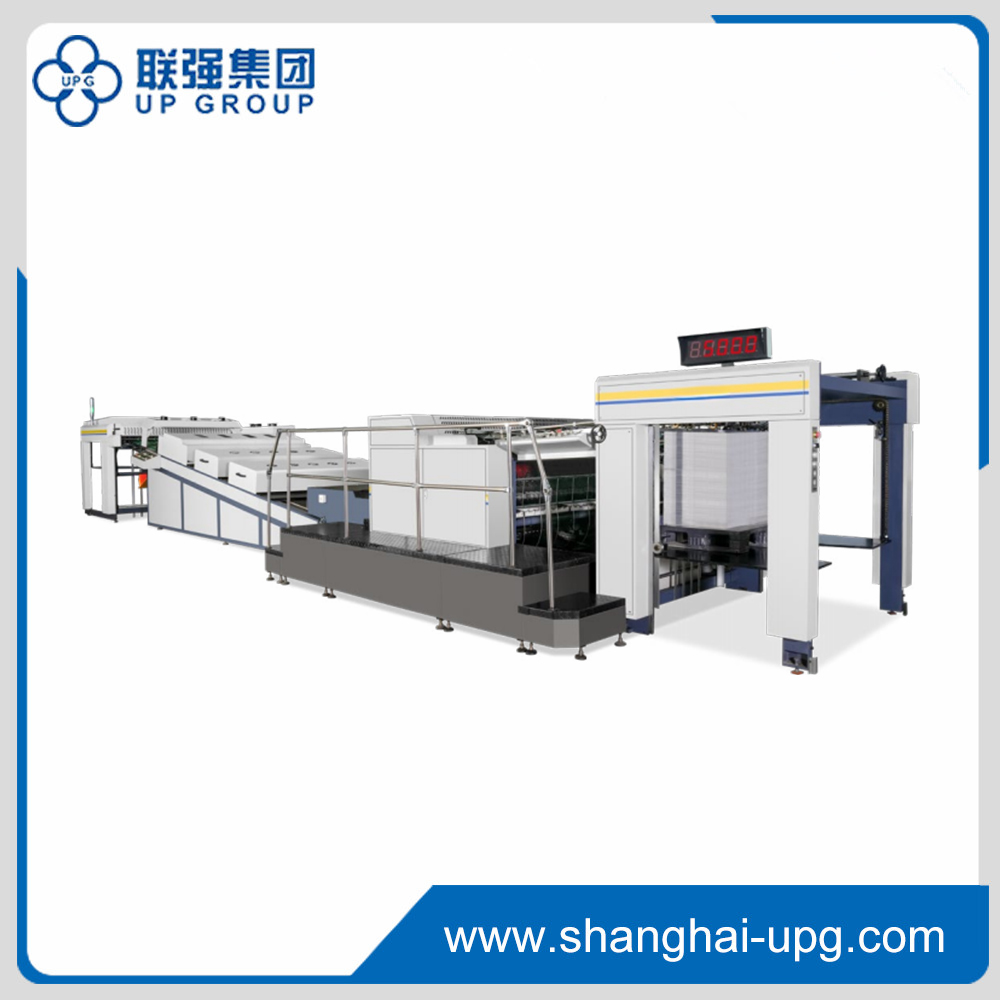

LQ-YX-1280/1450/1650
UPG
Introduction:
o This machine is equipped with a gripper conveying system. The impression cylinder and the plate cylinder are pneumatically engaged and disengaged. It can automatically load and unload the cylinders. The plate installation space at the main machine is large, facilitating quick and convenient plate loading and unloading. The UV varnish tank is designed with a water heating system, which enables the UV varnish to maintain good flow out properties at any ambient temperature. The whole machine uses precision imported rolling bearings, which are easy to maintain and highly reliable.
o Coating system: Equipped with a high-precision ceramic anilox roller and chambered doctor blade system to ensure even and delicate coating, completely eliminating ink splattering and reducing production costs.
(No need for metering rubber rollers, avoiding production downtime caused by roller damage. The ceramic anilox roller with chambered doctor blade system keeps the varnish application area clean and tidy, preventing paper sticking and smudging.)
Feeding System
o The feeder adopts a high-speed feeder head with four pick up and four feeding suckers. It is a highly efficient paper feeding. Its unique maintenance-free design endows it with stronger and more stable paper feeding. While running at high speed, it can ensure that each sheet of paper is accurately and swiftly transported, significantly reducing errors and delays during the paper feeding procedure.
o It can be equipped with a shaftless drive mode, which breaks away from the limitations of the traditional shaft system. This makes the paper feeding more smoothly and reduces the mis-feeding caused by mechanical wearing. At the same time, this technology also enhances the adaptability of the equipment to different paper specifications and materials. Whether it is thin paper or thick cardboard, the paper feeder can handle them easily. This paper feeder has the advantages of simple operation, low maintenance cost, stable and reliable performance, etc.

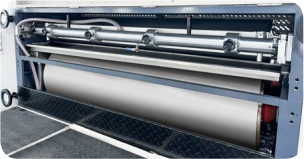

Coating System
o This machine is equipped with a gripper conveying system. The impression cylinder and the plate cylinder are pneumatically engaged and disengaged. It can automatically load and unload the cylinders. The plate installation space at the main machine is large, facilitating quick and convenient plate loading and unloading. The UV varnish tank is designed with a water heating system, which enables the UV varnish to maintain good flow out properties at any ambient temperature. The whole machine uses precision imported rolling bearings, which are easy to maintain and highly reliable.
o Coating system: Equipped with a high-precision ceramic anilox roller and chambered doctor blade system to ensure even and delicate coating, completely eliminating ink splattering and reducing production costs.
(No need for metering rubber rollers, avoiding production downtime caused by roller damage. The ceramic anilox roller with chambered doctor blade system keeps the varnish application area clean and tidy, preventing paper sticking and smudging.)
Drying System
o The UV drying equipment consists of three pull-out type UV mercury lamps, which can quickly cure the UV varnish and make it more convenient to replace the lamp tubes.
o The control system adopts the full-computer stepless curing technology. The power of the UV lamps is automatically matched with the machine speed, so as to achieve high efficiency and energy conservation.
o An automatic temperature control device is installed inside the lamp cover. If the temperature exceeds the value set by the system, the lamp group will be automatically turned off to avoid damaging the lamp cover due to overheating.
o The Teflon conveyor belt has an automatic deviation correction function. If the deviation exceeds the limit, the system will automatically activate the protection and stop the operation of the belt to prevent damage the belt.
o The system is equipped with an IR drying lamps, which is consist of 42 IR lamps and is controlled separately in two groups, and it is used for drying water-based consumables.
o Conveyor belt with vacuum system, which can ensure the high-speed and stable running of the paper.
o Safety: The curing section is equipped with a paper jam detecting device. If paper jams occur during production, the system will automatically activate the protection function, stop the paper feeding and curing systems to ensure production safety.
Delivery System
o The pneumatic flapping device is easy to adjust, ensuring smooth and neat paper collection. o It is equipped with cooling fans and air-conditioning cooling device is optional.
o The pneumatic slow down device can reduce the running speed of sheets on stacker.
o It is equipped with sheets counter, which can count the production quantity and can be manually reset. o The pneumatic sampling device makes the sample pick up operation safer and simpler.
Company Profile:
Superior:
A trading brand enterprise which is invested by industry and joint industry and trade.
ShangHai UPG International Industry & Trade Group Co., Ltd. is a professional trading company which is invested by UP Group's key branch enterprises together, the company has become the most active and influential brand in the printing and packaging machinery industry in China.
We own high efficiency, high quality, stable and professional trade working team.
In the long-term practice of trading, we foster and establish a multilingual, professional, high diathesis and qualification staff team, which form the biggest and most powerful trading enterprises in this industry. Among our working team, 97% obtain the associate degree and bachelor degree, 40% own intermediate level professional titles, master degree or above.
We adhere the philosophy that "over-value service, pioneering and pragmatic, and Win-win cooperation".
We start from innovation system, improve the institutional mechanism, gradually cultivating and forming a value pursuit, and enterprise culture which specialize in "Honest and trustworthy, Diligent and promising, Pursue excellence and efficiency, over-value service". We always ensure the quality of the products and service, establish long-term and stable relations of cooperation with domestic suppliers as well as our foreign customers for mutual benefits.
Superiority of abundant resource, matching into a line, high optionality.
We centred on printing machinery manufacturing and have established long term strategic collaborations with more than 50 cost-effective, high quality and reputation brand enterprises and factories, which cover printing and packaging, food and pharmaceutical packaging, printing consumables and rubber& plastic machinery, and form a multi-category, multispecies and multilevel integrated superiority and provide a convenient service channel for foreign customers.
Well planned, high input, extensive coverage exhibition publicity.
The huge investment of more than 20 international professional exhibitions and more than one billion sales amount per year make our company known overseas and be of high reputation in domestic and abroad market.
Strengthen channel building, service to global customers, multiple trading strategic pattern.
Through several years' effort, we have exported products to more than 80 countries (not only Asia but also Europe, Africa, South America, North America and Oceania) and have established long term strategic collaborations with distributors and sales channels in more than 40 countries and regions, which play an important role for open foreign market and maintain service terminal clients.
Our Customers:
Exhibitions:
Export Markets:
UP Group's products have been exported to more than 80 countries.
In Southeast Asia, its products cover Thailand, Indonesia, Singapore, Malaysia, Brunei, the Philippines, Japan, Korea, Vietnam, Cambodia, India, Sri Lanka, Nepal, Dubai, Kuwait, Saudi, Syria, Lebanon, Maldives, Bahrain, Jordan, Sudan, Mongolia, Myanmar, Pakistan, Iran, Turkey and Bangladesh.
In European, its products cover Australia, New Zealand, Britain, France, Germany, Italy, Spain, Portugal, Georgians, Slovakia Finland, Poland, the Czech Republic, Russia, Ukraine, Belarus, Kazakhstan, Uzbekistan, Sweden, Bosnia, Herzegovina and Albania
In Africa, its products cover South Africa, Kenya, Ethiopia, Egypt, Morocco, Algeria, Tunisia, Madagascar, Mauritius, Nigeria, Ivory Coast, Ghana, Mali, Liberia and Cameroon.
In America, its products cover The United States, Canada, Mexico, Panama, Costa Rica, Brazil, Argentina, Columbia, Bolivia, Uruguay, Paraguay, Chile, Peru, Ecuador and Honduras.
Among these regions, we have more than 46 stable distributors and partners for many years.
Packaging and Shipping:
Our Services:
Pre-sales Service
We provide all information and materials of our products to the valuable customers and partners so as to support their business and development. We also will give a preferential price for the first few machines, the samples for the printing, packaging and consumables are available, but the freight should be borne by the customers and partners.
In-sales Service
The delivery time of the ordinary equipment is generally 30-45 days after receipt of deposit. The delivery time of the special or large scale equipment is generally 60-90 days after receipt of the payment.
After-sales Service
The quality guarantee period of the product is 13 months after leaving the Chinese port. We can provide customers with free installation and training, but the customer is responsible for round-trip tickets, local meals, accommodation and engineer allowance.
If the product is damaged due to customer's incorrect handing, the customer should bear all the costs including the costs of spare parts and freight charges etc. During the warranty period, if it is damaged caused by our manufacturing failure, we will provide all repair or replacement free of charge.
Other Service
We can design special products according to customer's requirements on various aspects, including style, structure, performance, color etc. In addition, OEM cooperation is also welcome.
