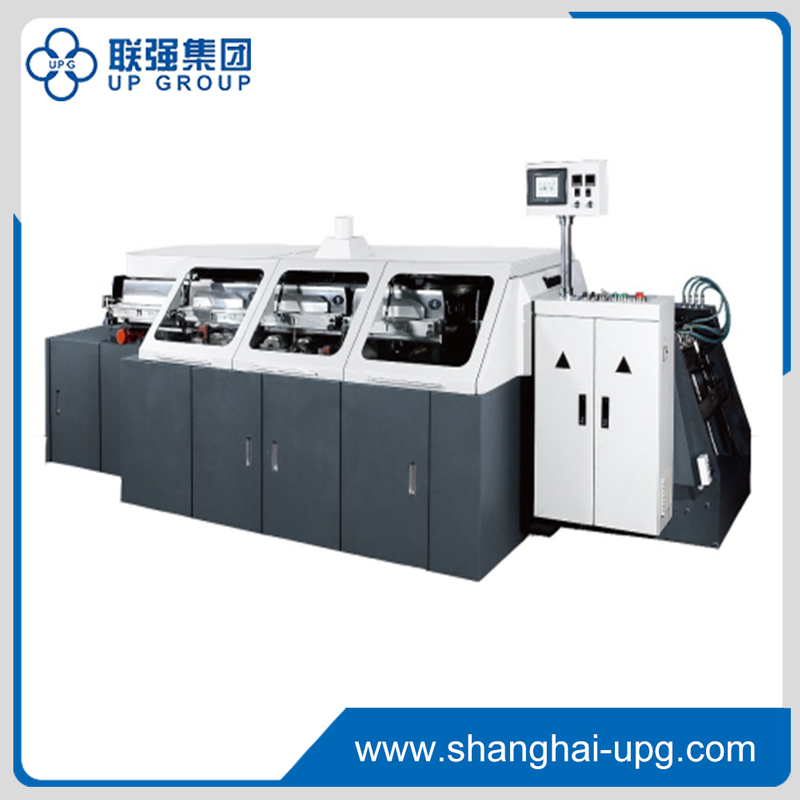

LQBT50/10D Elliptic Binding Machine

The binder adopts many advanced technologies like speed control by frequency variation, PLC, two closed loop temperature control, photoelectrical identification, automatic detection control and touch screen.

Quantity:


Inquire Add to Basket

Model: LQBT50/10D
Brand: UPG

1. The cover feeder adopts a vertical structure to ensure accurate and reliable cover supply. The embossing wheel is provided with the non-stop fine adjustment func-tion. The delivery mechanism adopts a horizontal mode for better protection of book back forming. This binder can used for either thread or perfect binding, so it' s an ideal device for perfect or thread bookbinding in various printing house and univer-sity printing offices.

2.The binder adopts many advanced technologies like speed control by frequency variation, PLC, two closed loop temperature control, photoelectrical identification, automatic detection control and touch screen. The whole transmission system adopts the fully-enclosed gear to ensure stable and reliable transmission. The back glue is provided with before/after glue stop function and the adjustment of milling back flute, glue pot and cover feeder is provided with digital display function.

Vertical type stacking structure
Covering adopts vertical type stacking structure, with the function of digital display for raising and lowering of the paper bench and the adjustment of covering manner.
Holding and striking mechanism
The holding and striking mechanism is controlled by several cams, ensuring ideal shaping effect, with binding thickness up to 2〜50mm.
Book-collecting mechanism
Horizontal book-falling of book-collecting mecha-nism better protects the shaping quality of book back; And the stacking mechanism has its stacking height ranging from 20〜100mm.
Back-gluing pot
Back-gluing pot has the glue-ending function, minimizing the glue threads.
Electricity
The electricity is designed according to international safety standards, with visualized and straightforward interface as well as easy operation; The interface has a failure display function easy to clean troubles and an automatic maintenance & prompt function, ensuring the normal running of the equipment.

Related Products

LQBW-580 Double Wire Binding and Punching Machine

LZ-480 Book Rotary Stacking machine

T-80 Automatic shrink wrapping machine

LQ-DR-30 Back Wrapping Machine

LQ-LRY1020 Flexo loose-leaf line

LQ-LJ930 Flexo receipt book production line

LQ-LY780 Ruling-wrapping notebook line

LQ-LY1020 Ruling-two lines wrapping notebook line

RG-270BE Intelligent Book Binder

LQ5500 Perfect Binding System

LQ7000 Perfect Binding System

DJ380-A Stacking machine

LZ480 Rotary stacking machine

SF728-L Automatic shrink wrapping machine

T-8025 Automatic shrink wrapping machine

T-120 High-speed shrink wrapping machine

SD310 book packing machine

ZY440-A(B) Automatic blocking machine

LQTS-200 Automatic PUR Binding Machine

LQBT50/5F PUR Ellipse Binding Machine

Model	LQBT50/10D
Maximum binding size	380×265mm(Single Unit) or 450×153mm
Minimum binding size	165×110mm(Double Unit)
Thickness of book binding	2-50mm
Maximum binding speed	4000 books/hour
Number of clamp	10
Total power consumption	13.5kw
Overall dimensions of machine	4900×1920×1490mm(L×W×H)
Total weight of machine	4500kg
