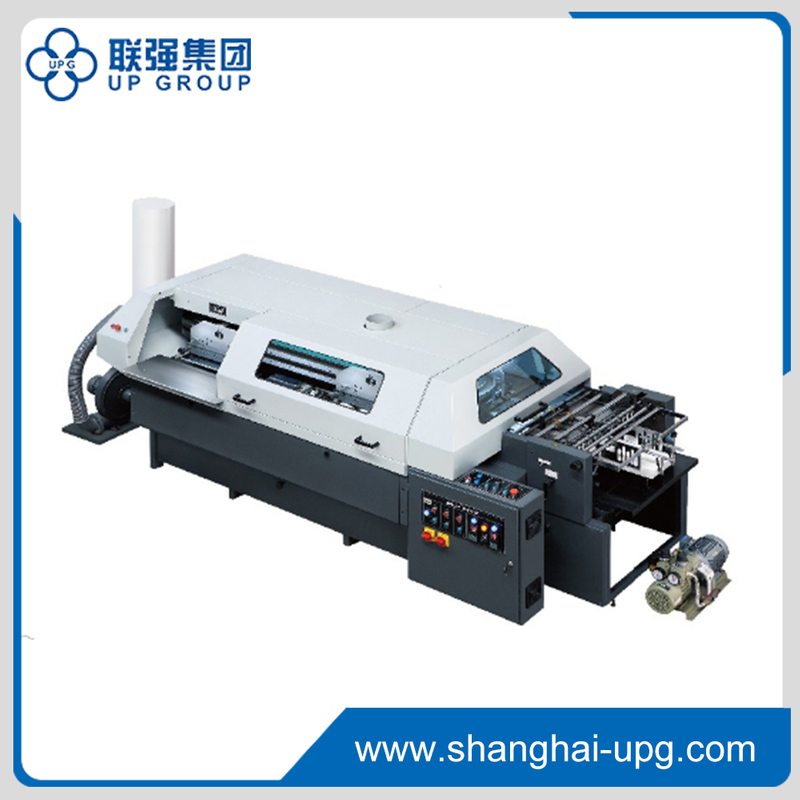

LQBT50/4G Ellipse Binding Machine

LQBT50/4D Ellipse Binding Machine is a kind of environmental mucus binder, and is transmittion by 4 book-clamp chains, which avoids toodbid transmission inertia of tradtion- al disc binder resulting in the gap among shafts.

Quantity:
  • LQBT50/4G
  • UPG
Heavy-duty type:
Major characteristics of double column- guided twin-cam upper-sealing mechanism
1.Strong wearing resistance
2. High precision
3.Great clamp force
4.Steady top down
5.lndeformable front and back clamp plates
At present, it is the most advanced one among the international similar machines, and the upper-sealing clamp mechanism has won several national patents.
TBT50/4D Ellipse Binding Machine is a kind of environmental mucus binder, and is transmittion by 4 book-clamp chains, which avoids toodbid transmission inertia of tradtion- al disc binder resulting in the gap among shafts.
When works, this machine adopts multi advanced techniques such as frequency speed-regulation control, PID temperature control, photoelectric rec-ognition control, and trouble inspe-ction-automati- cally control etc.. And high-dependability electric element and pneumatic element, which can en-hance the dependability greatly. It is convenient to operate and adjust, and is perfected by the attached paper scraps suction device and waste-gas exhaust. This machine not only uses thread mucus binding, but also no thread mucus binding, thus is the ideal equipment of various medium or small sized printing factories and print-ing factories of colleges in no thread mucus binding or thread mucus binding.
This machine is offered the book core by manpower, and au-tomatically finishes 10 procedures below:
1.Milling back;                                          6.Cover impressing
2.Opening groove;                                   7.Cover packing;
3.Back mucus coating;                            8.Finshed-product output
4.Side mucus coating;                             9.Book spine pressing;
5.Cover and book core compossing       10.Cooling, till final nice products
Binding size MAX:450*300mm MIN:150*105mm
Binding thickness 2-50mm
Binding speed MAX:2000books/hour
Power required 12KW
Weight 2100KG
Dimensions 3350*1330*1250mm
