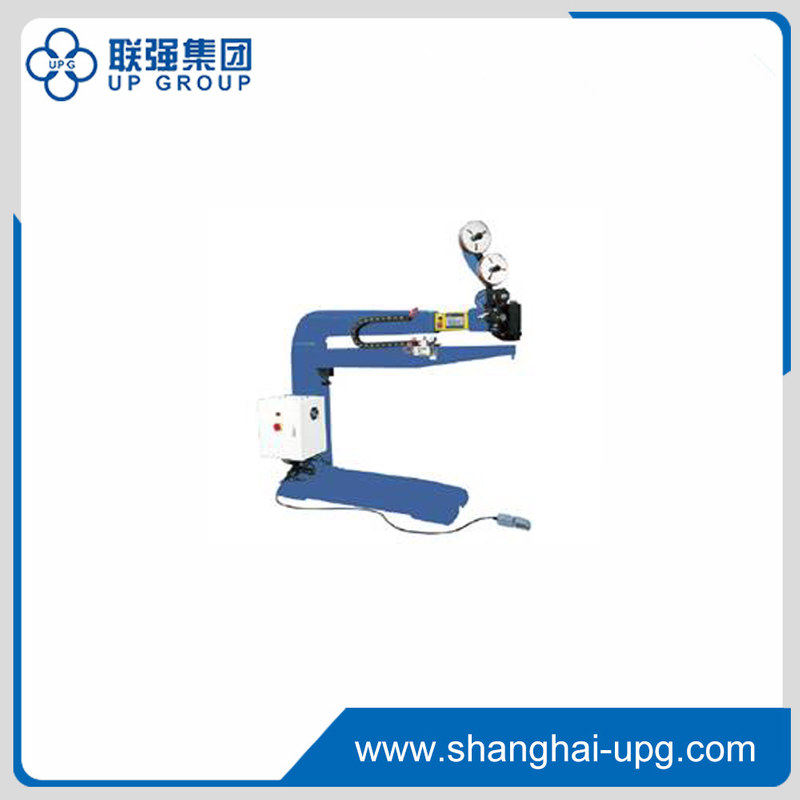

LQFM-SF1200 TAIWAN DUAL-SERVO STITCHER

Quantity:
  • LQFM-SF1200
  • UPG
Specifications
Type:
Other

1.Performance of the machine:
1)The biggest advantage of dual servo foot nail box machine:the touch screen adjusting nail distance and speed,automatic paper pushing nail,nail without skilled craftsmen,but also solve the pressing because carton grooving caused by wrong carton forming problem(scissors mouth or size boundary problem).
2)It can nail single/double nails,once completed,can be suitable for different customer requirements of different kinds of nail.
3)Only by adjusting the adjusting nail carton distance on a touch screen.a minutes,time can be saved,the operation is simple and convenient.Nail distance can reach 10-150MM.
4)It can nail single/double sheet box,a dual-purpose machine.
5)Machine can reduce the labor intensity of workers,greatly improve the work efficiency and enthusiasm of employees.



2.Configuration:
1)Taiwan Taida double servo drive,PLC and touch screen.
2)HONGKONG CCM synchronous belt guide module.
3)The whole group of nail head Taiwan Fengbai import,all use of Japanese steel production.
4)The Japanese tungsten steel for the bottom die,blade wear.
5)Bearing using Japan’s five largest Agency(such as NSK....)

3.Specifications:

Model

LQFM-SF1200

LQFM-SF1500

LQFM-SF1800

Speed

450nail/min

450nail/min

450nail/min

Power

1.5kw

1.5kw

2kw

Model

18#

18#

18#

Nail shape

Helical screw

Helical screw

Helical screw

Machine size

1550*550*1950mm

1850*550*1950mm

2150*550*1950mm

G.W

420kg

450kg

500kg
