CA-01
UPG
Air cooled chiller is widely used in plastic industry, electrons, plating, chemical industry, ultrasonic wave cooling, printing and others. This kind of air cooled industrial chillers can precisely control the temperature requested during industrial processing, and also it greatly improved the production efficiency and quality, as well as reducing production time. air cooled industrial chiller doesn’t require cooling tower, which is easy to install and move.
Industrial air chiller system is your best partner for industry process cooling and it features easy operation, reasonable design, high quality, high efficiency, energy-saving and environmental. Further more, both air cooled screw type and air cooled scroll type are available at any cooling capacity.
Normally a wide range of standard air cooled chiller can be found in following specification tables, but standard chiller systems may not always fit your unique cooling requirements. So our specialist sales can suggest units that are customized to meet your unique needs.

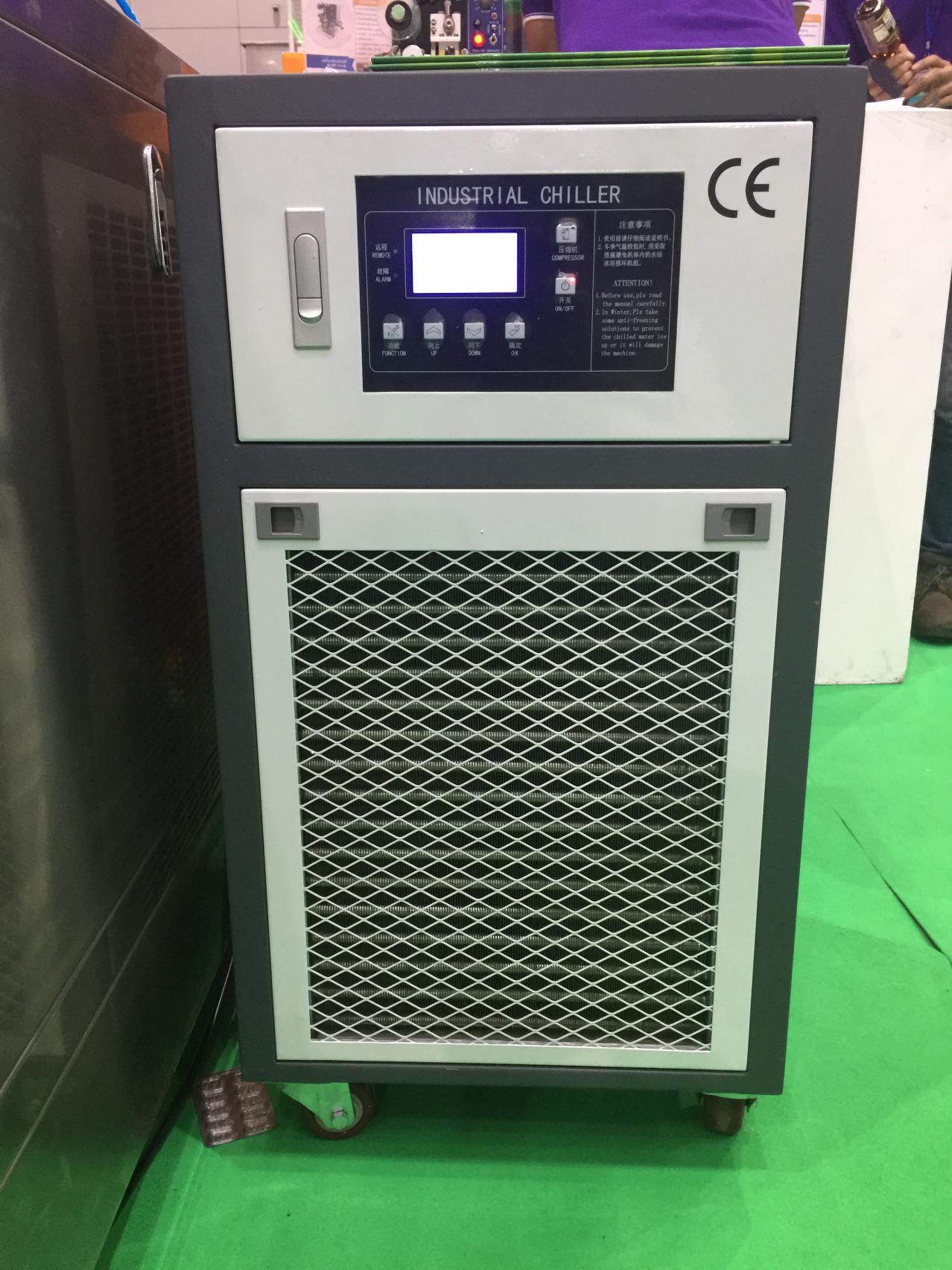

Model/Name | CA-01 Industrial Chiller |
Compressor Power | 0.95 kw |
Norminal Refrigerating Capacity | 2451 kcal/h 2.85 kw |
Total Input Power | 1.22 kw |
Compressor Type and Power | Hermetic Rotating/0.88 kw |
Condenser Type | High efficient finned cooper tube+Low noise outer rotor fan |
Cooling Air Volume | 1000m3/h |
Evaporator Type | Water tank with coil(shell and tube) |
Chilled Fluid Flow | 0.49m3/h |
Water Tank Volume | 20 L |
Inlet and Outlet Pipe Diameter | 1/2” |
Pump Power and head | 0.25 kw/20 m |
Refrigerants Type and Control Mode | R22/Capillary |
Power Supply | 220V/50HZ/Single phase |
Net weight | 66 kg |
Overall Dimensions | L550*W440*H750mm |
Safety Protection | Compressor overheating protection Overcurrent protection High and low pressure protection Overtemperature protection Flow switch protection Phase sequence/Phase loss protection Exhaust overheating protection Anti freezing protection |
Note: 1. Norimal cooling capacity calculated is according to: inlet/outlet chilled fluid temperature: 12/7℃. Inlet/outlet cooling air temperature: 30/35℃. 2. Working condition: the temperature range of chilled fluid is from 5-35℃. Temperature difference between inlet and outlet chilled fluid is from 3-8℃. It is better to run the chiller while the ambient temperature at or below 35℃. | |
