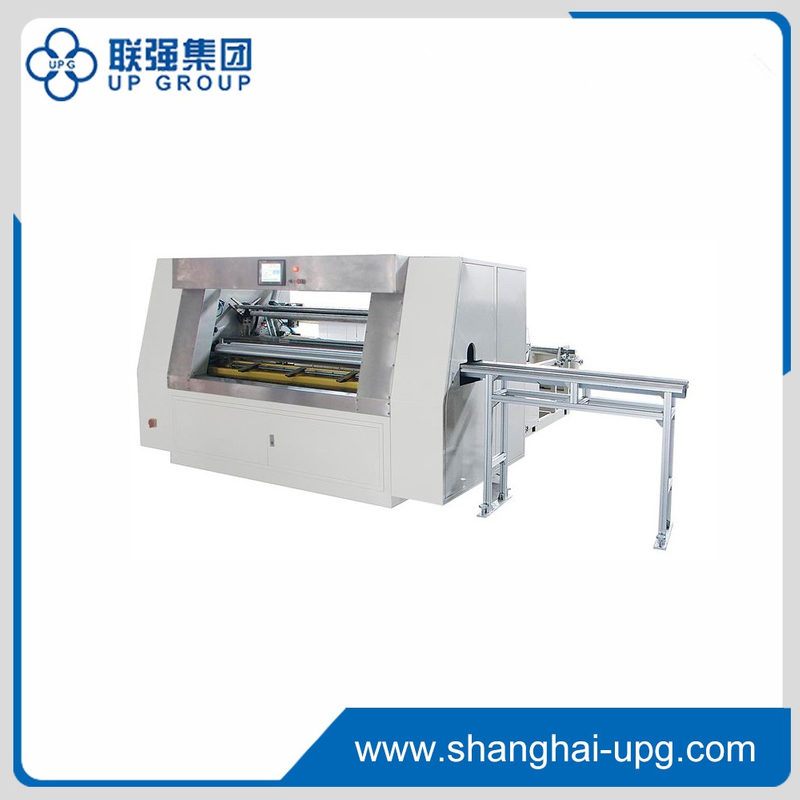

LQ-150I
UPG
The machine production speed is higher. This machine can produce canister type wet wipe. The production size is adjusted. The machine needs another wetting system to add liquid on the wipe roll. The parts of machine which is touched the wipes will be made by stainless steel. The function of machine is steady. Just need one operator to take the finished wet roll tissue to pack them.
The machine production speed is higher. This machine can produce canister type wet wipe. The production size is adjusted. The machine needs another wetting system to add liquid on the wipe roll. The parts of machine which is touched the wipes will be made by stainless steel. The function of machine is steady. Just need one operator to take the finished wet roll tissue to pack them.
Max Raw Material Width | 1400mm |
Max Rewinding Speed | 0-90m/minute |
Max Size of Parent Roll | 1200x1400 (Φ x W) mm |
Suitable Raw Material | spun-lace non-woven |
Specification of Raw Material | 20~75g/m2 |
Size of Single Sheet Tissue | width and length are adjustable |
Finish Roll Dia | 90-250 mm |
Max Size of Tissue Roll (mm) | 120 x (width: adjustable) (Φ*Width) |
Punching Length | 120~200mm (though change chain wheel) |
Control System | PLC control system, color touching screen |
Net Weight of Machine | Approx. 2000KG |
Power Supply | 380V, 50HZ |
Power | 8.5 KW |
Main Machine Size | 4000 x 2540 x 1600 (L x W x H) |
Option | Three meters of conveying shelf |
Max Raw Material Width | 1400mm |
Max Rewinding Speed | 0-90m/minute |
Max Size of Parent Roll | 1200x1400 (Φ x W) mm |
Suitable Raw Material | spun-lace non-woven |
Specification of Raw Material | 20~75g/m2 |
Size of Single Sheet Tissue | width and length are adjustable |
Finish Roll Dia | 90-250 mm |
Max Size of Tissue Roll (mm) | 120 x (width: adjustable) (Φ*Width) |
Punching Length | 120~200mm (though change chain wheel) |
Control System | PLC control system, color touching screen |
Net Weight of Machine | Approx. 2000KG |
Power Supply | 380V, 50HZ |
Power | 8.5 KW |
Main Machine Size | 4000 x 2540 x 1600 (L x W x H) |
Option | Three meters of conveying shelf |
